Docking Cart Setup
11-36 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Mounting Procedure

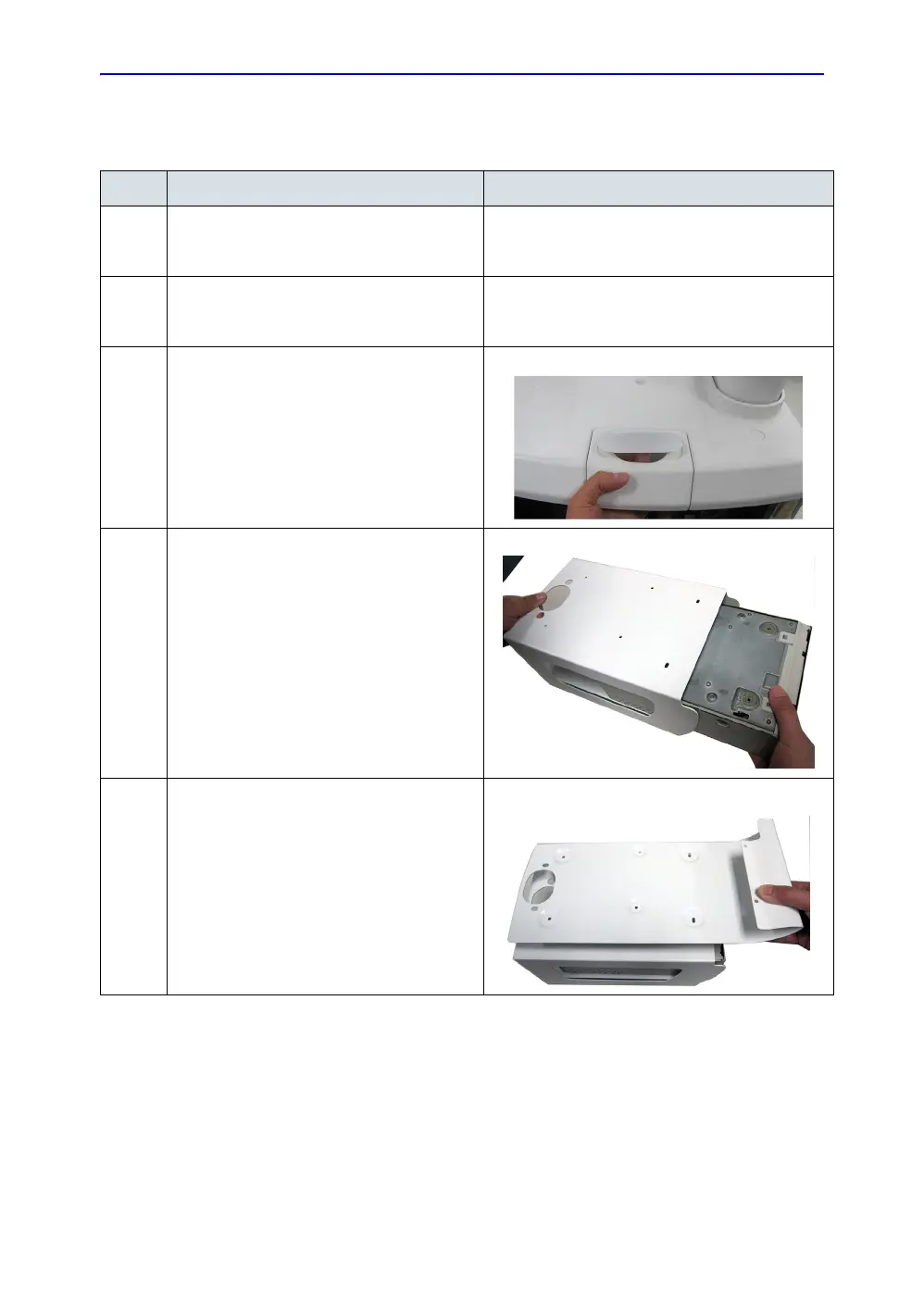

Table 11-14: Mounting Procedure of Top Support DVD/Printer Shelf Assy
No. Step Corresponding Graphic
1. Remove the rear panel. See ‘Rear Panel
Assy (Part No. 5422978)’ on page 12-8 for
more information.
2. Remove Storage Rack. See ‘Storage Rack
(Part No. 5219976-2)’ on page 12-7 for more
information.
3. Remove the cover of the Monitor Support
Space Cap.
4. Turn over the Top DVD/Print Shelf. Turn over
B/W Printer and push it into the Top DVD/
Print Shelf.
5. Put the Support DVD/Print Shelf above the
Top DVD/Print Shelf with the roll upwards.
To Next Page
