Docking Cart Servicing
12-6 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Removal Procedure
Mounting Procedure
Install the new parts in the reverse order of removal.
See ‘Install 3-Probe Port to Docking Cart’ on page 11-29 for
more information.

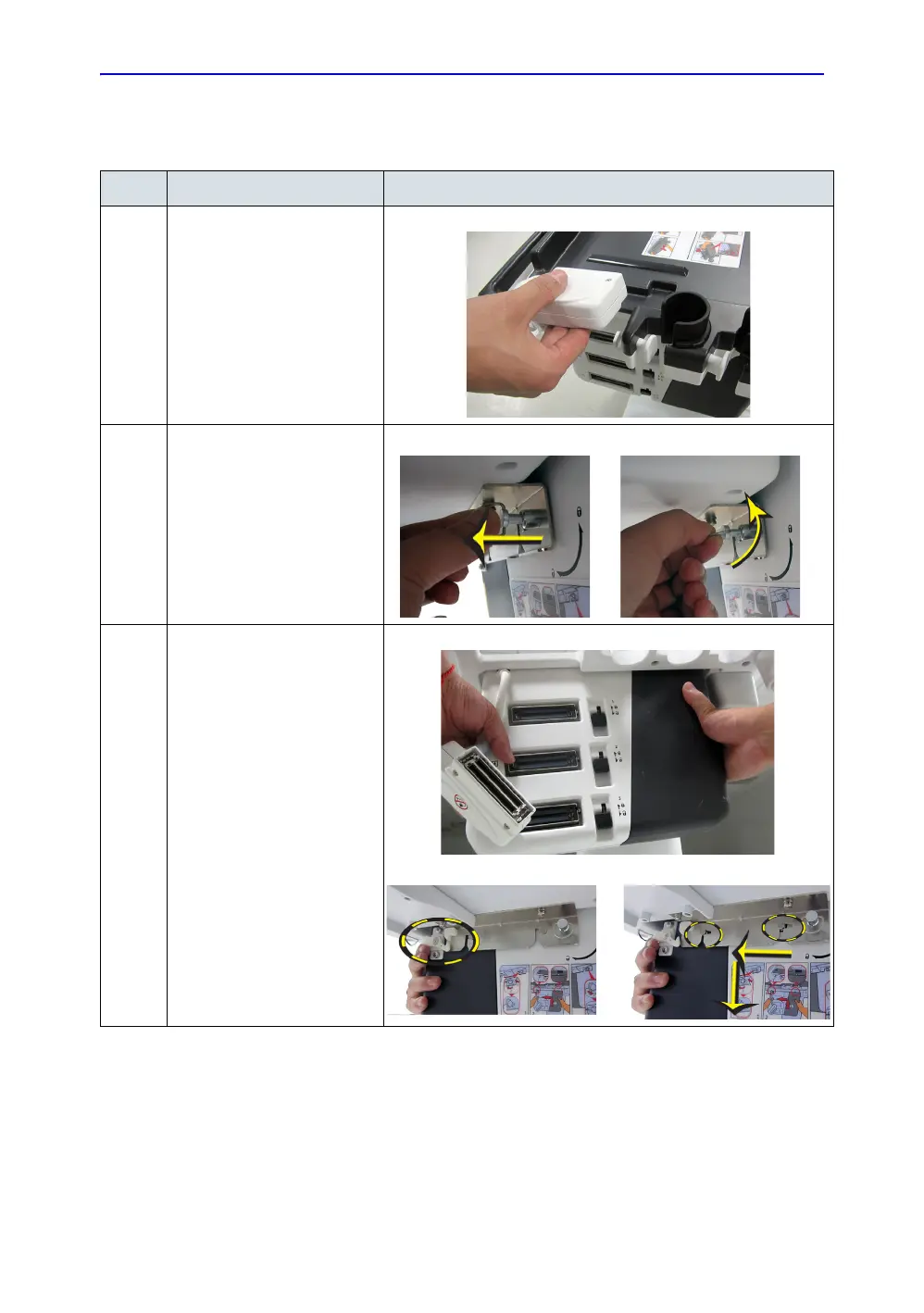

Table 12-1: Removal Procedure for 3-Probe Port Assy
No. Steps Corresponding Graphic
1. Disconnect the probe
connector
2. Pull out the lock and rotate
the lock 90° clockwise.
3. Hold the 3-Probe Port with
both hands, meanwhile use
one finger of the right hand to
push up the lock on 3-Probe
Port and move the 3-Probe
Port to the right, then remove
the 3-Probe Port.
The two screws on the
3-Probe Port are released
from the bracket.
Take down the 3-Probe Port.
To Next Page
