MDS 05-4846A01, Rev. D SD Series Technical Manual 3
2.0 PRODUCT DESCRIPTION
The SD Transceiver is a software-configurable, industrial radio for use
in licensed data acquisition networks. It may be interfaced with a variety
of data control equipment including remote terminal units (RTUs), pro-
grammable logic controllers (PLCs), flow computers, and similar
devices. Data interface connections may be made for both serial
(RS-232/RS-485) and Ethernet protocols. It is designed for use with
both polled networks and report-by-exception (push) systems.
The radio employs digital signal processing (DSP) technology and a
fully digital transmit and receive IF chain to provide robust communica-
tions even under adverse conditions. DSP also helps eliminate the
effects of component variations or temperature changes, resulting in
optimized performance at all times.
2.1 Front Panel Connectors and Indicators
Figure 2 shows the transceiver’s front panel connectors and indicators.
These items are referenced in the installation steps and in various other
locations in the manual. The transceiver’s LED functions are described
in Table 10 on Page 30.
Invisible place holder

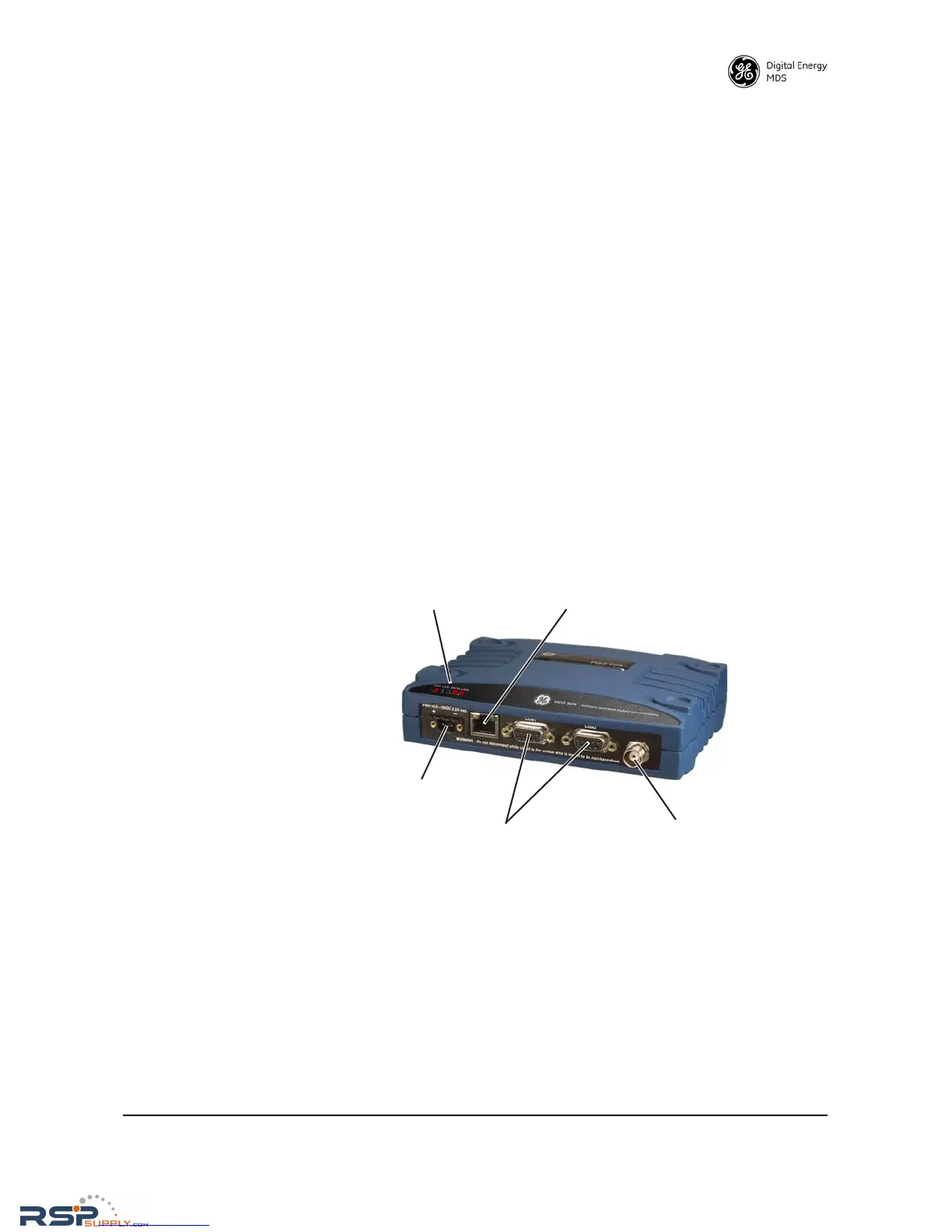

Figure 2. Front Panel Connectors & Indicators
