MDS 05-4846A01, Rev. D SD Series Technical Manual 17
Invisible place holder

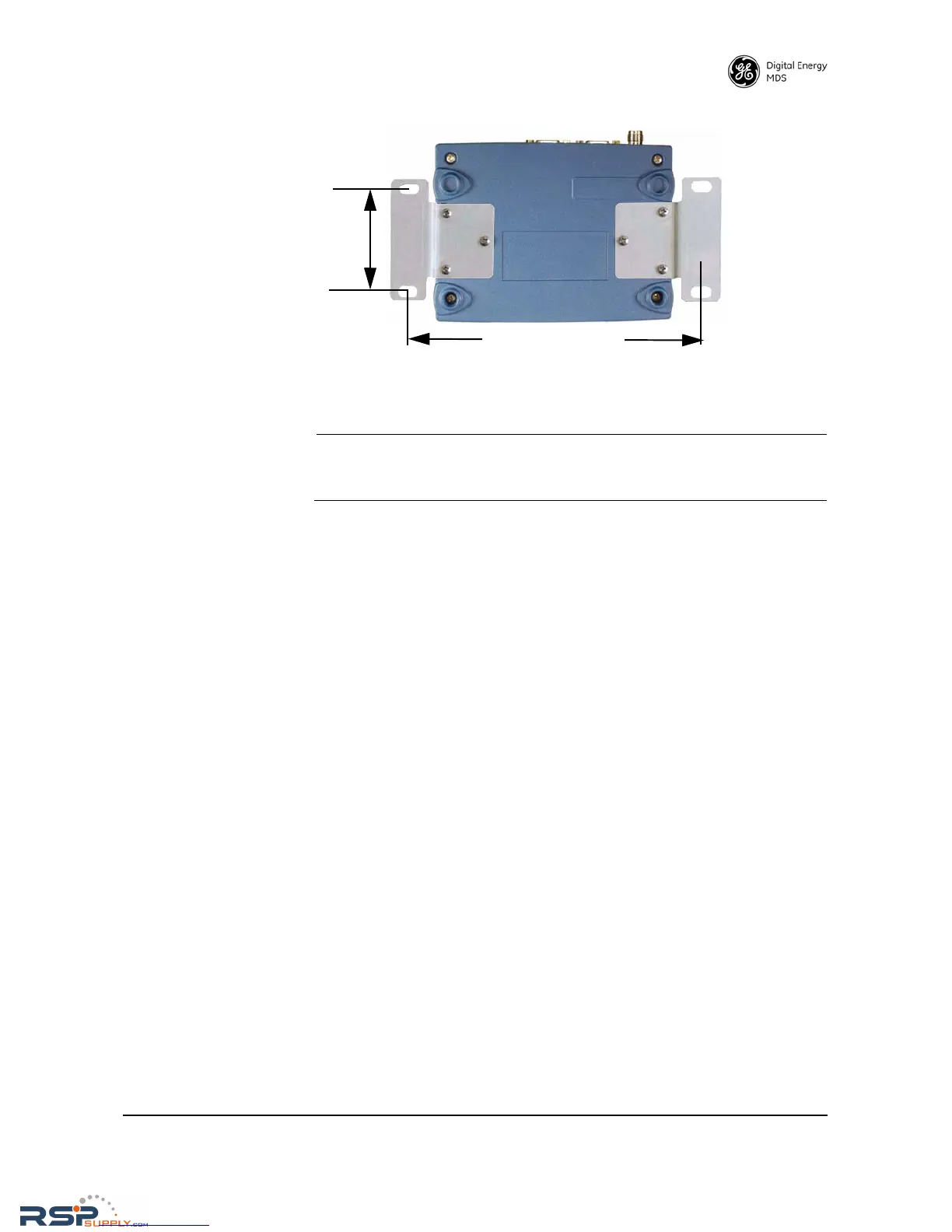

Figure 12. Mounting Bracket Dimensions
NOTE: To prevent moisture from entering the radio, do not mount the case
with the cable connectors pointing up. Also, dress all cables to
prevent moisture from running along the cables and into the radio.
Optional DIN Rail Mounting
The unit may be mounted with an optional 35 mm DIN Rail Mounting
Bracket Kit (Part No. 03-4125A04). Equipment cabinets and racks of
modern design often employ this type of mounting. Once the DIN
bracket is attached to the radio, it allows for quick installation and
removal of the radio from its mounting rail without the need for tools.
The DIN Rail bracket attaches to the unit’s case as shown in Figure 13.
The entire assembly then attaches to the mounting rail.
