MDS 05-4846A01, Rev. D SD Series Technical Manual 61
To use the Spectrum Graph, you must first specify a center frequency
and a span frequency. The center frequency is the frequency that you
wish the spectrum display to be centered on. The span frequency defines
the width of the overall spectrum to be examined.
• Center Frequency—The frequency (in MHz) that the graph will be
centered on.
• Span Frequency—Width (in kHz) of the total spectrum to be exam-
ined.

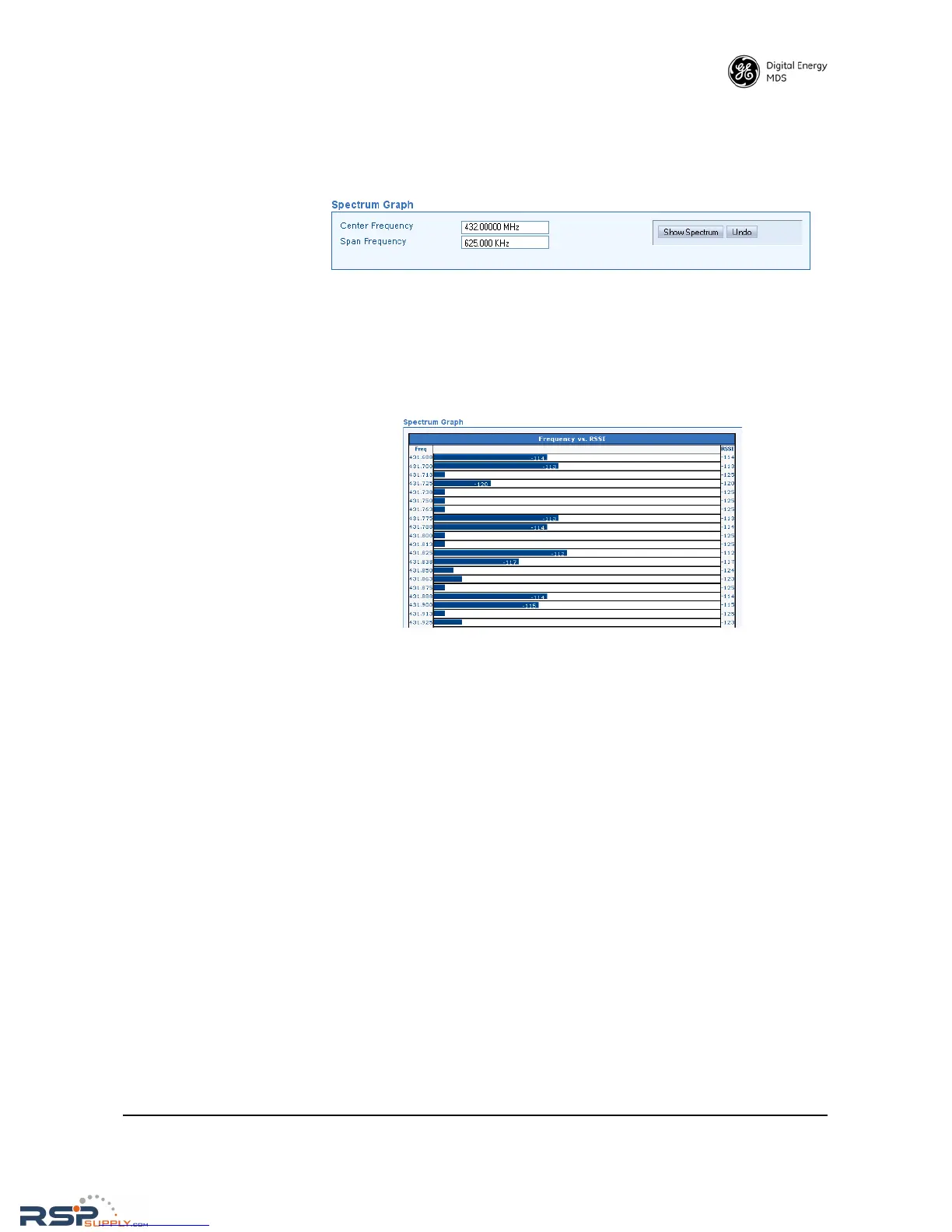

A sample spectrum graph from the transceiver is shown below.
Example Spectrum Graph
