4-20 MIB High Impedance Bus Differntial Relay GEK-106426B
4.6 COMMUNICATION 4 COMMUNICATIONS
4
Once the connection is established, when the user accesses any Setpoint or Operations, or Actual – Event Recorder
i
menu entries for the first time, the program will ask the relay password. The following window will appear:

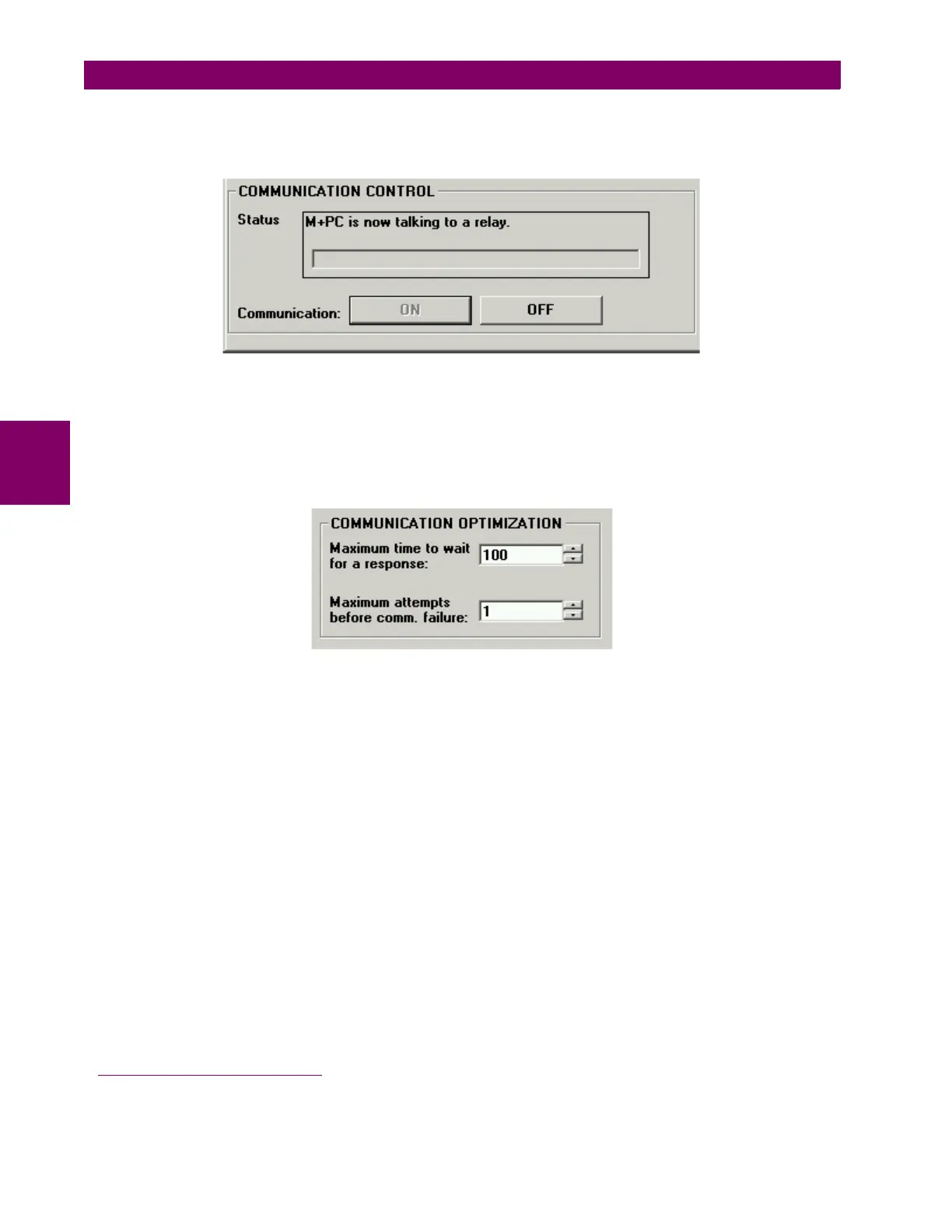

Figure 4–22: COMMUNICATION CONTROL – COMMUNICATING
4.6.1.3 COMMUNICATION OPTIMIZATION
COMMUNICATIONS OPTIMIZATION box allows the user to enter values to control device response to communication
attempts. Changing these parameters can improve communication, although it is recommended not to make changes to
the default values if it is not required.
Figure 4–23: COMMUNICATION OPTIMIZATION
i. i.e., the first time a writing operation is performed against the relay during the current communication
