IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
6-4 Section 6-3 - Cockpit (Monitor) Adjustments
PRELIMINARY
6-4-3 Pan (Swivel) Resistance Adjustments:
1.) Tighten/Release the 8mm socket at the back of ..
NOTE: Ensure there is no pan (swivel) autonomic movement.
6-4-4 Arm Vertical Movement Adjustments:
1.) Move the cockpit to one side, until the Alen screw inside the arm is accessible.
2.) Using a 5mm Alen key tighten/release the Alen screw.

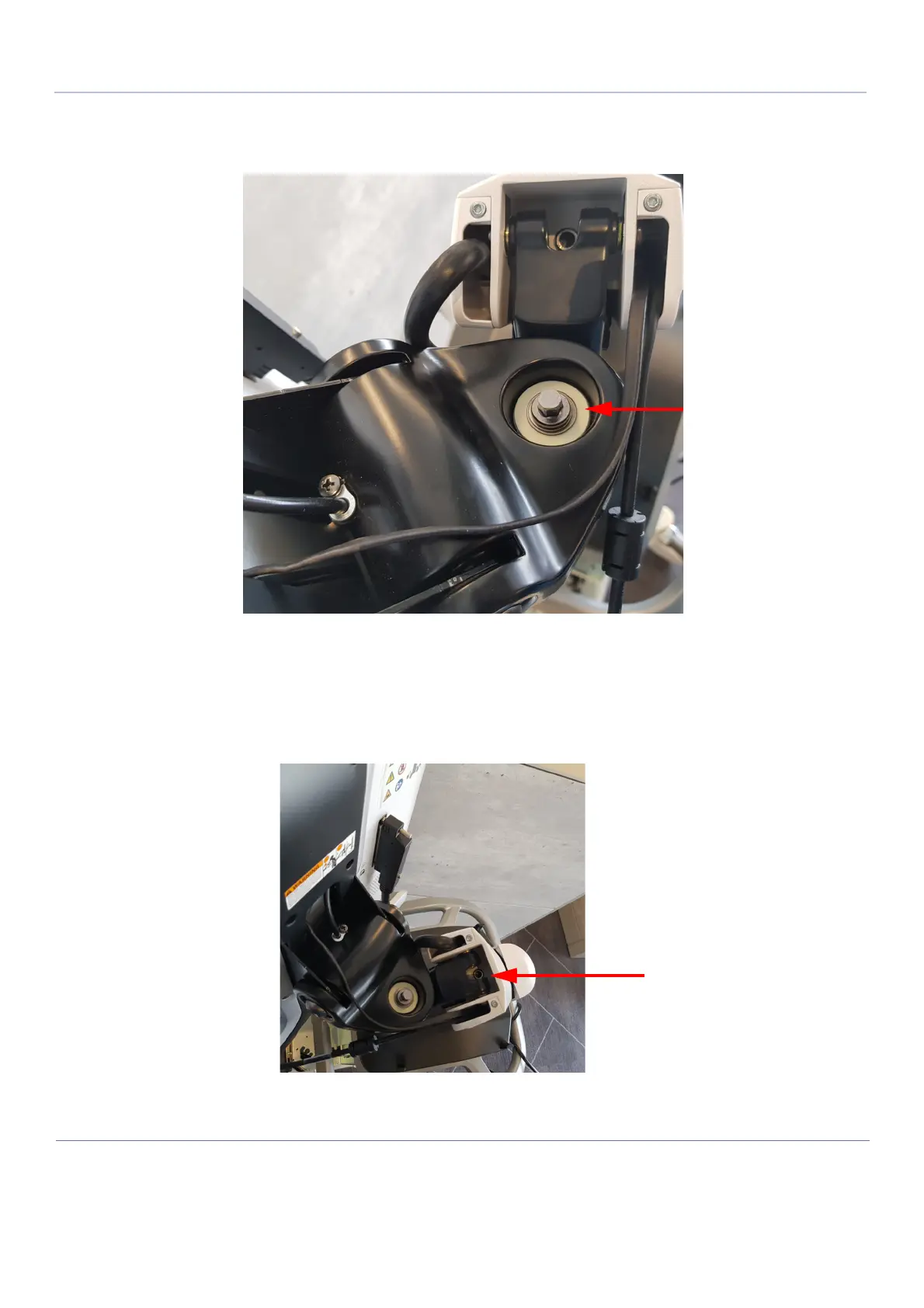

Figure 6-24 Pan Movement Adjustment
Figure 6-25 Arm Vertical Movement Adjustment
