Chapter 8 - Replacement Procedures 8-69
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-5-2 T-CFE Release Arm Replacement Procedure
8-5-2-1 Tools
Appropriate Phillips screwdriver.
8-5-2-2 Time Required
15 minutes
8-5-2-3 Preparation
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-5-2-4 CFE Board Release Arm Removal Procedure
The lever-shaped CFE Release Arm is located on the PSB Board.
1.) Remove all accessories.
2.) Remove the following covers: RS Probe Cover, Lower Front eTower, Left side eTower, and Right
Side eTower.
3) Remove the T-CFE Module:
4.) Unscrew the two lever holding screws and remove the CFE Release Arm (Lever) from the PSB
Board.

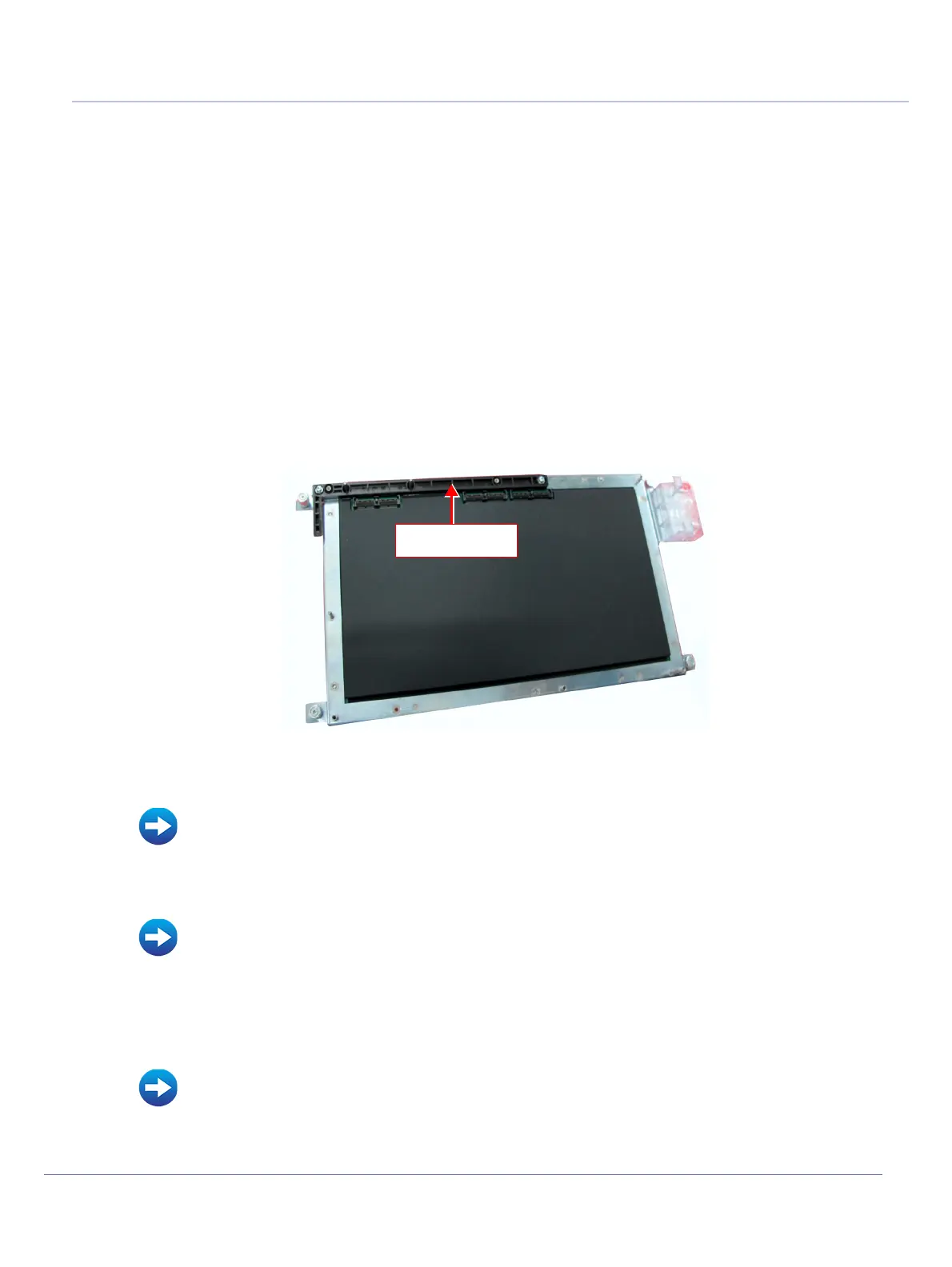

Figure 8-56 Location of CFE Release Arm
• Accessories - Replacement Procedures
• RS Probe Cover Removal Procedure
• Lower Front eTower Cover Removal Procedure
• Left Side eTower Cover Removal Procedure
• Right Side eTower Cover Removal Procedure
• T-CFE Module Removal Procedure
