GE Venue R2

10-18 Section 10-3 - Why Do Maintenance?
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
10-6-4 Grounding Continuity
Measure the resistance from the third pin of the attachment plug to the exposed metal parts of the case.
The ground wire resistance should be less than 0.2 ohms. Reference the procedure in the IEC60601-1.
DANGER ELECTRIC SHOCK HAZARD!
THE PATIENT OR OPERATOR MUST NOT COME INTO CONTACT WITH THE
EQUIPMENT DURING THIS TEST.

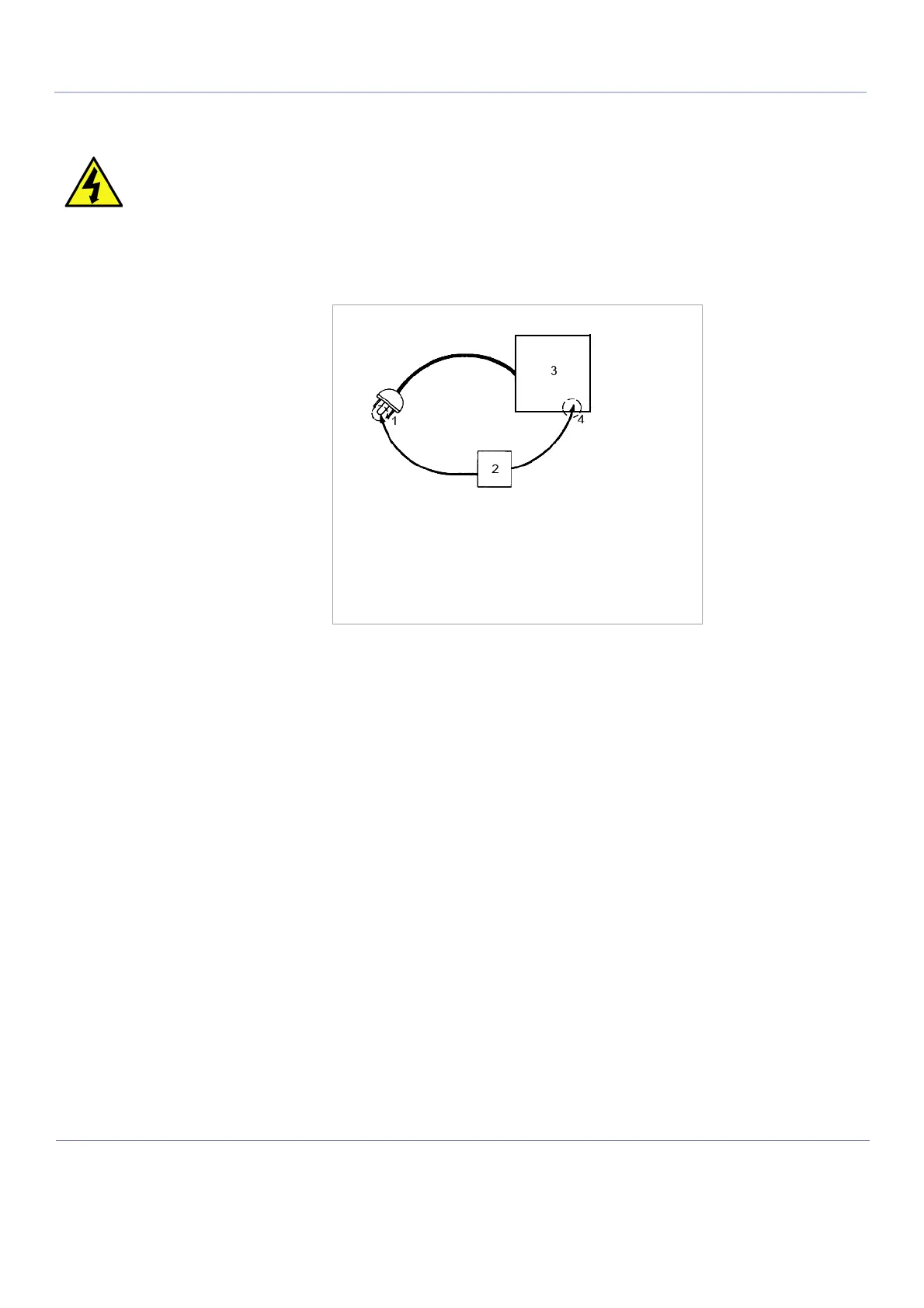

Figure 10-264 Ground Continuity Test
1. GROUND PIN
2. OHMMETER
3. Venue™
4. ACCESSIBLE METAL PART:
• MONITOR HOUSING
• REAR PANEL CONNECTOR
• ANY CASTER/WHEEL SUPPORT
