Chapter 8 - Replacement Procedures 8-7
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-3-2 Lower Front eTower Cover Replacement Procedure
8-3-2-1 Tools
None
8-3-2-2 Time Required
5 min
8-3-2-3 Preparations
Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
8-3-2-4 Lower Front eTower Cover Removal Procedure
1) Gripping the recess at the center of the cover, pull the lower front eTower cover out towards you to
remove it from the system.
8-3-2-5 Lower Front eTower Cover Installation Procedure
1.) Holding the recess with one hand, push the top of the cover upwards and inwards with the other
hand, until clicks into place.
Refer to Table 9-8 on page 9-7.

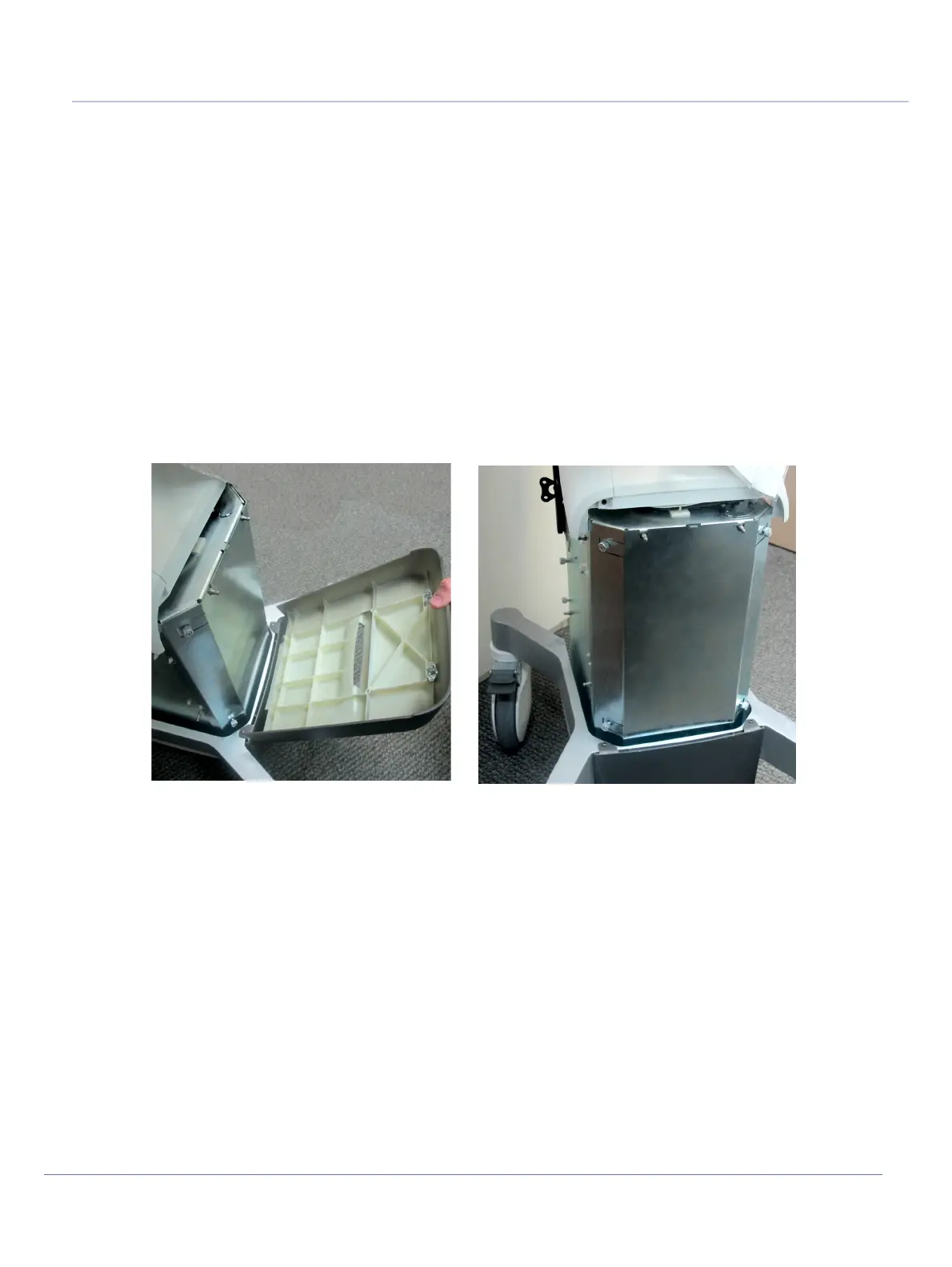

Figure 8-2 Removing the Lower Front eTower
