Chapter 6 - Service Adjustments 6-5
PRELIMINARY
NOTE: Ensure there is no arm autonomic movement.
6-4-5 Arm Rotate Resistance Adjustments:
1.) At the back of the system, release the nut under the riser cover,
2.) Tighten or release the 4mm Allen screw to adjust the required arm movement resistance
NOTE: Ensure there is no arm autonomic movement.

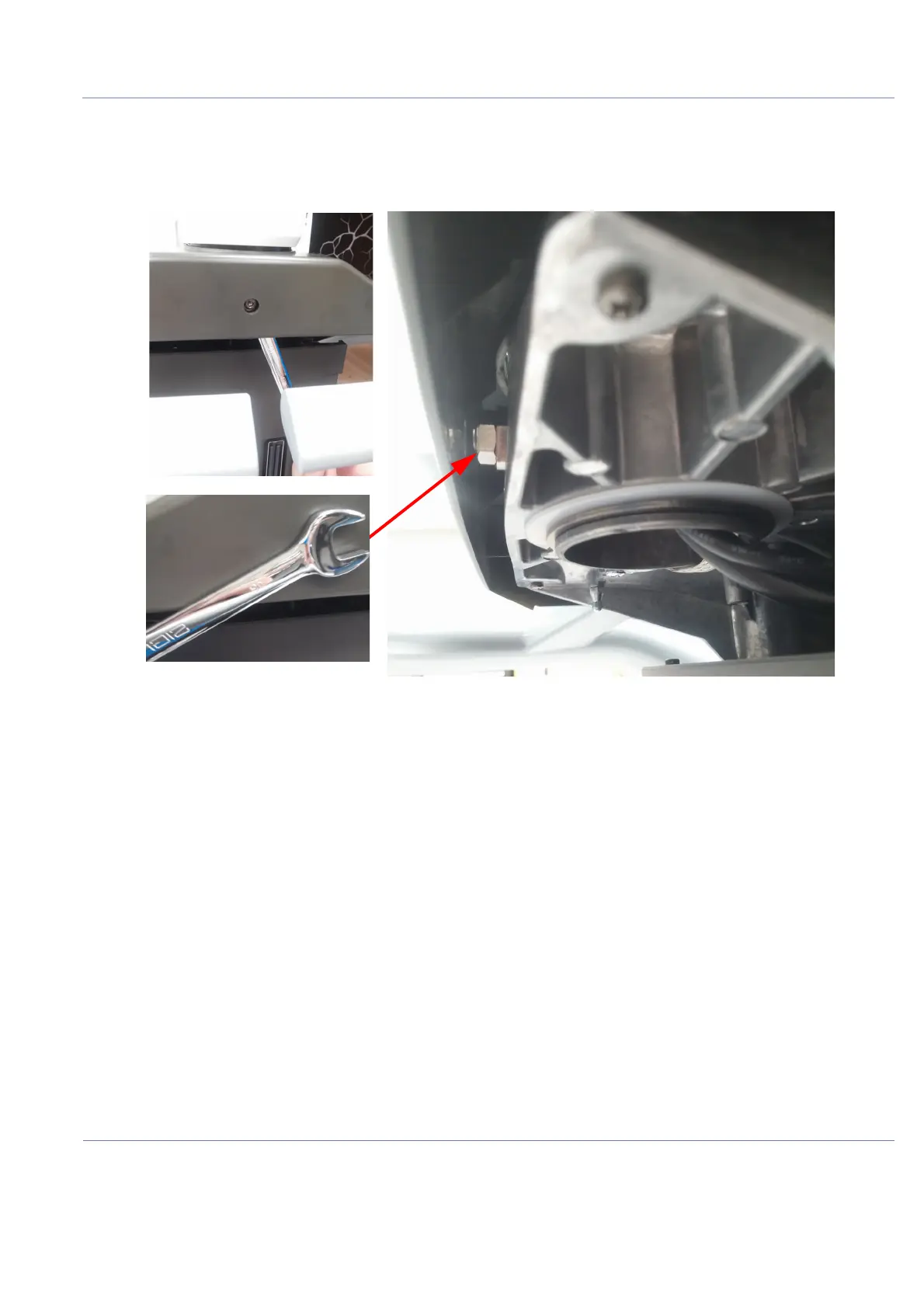

Figure 6-26 Arm Rotate Movement Adjustment
