Chapter 8 - Replacement Procedures 8-157
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-7-11 MPB TO T-FEPS - FRU Cable Replacement Procedure
8-7-11-1 Tools
• Appropriate Phillips screwdriver
• Flat-head screwdriver
8-7-11-2 Time Required
15 min
8-7-11-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-7-11-4 MPB TO T-FEPS Cable Removal Procedure
1.) Perform MPB removal procedure.
2.) Disconnect the following cables connected to BE module:
• MPB to BIB
• MPB to BEP (white)
• Cockpit to BEP split cable (green and black)
• Printer cable (yellow)
• MPB Module Removal Procedure

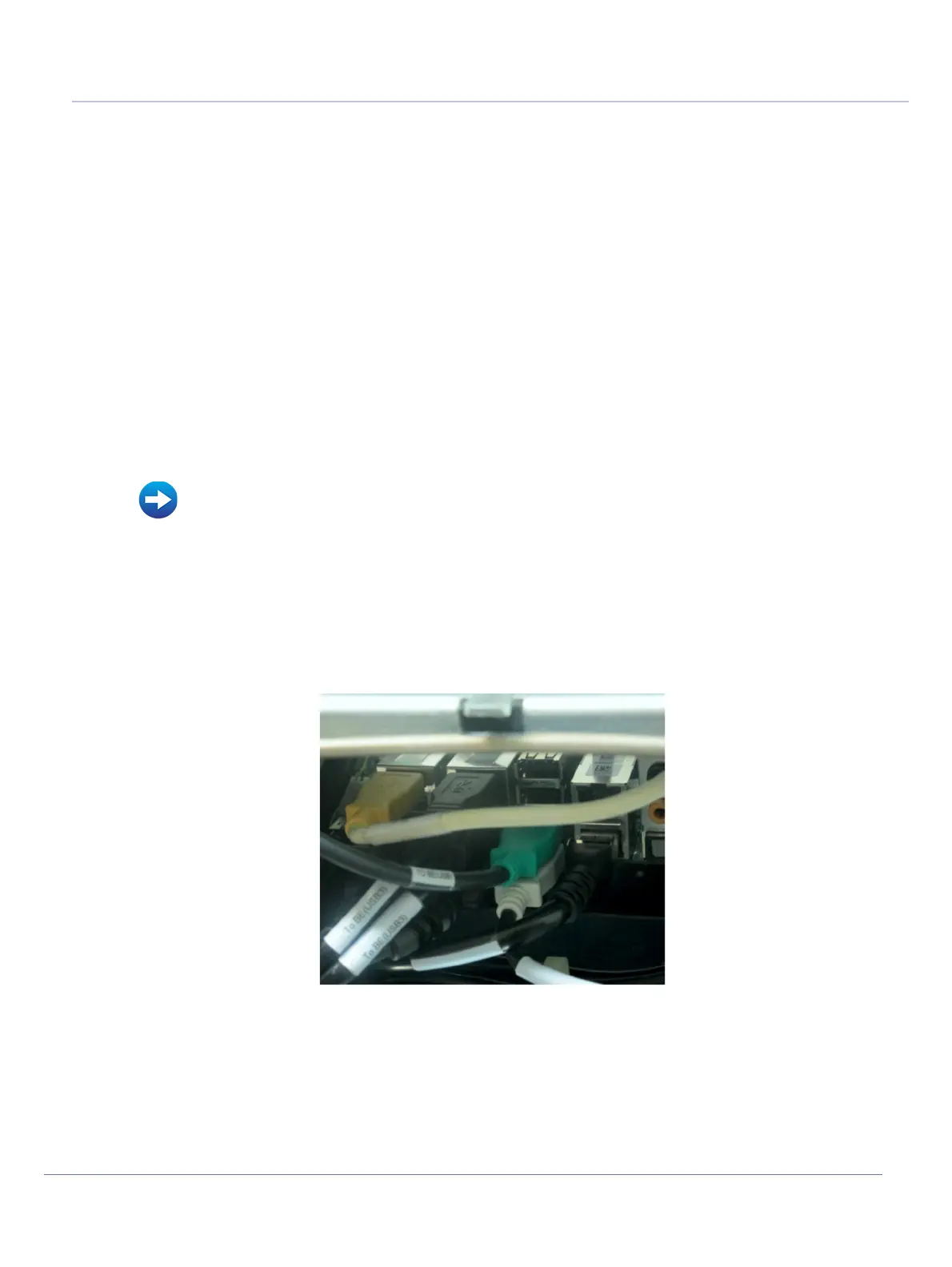

Figure 8-164 Disconnecting Cables Connected to BE Module
To Next Page
