Chapter 8 - Replacement Procedures 8-177
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-8-4 ECG Installation Procedure for Systems with Printer Installed
8-8-4-1 Tools
Appropriate Phillips screwdriver
8-8-4-2 Time Required
15 min
8-8-4-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-8-4-4 ECG Installation
1.) Remove the following covers: Lower Front eTower, Upper Front eTower, and MPB Front Metal
Door.
2.) Disconnect printer USB and Power cables.
Refer to Table 9-20 on page 9-19.
• Lower Front eTower Cover Removal Procedure
• Upper eTower Front Cover Removal Procedure
• MPB Front Metal Door Removal Procedure

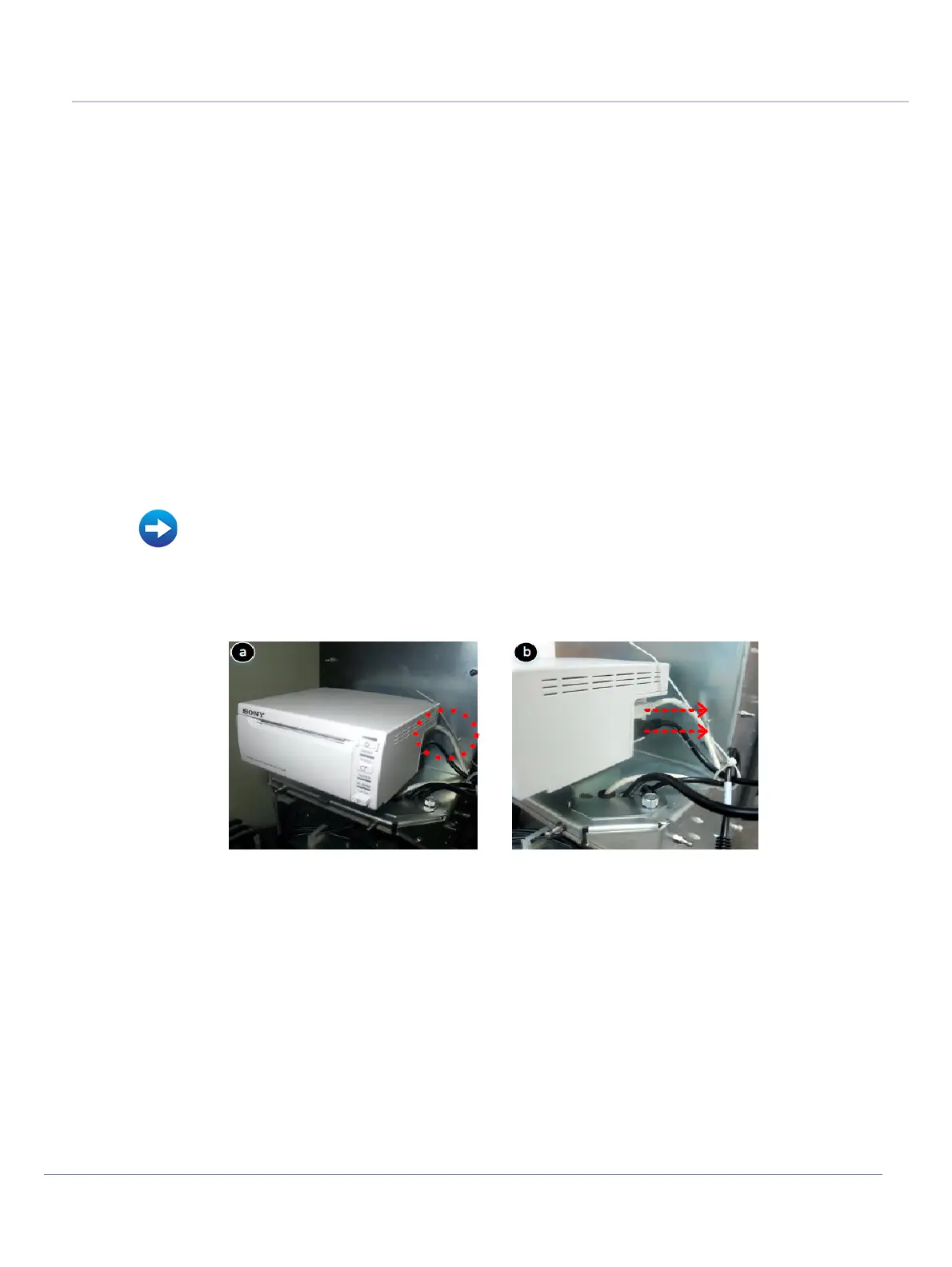

Figure 8-193 Disconnecting Printer Cables
To Next Page
