8-7-8 MPB to BIB Control Cable Replacement Procedure
8-7-8-1 Tools
Appropriate Phillips screwdriver.
8-7-8-2 Time Required
10 min
8-7-8-3 Preparations
1.) Shut down the Venue™ ultrasound unit, as described in Power Shut Down .
2.) Make sure the On/Off power switch is set to Off.
3.) Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-7-8-4 MPB to BIB Control Cable Removal Procedure
1.) Remove all accessories.
2.) Remove the following covers: Lower Front eTower, Left side eTower, and Right Side eTower.
3) Remove MPB Front Metal Door.
4.) Remove the MPB module.
5.) Disconnect the cable from the BIB board.
Refer to Table 9-14 on page 9-14.
• Accessories - Replacement Procedures
• Lower Front eTower Cover Removal Procedure
• Left Side eTower Cover Removal Procedure
• Right Side eTower Cover Removal Procedure
• MPB Front Metal Door Removal Procedure
• MPB Module Removal Procedure

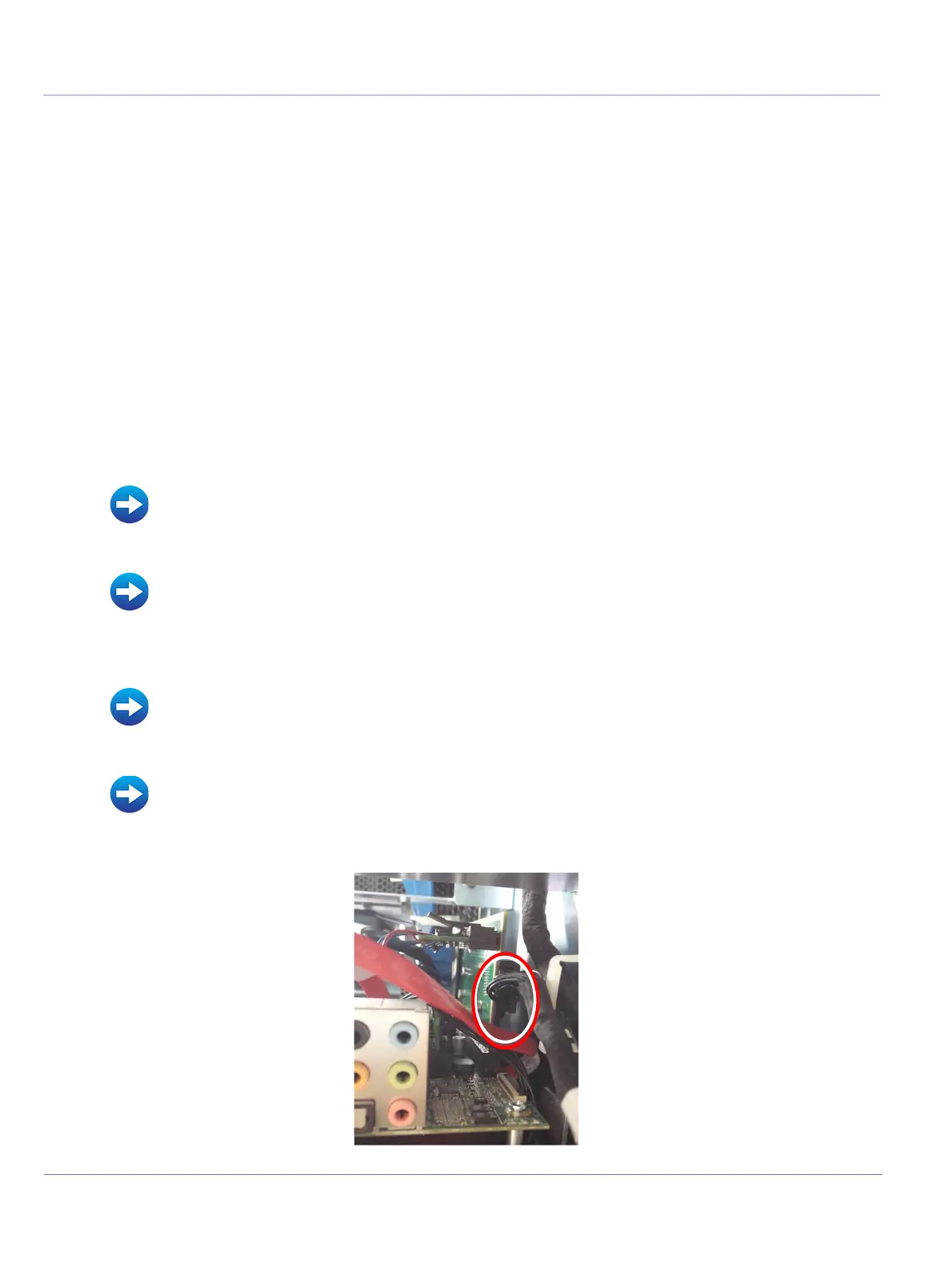

Figure 8-145 Disconnecting MPB to BIB Cable
