IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL

Chapter 9 - Renewal Parts 9-7

PRELIMINARY

9-4-2 Covers

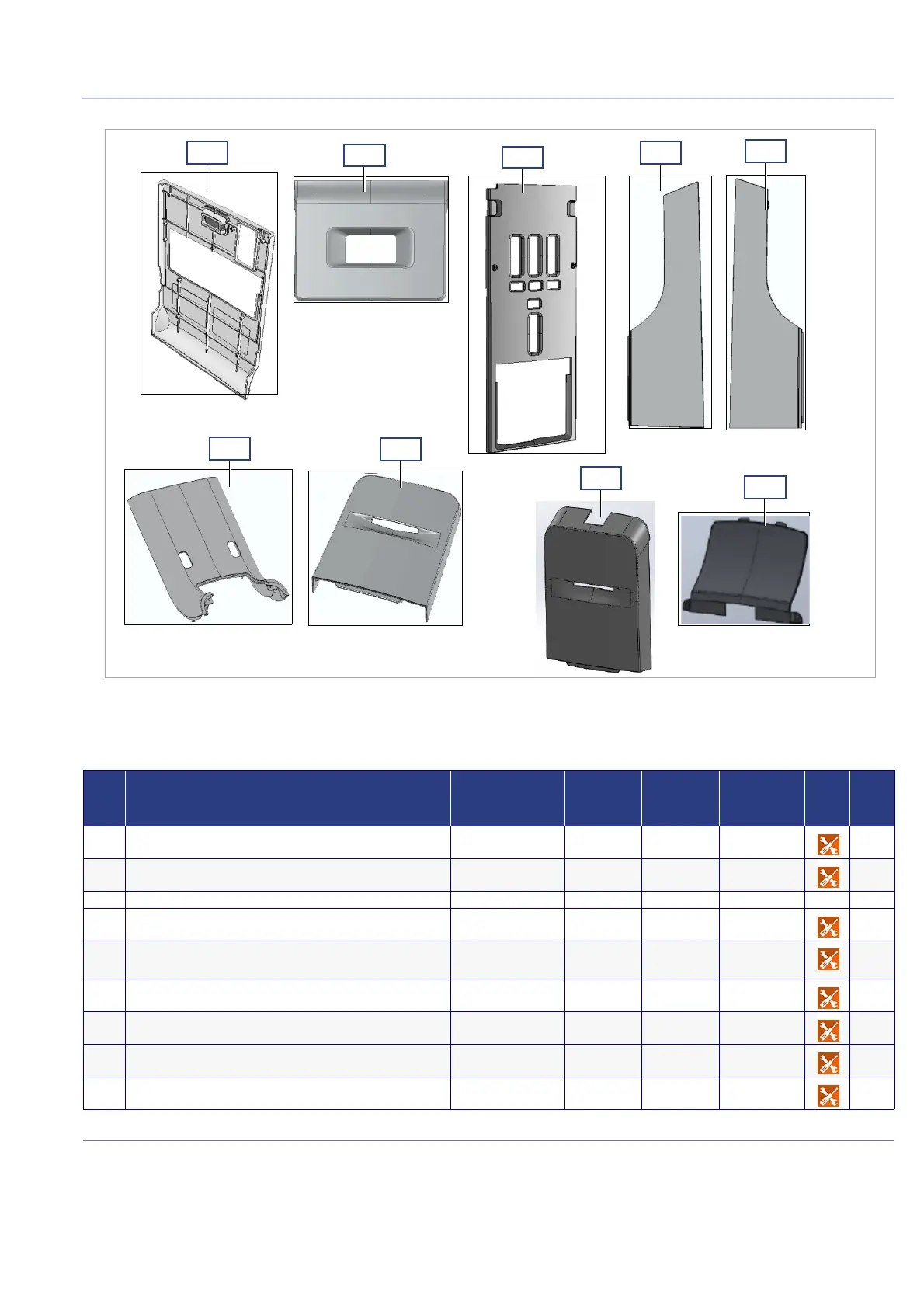

Figure 9-5 Covers - Diagram 1

Table 9-8 Covers - Diagram 1

Item Part Name Part Number

Can

Replace

Part #

Can Be

Replaced

by Part #

Not

Compatible

With

Repl

Proc

CRU

201 Cover: MPB Door S5759973

202 Cover: Mid Thermal Baffle - FRU S5759974

203 Cover: Scanner Door- FRU S5759978

204 Cover: Right Side eTower - FRU S5759982

205 Cover: Left Side eTower - FRU S5759983

206 Cover: Upper eTower Front - FRU S5759985

207 Cover: Lower Front eTower - FRU S5759986

208 Cover: Lower Front with ECG Support S5759986-2

209 Cover: Printer Insert - FRU S5759987

201

203

207

209

208

206

202

204

205
