7.) Remove the three screws that hold the IPP metal frame.
8.) Using the nose pliers (or flat head screwdriver) squeeze the white plastic connector holders and
push them out to remove the power connector.

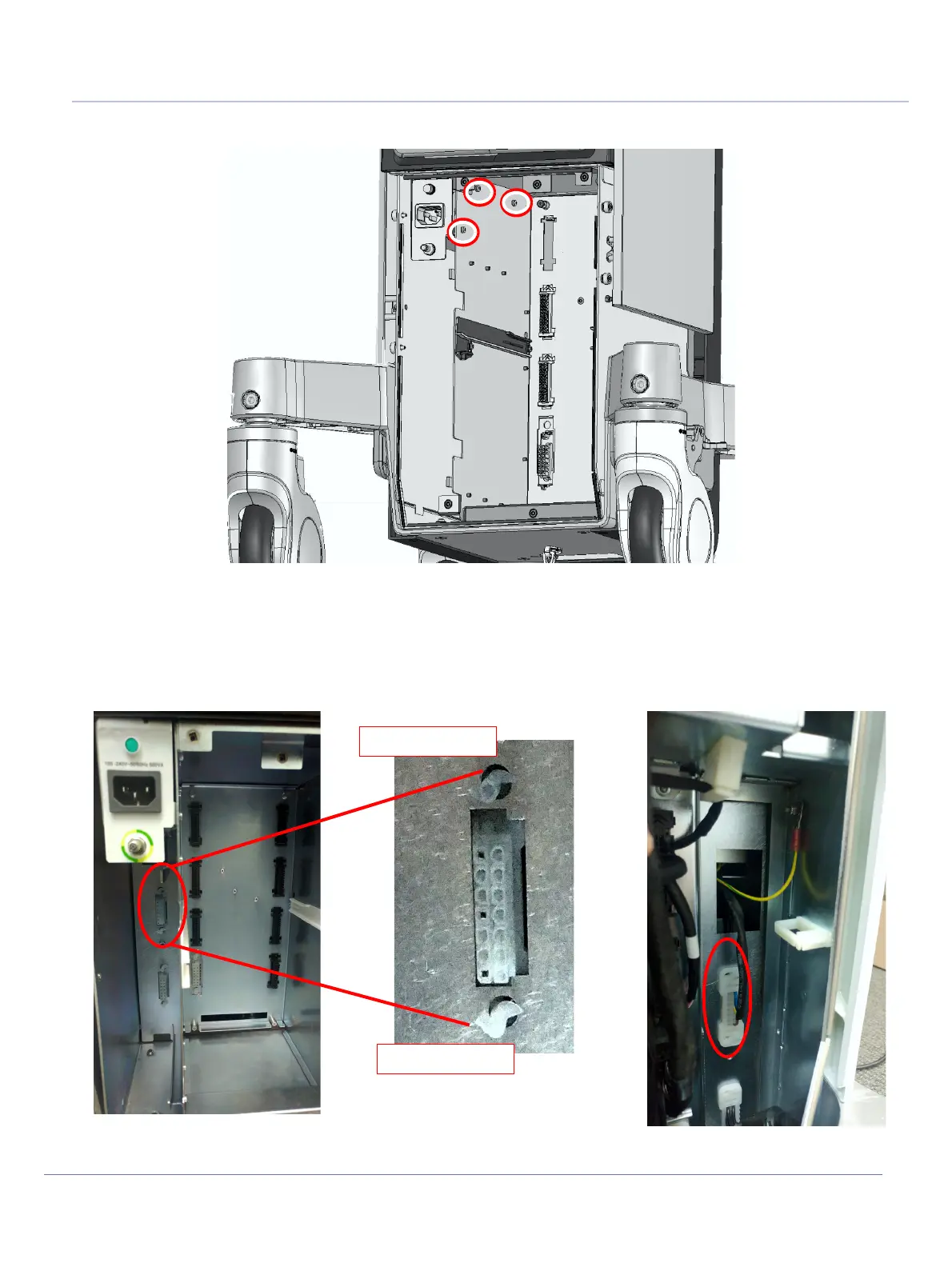

Figure 8-89 Removing IPP Holding Screws
Figure 8-90 Removing Power Connector
Connector holder
Connector holder
System back
System front
