8-112 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY

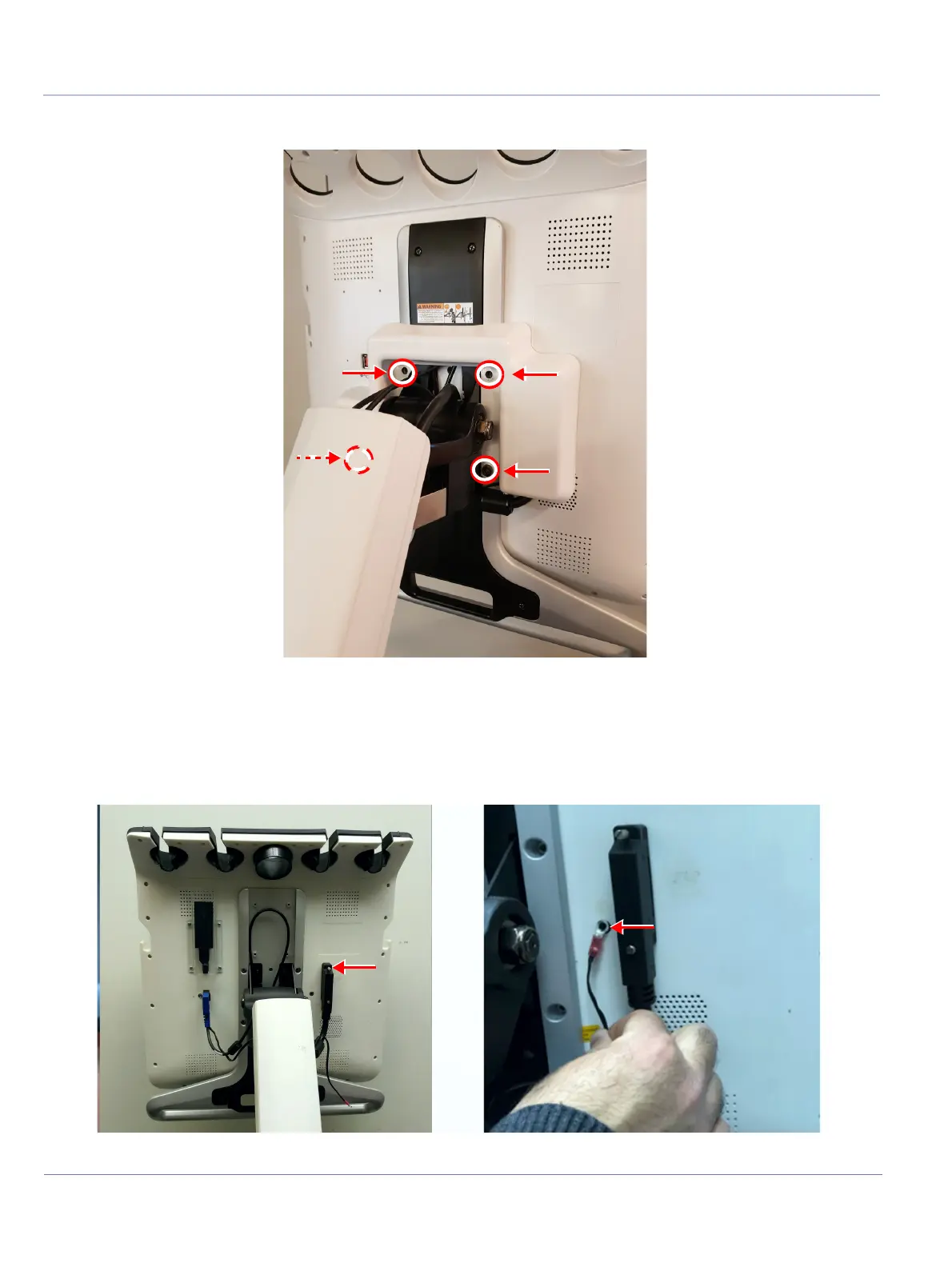

b.) Release the four Phillips screws and remove the rear cable cover.
5.) Disconnect the MPB TO COCKPIT CABLE from the monitor:
• Disconnect the cable connector (use flat-head screwdriver).
• Release Ground cable (use Phillips screwdriver).
Figure 8-94 Removing Rear Cable Cover
Figure 8-95 MPB TO COCKPIT Cable and Cockpit Ground Cables Removal
To Next Page
