8-116 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
8-7-2-5 MPB TO Cockpit Cable Installation Procedure
1.) Remove ferrite clip from MPB to Cockpit cable.
2.) Route the MPB to Cockpit cable through the articulated arm, so that the length of the exposed cable
toward the cockpit is minimum 44 cm. Do not use tie wraps to secure cable in place.

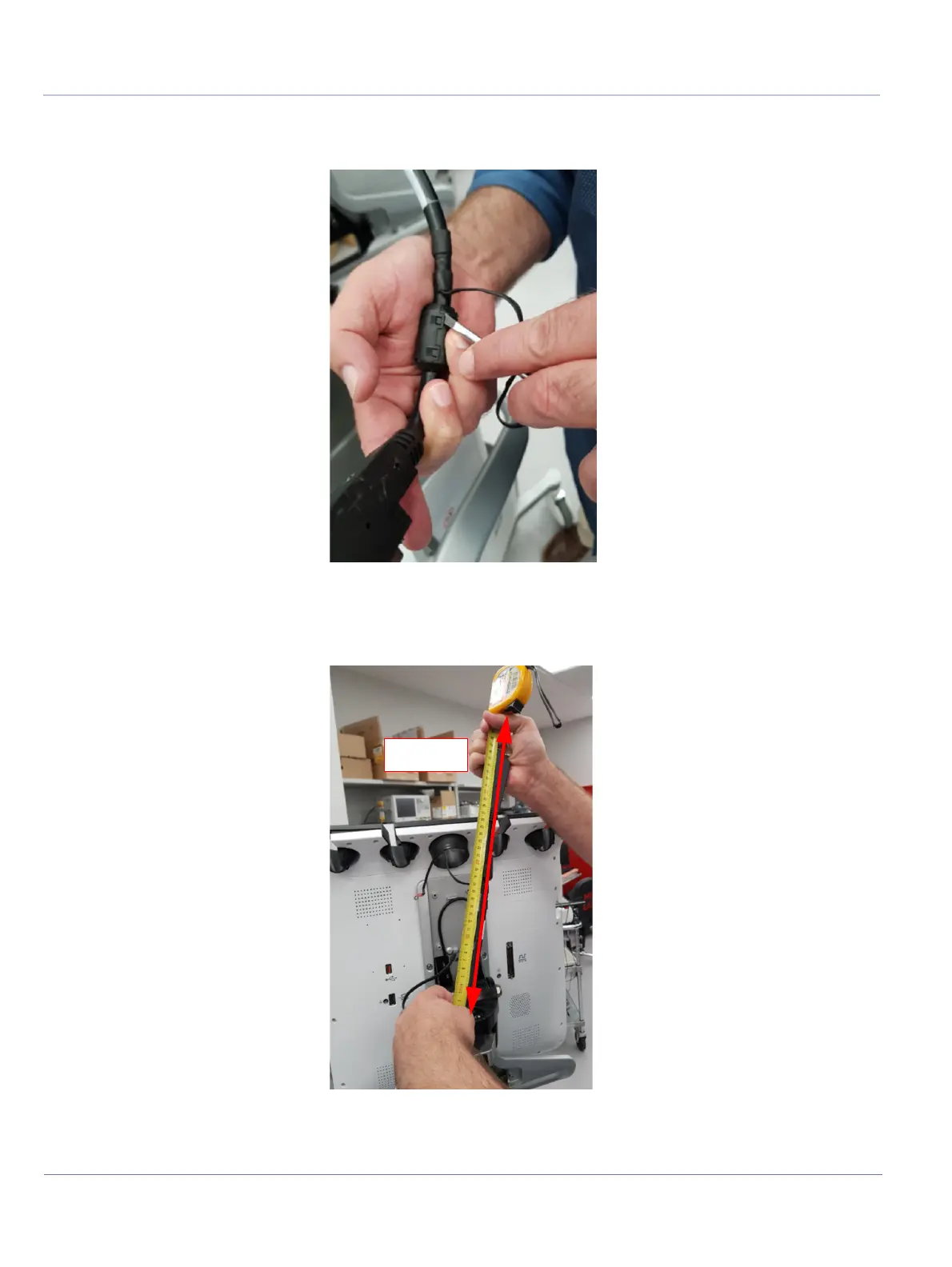

Figure 8-103 Removing Ferrite from Cable
Figure 8-104 Routing MPB to Cockpit Cable - Measuring 44 cm
