GE Venue R2

Chapter 8 - Replacement Procedures 8-161
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
3.) Release the cable from the upper plastic cable clips
4.) If a printer is used:
• Release the printer plastic cable clips routed upwards.
• Loosen the Phillips screw and remove the Peripheral Cable Cover.

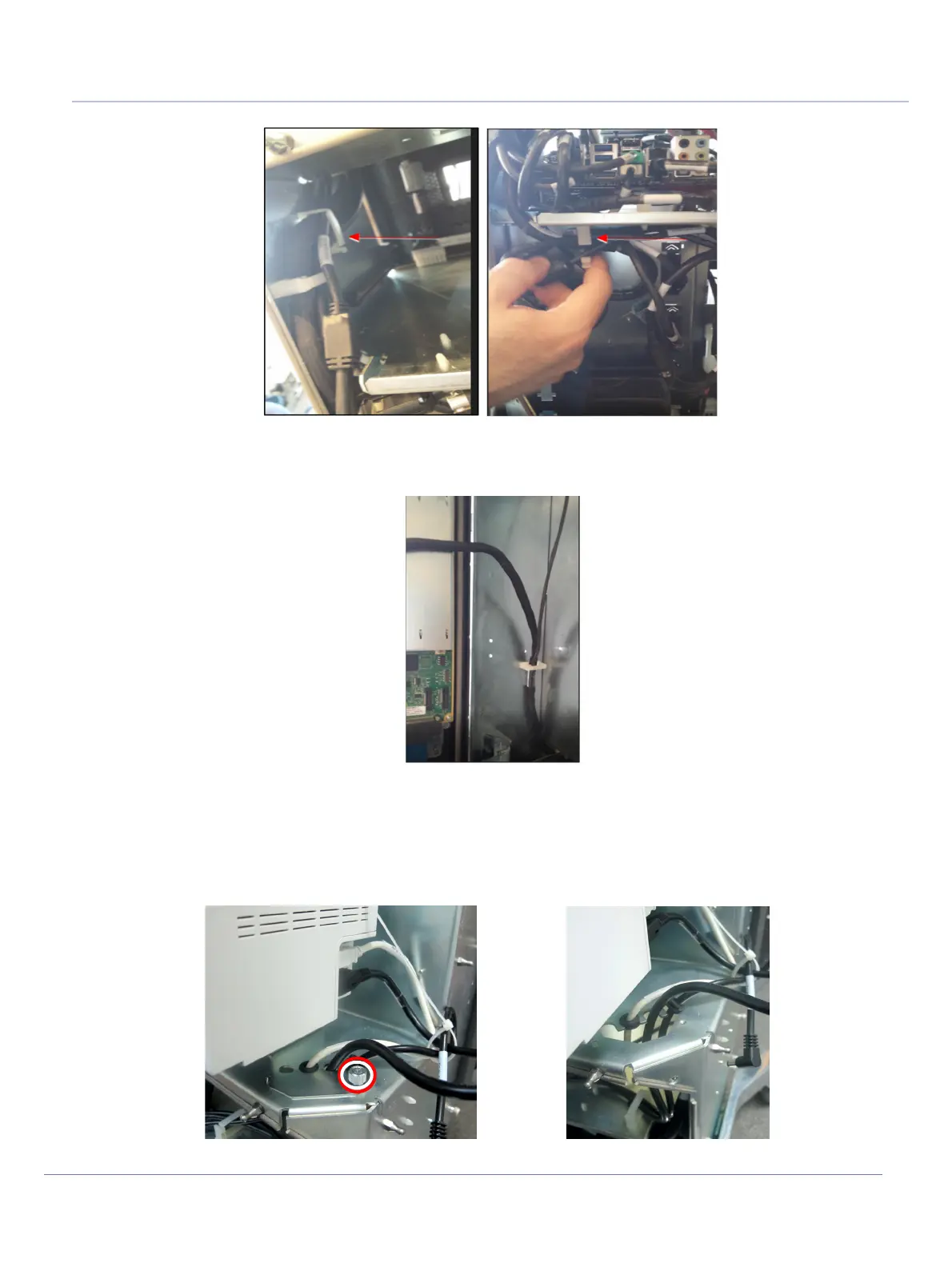

Figure 8-167 Disconnecting Cable Clips
Figure 8-168 Release Cable from Upper Plastic Cable Clips
Figure 8-169 Disconnecting the Printer Cable
