GEDA MINI 60 S - Shackle Lock; Transportation Frame

Technical description GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S
Assembly and Operating Manual 26 / 90 BL068 GB Edition 03/2015

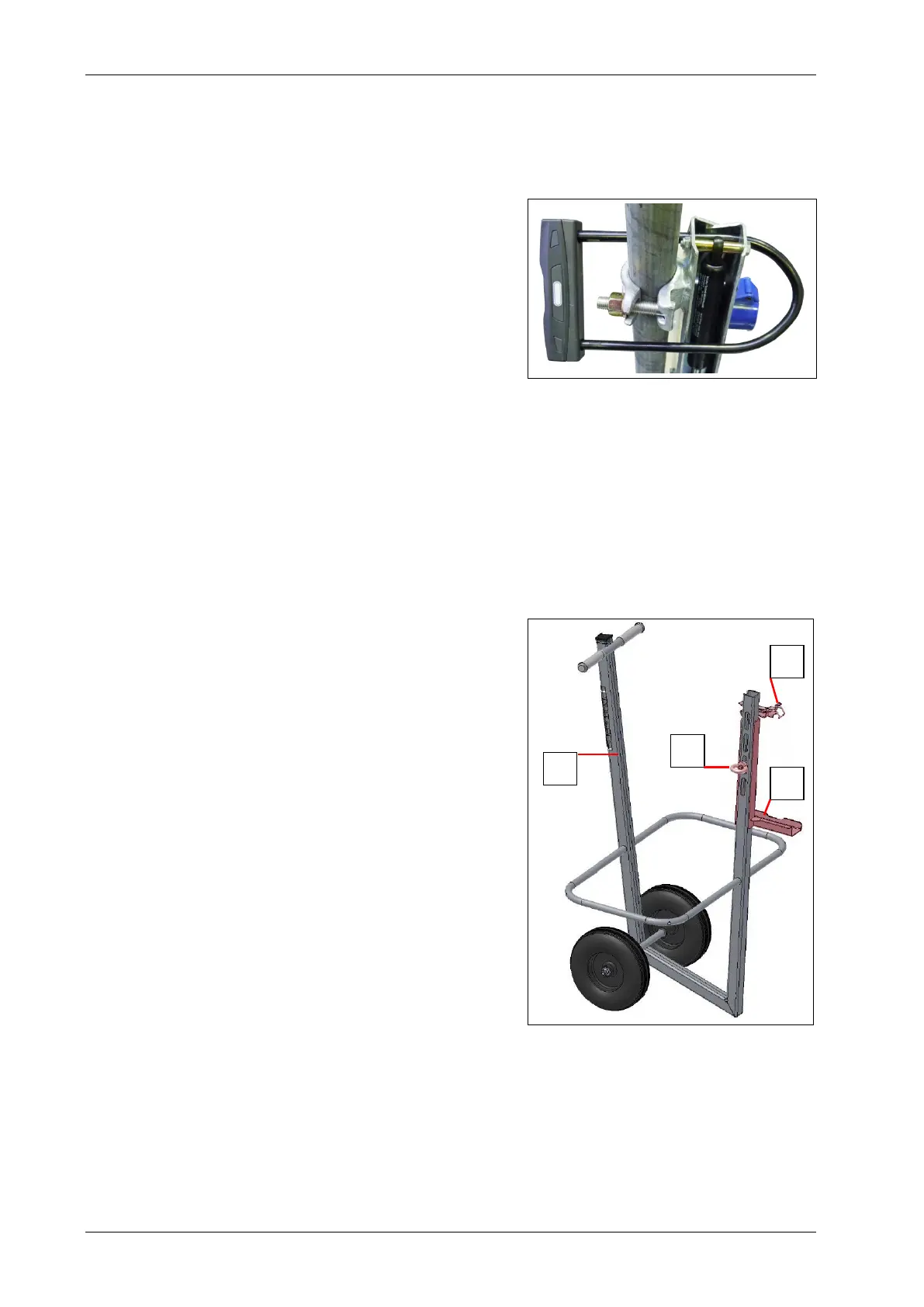

3.3.4 Shackle lock
Is used to secure the winch on the vertical frame (scaffolding).
Item No. 01429
Weight: 1.1 kg [2.4 lb]
 Guide the open shackle through
the holes on the triangular frame
and vertical frame (scaffolding).
 Place the body of the lock on the shackle and close.
3.3.5 Transportation frame
The “transportation frame” can be used for safer and easier transporta-
tion of the scaffolding lifts GEDA MINI 60 S and
GEDA MAXI 120 S/150 S.
The machine is attached by bolts to the transportation frame on the
scaffolding and can remain there.
The clamp lock (2b) secures the
machine on the transportation
frame (1).
As an option, the transportation
frame (1) can be removed after at-
taching the machine to the scaffold-
ing.
Item No. 47760
Weight: 19 kg [42 lb]
1 = Wheels
2 = Machine mounting
For adaptation to different scaffolding, the machine mounting (2) can be
attached by the eye bolt (2a) in three different positions. (Adjustment
range 80 mm [31 in] upwards and downwards).
1
2b
2a
2
