MINI 60 S / MAXI 120 S / MAXI 150 S Malfunctions - Diagnosis – Repair
BL068 GB Edition 03/2015 77 / 90 Assembly and Operating Manual
9.2 Fault rectification
9.2.1 Motor is not producing full output
− Voltage drop of more than 10 % of the rated voltage.
− Select supply cable with larger cross-section.
− If overloaded, the integrated thermal switch turns off the control cur-
rent. Work can continue after a certain cool-down period (possibly
reduce load).
Refrain from repeated overheating/overloading. - Otherwise the
service life of the motor/brakes will be shortened.
9.2.2 Control fuse
MINI 60 S
To access the control fuses, remove the motor cover.
(3 × cap nuts width across flats AF 10 mm)
1 × fuse (5×20) 230 V / T 250 mA
1 × fuse (5×20) 230 V / T 63 mA
MAXI 120S / 150 S

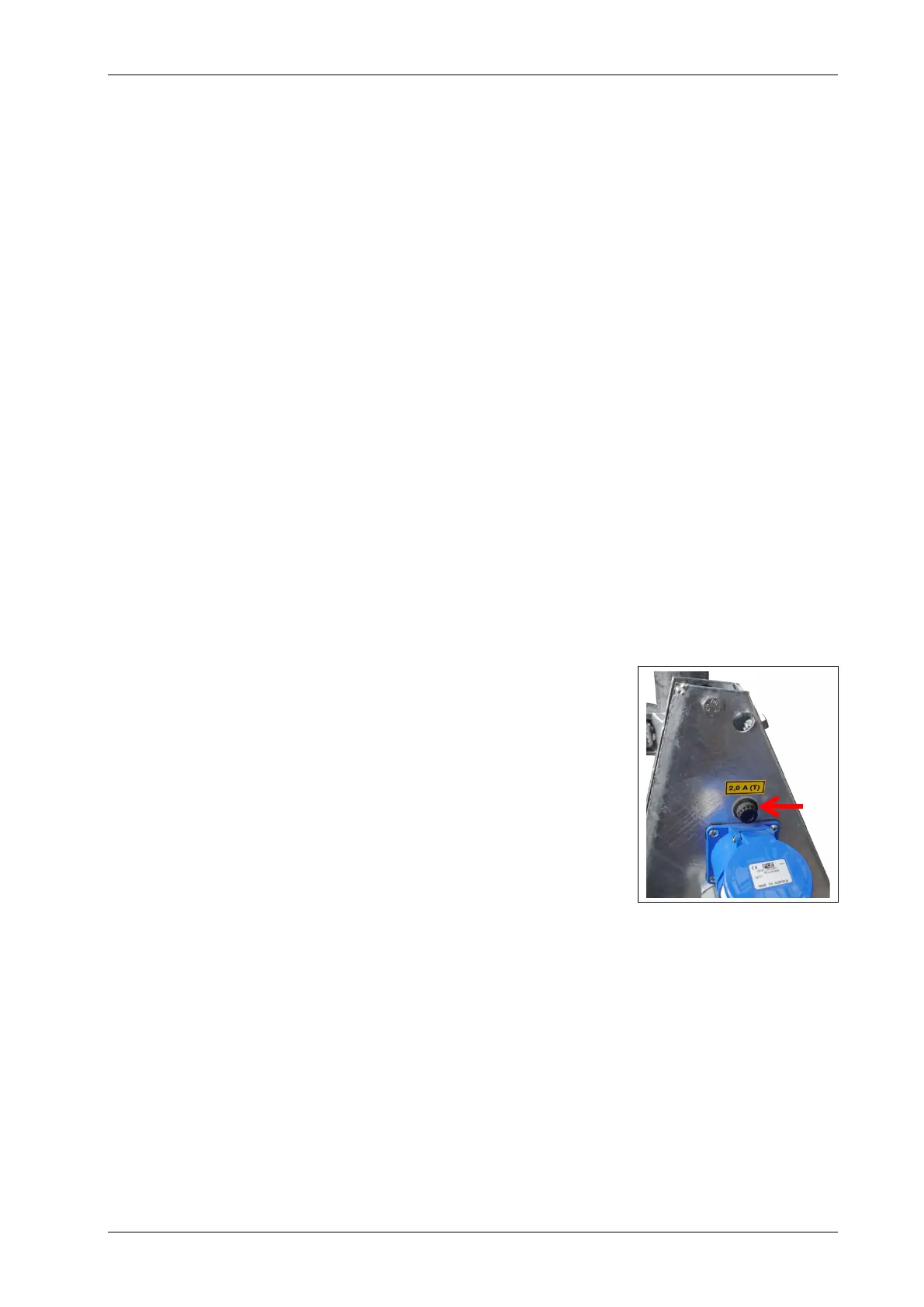

On the triangular frame of the winch.
1 × fuse (5×20) 230 V / T 2.0 A
