6.2 Operating the Scaffolding Lift
The scaffolding lifts GEDA MINI 60 S and GEDA MAXI 120 S/150 S
have two levels of speed, whereas the slow level is provided mainly for
commencing the lifting or sinking movement without jolts. For the most
part the equipment should be operated in the fast level. It is also possi-
ble to stop more smoothly using the first speed level. The control switch
accordingly has two pressure points.
If the upward travel was automatically switched off because of an
accumulation of slack in the cable, then the upward travel is only
released after the cable was manually tightened.

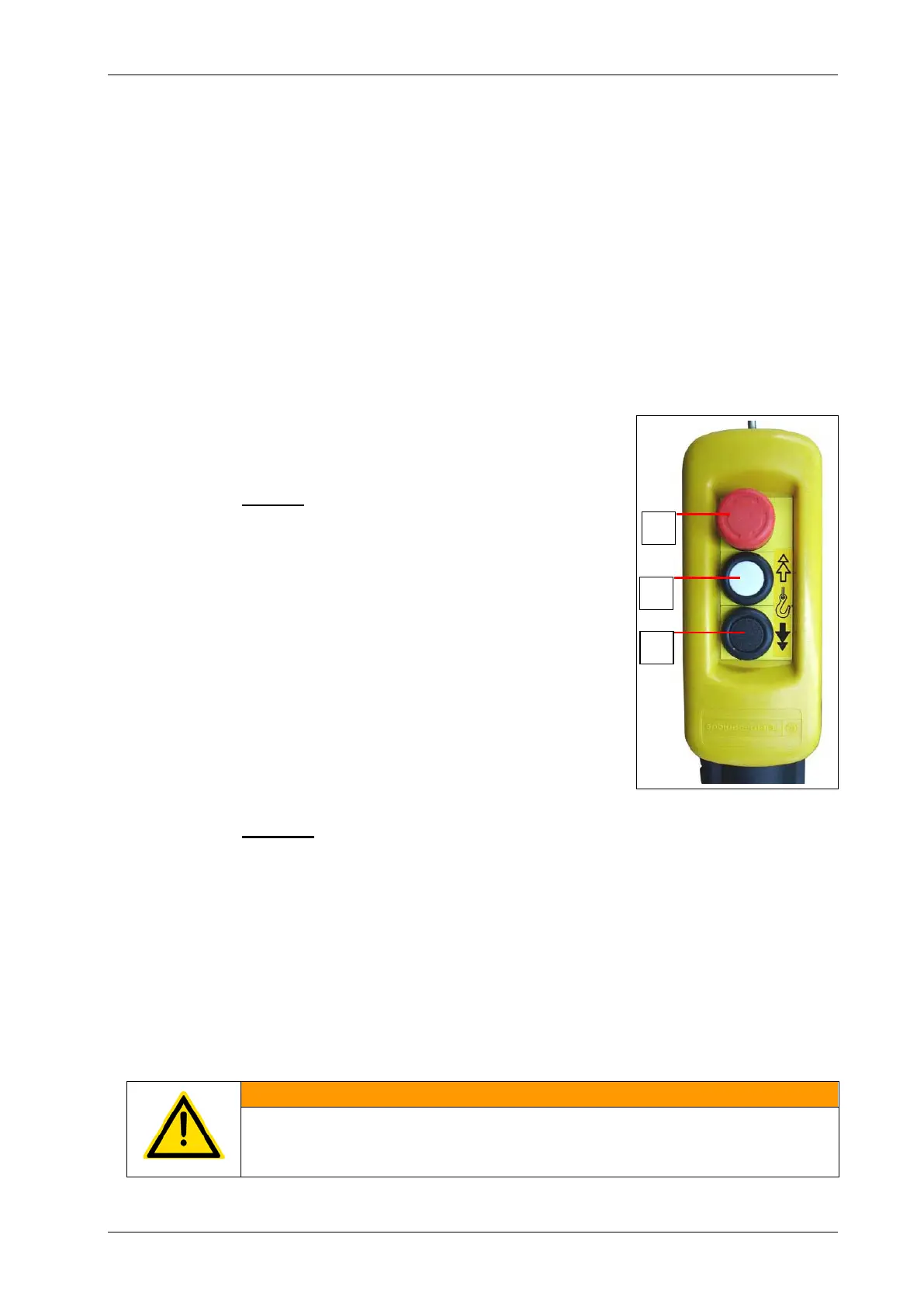

On the manual control, unlock the
EMERGENCY STOP button (1).
Ascent
Lightly press the UP button (2) and press
down after a short period.
Ascent only as long as the UP button (2) is
pressed.
Ascent stops at the latest when the rope
weight moves against the pivot arm.
Descent
Lightly press the DOWN button (3) and press down after a short pe-
riod.
Descent only as long as the DOWN button (3) is pressed.
Descent stops at the latest when the load is placed on the ground (rope
slackens).
If the pivot arm hoist should be operated from above, then it is
possible by plugging in manual controls with long cables of 30 m
[98 ft] or 50 m [164 ft] (accessories).
Always keep the suspended load under constant observation from the
operating position.
