3.5.6 Pivot arm 300 kg [660 lb] and hook block 300 kg [660 lb]
By using the pivot arm 300 kg [660 lb] and hook block 300 kg [660 lb],
the load capacity of the scaffolding lift GEDA Maxi 150 S can be dou-
bled (pulley block principle). Operation of the hoist is not changed by
using the parts. Only the lifting speed and height changes.
WARNING
Risk of injury
Only slinging equipment and load carrying equipment must be
used that is suitable for the load capacity of 300 kg [660 lb].

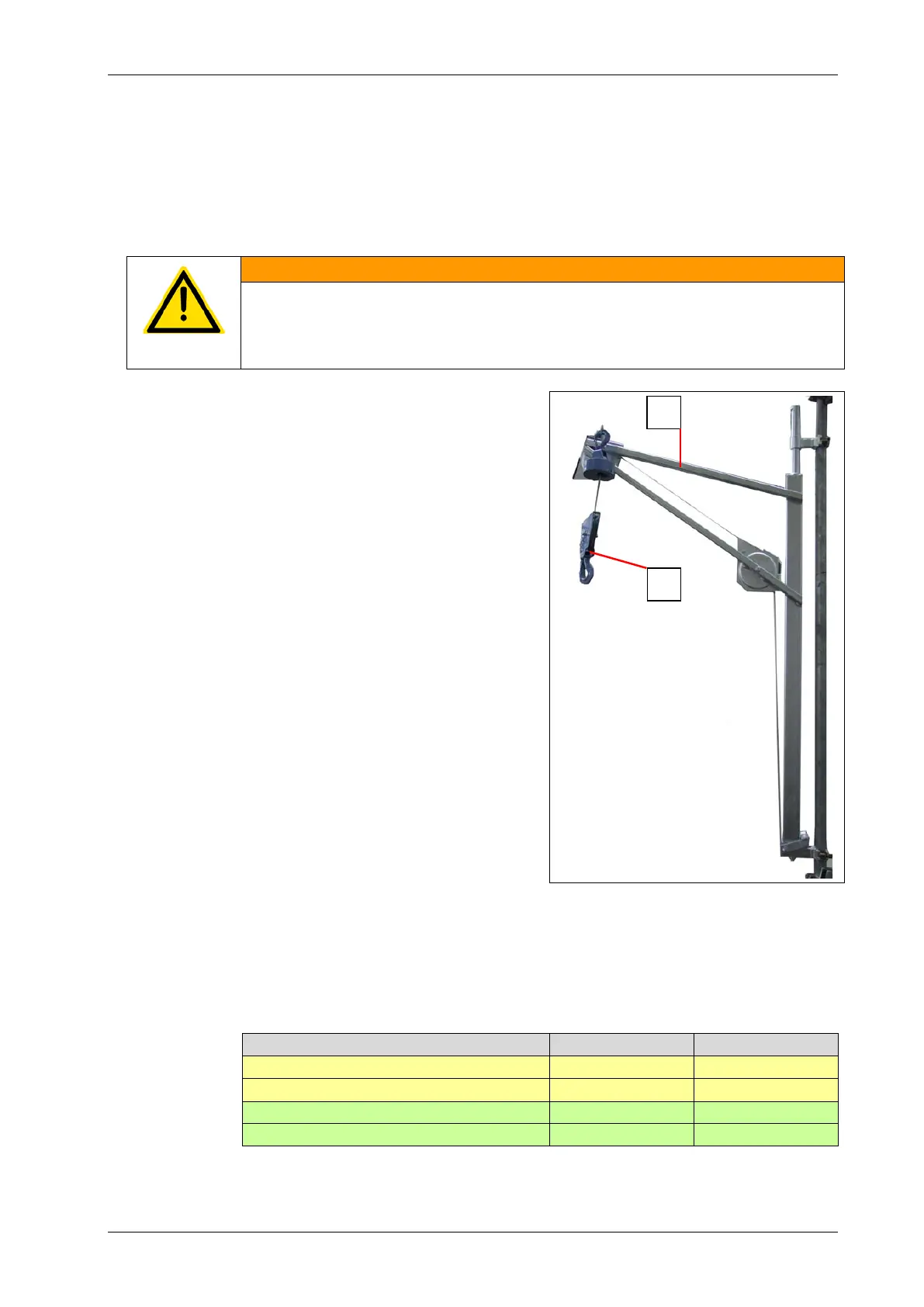

1 = Pivot arm 300 kg [max. 660 lb]
Item No.: 01272
2 = Hook block 300 kg [max. 660 lb]
Item No.: 01273
Lifting capacity max. 300 kg
[max. 660 lb]
Weight 21 kg [64 lb]
Pivot frame 0.85 m [2.8 ft]
(Pivot radius)
Lifting speed (Maxi 150 S) with hook block
1. Speed max. 7 m/min [23 ft/min]
(starting / stopping without jerking)
2. Speed max. 22 m/min [72 ft/min]
(Travel)
Lifting heights with hook block
MAXI 150 S
Rope length
Lifting height
Winch installed at bottom
51 m [167 ft]
16 m [53 ft]
Winch installed at top
51 m [167 ft]
22 m [72 ft]
Winch installed at bottom
81 m [266 ft]
26 m [85 ft]
Winch installed at top
81 m [266 ft]
37 m [121 ft]
1
2
