GEDA MINI 60 S - Pivot Arm 300 Kg [660 Lb] for the GEDA MAXI 150 S

Assembly GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S
Assembly and Operating Manual 52 / 90 BL068 GB Edition 03/2015
5.3.2.4 Pivot arm 300 kg [660 lb] for the GEDA MAXI 150 S
The hook block 300 kg [660 lb] Item No. 01273 is installed on the pivot
arm 300 kg [660 lb] Item No. 01272.


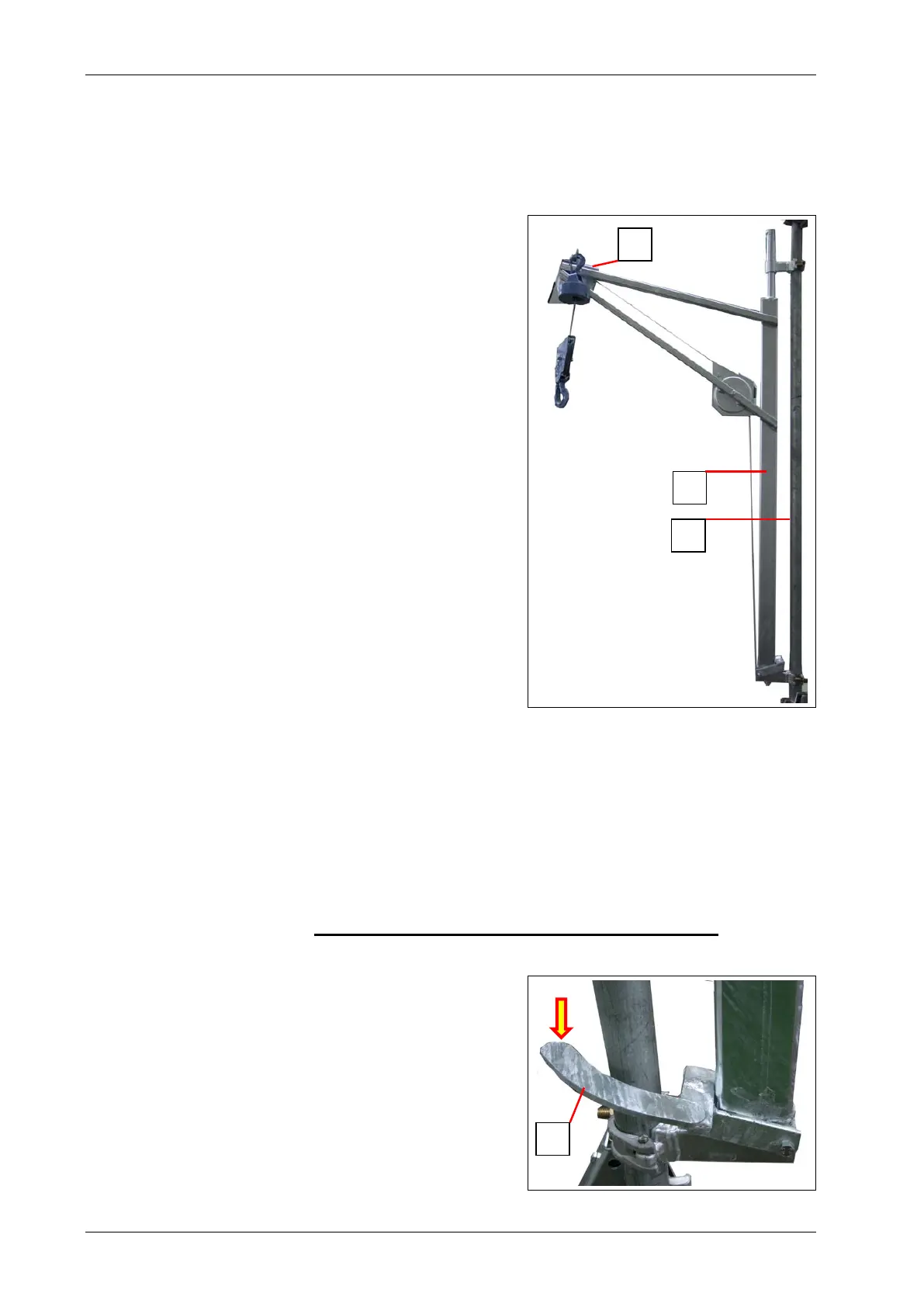

Attach the pivot arm 300 kg
[660 lb] (7) (with adjustable at-
tachment at the top) to the verti-
cal pipe (4) so that it points out-
wards from the scaffolding.
The attachment of the upper pivot
arm 300 kg [660 lb] is adjustable,
thus, it can be adjusted in height in
order to be able to swing inward the
upper rope pulley (7a) below the
above scaffolding level.

It must be ensured that both fasteners of the pivot arm mounting
are fastened as closely as possible to the intersections of the scaf-
folding.

The vertical frame (4), on which the pivot arm 300 kg [660 lb] is
suspended, must be anchored above and below to the building
(tensile and compression proof anchor) and additionally secured
with cross stays.
Anchoring forces = minimum 2.5 kN [0.56 kip]
Swivelling the pivot arm

Press down the locking device
(7a) and swivel the pivot arm.
4
7
7a
7a
