5.3 Assembling scaffolding lift
The machine must only be installed and deployed vertically!
The pivot arm is suspended on the upper end of the same vertical pipe
as the winch.
5.3.1 Installing the winch
The scaffolding lifts GEDA MINI 60 S, as well as GEDA MAXI 120 S
and GEDA MAXI 150 S are specifically designed for 1½″ pipe scaffold-
ing.

If you should use scaffolding with other dimension, please contact
your dealer or the manufacturer, who can offer you an adapter or
special design.


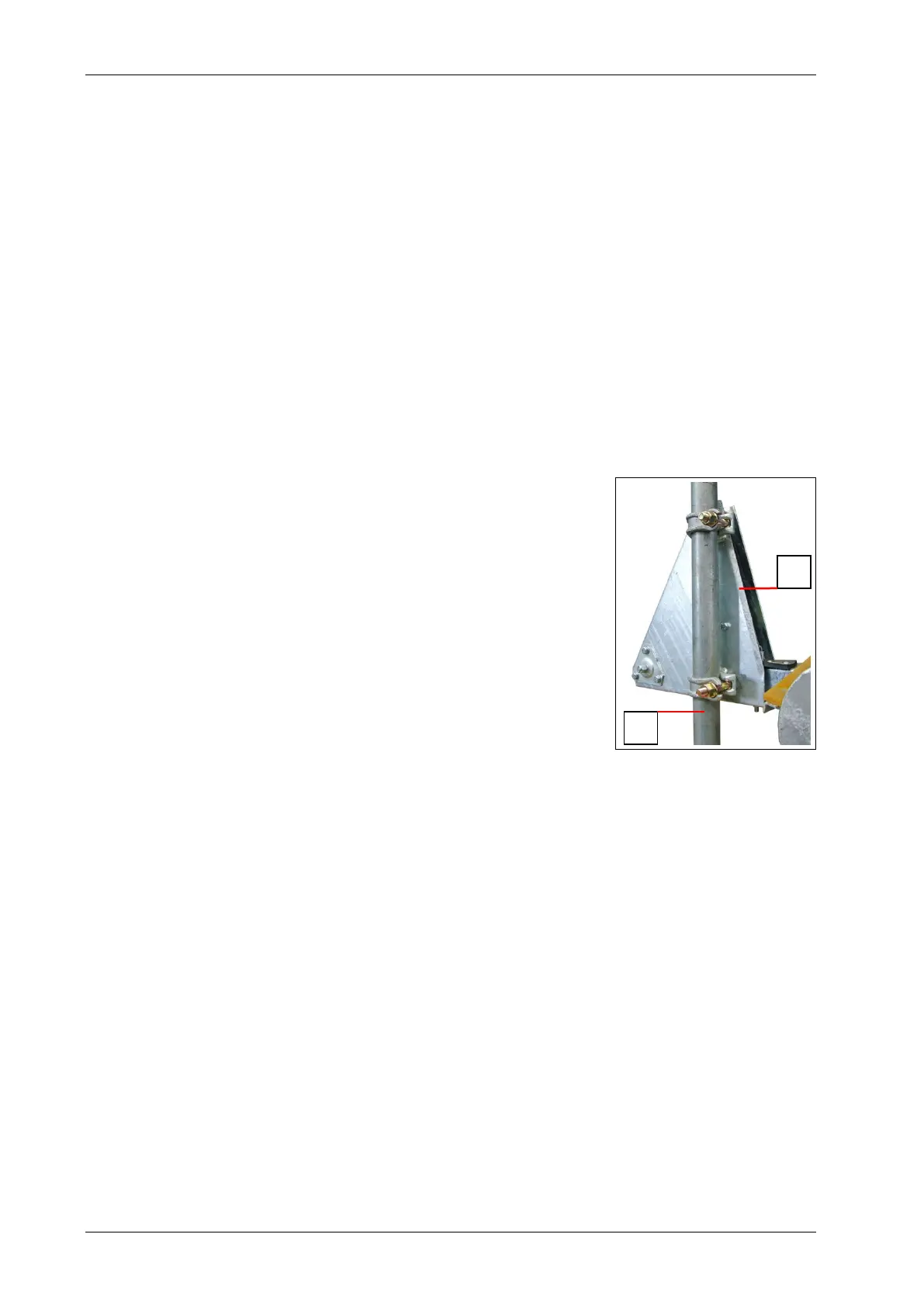

Use the welded pipe clamps and loosely in-
stall the winch (1) on the vertical frame (2)
of the scaffolding.
 Align so that the rope drum is parallel to the
scaffolding.
 Fully tighten the pipe bolts.
Tightening torque 50 Nm [37 lbf ft],
width across flats (AF) 22 mm

The vertical frame (2) of the scaffolding on which the scaffolding
lift is installed, must be aligned vertically.
1
2
