MINI 60 S / MAXI 120 S / MAXI 150 S Technical description
BL068 GB Edition 03/2015 33 / 90 Assembly and Operating Manual

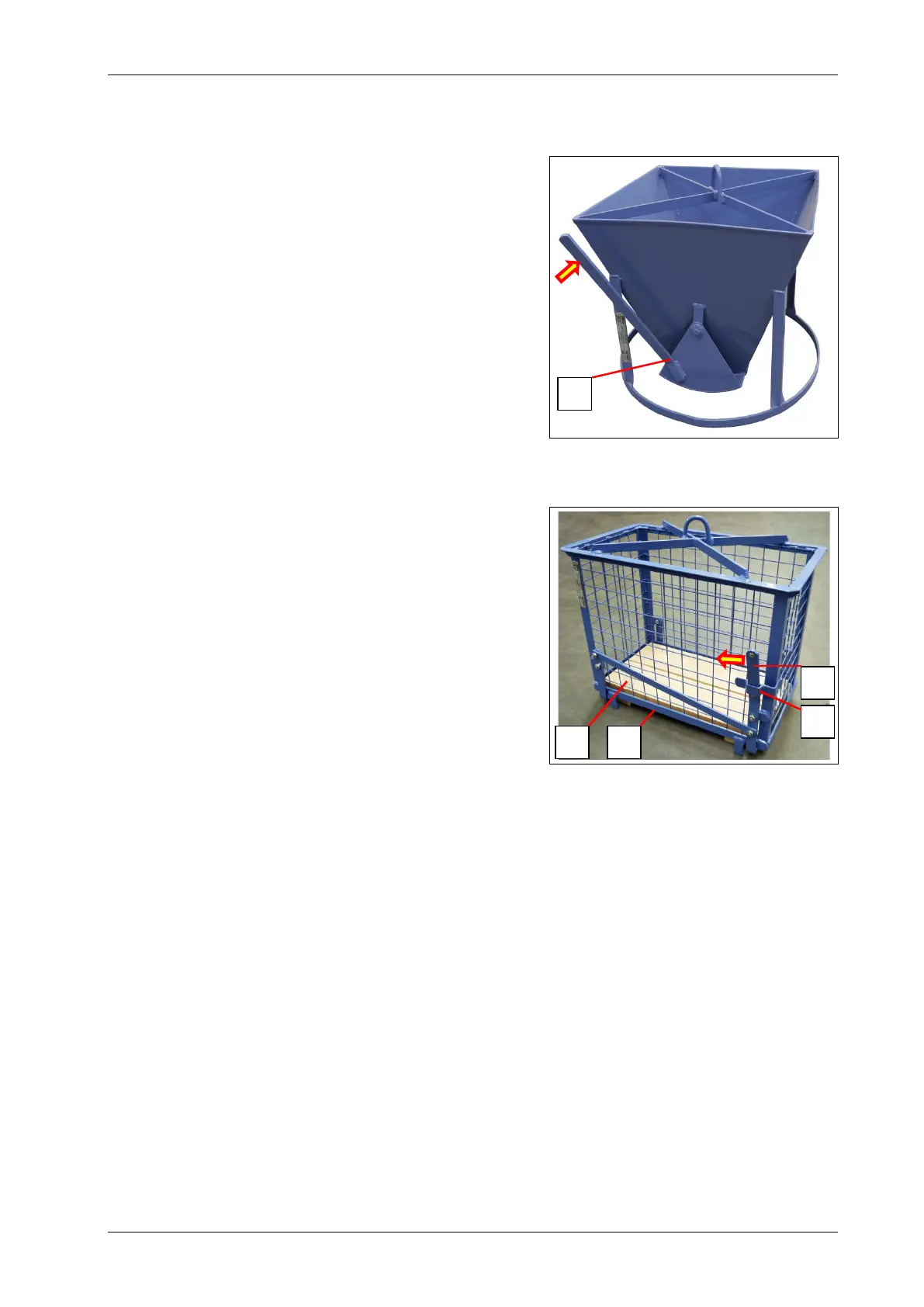

3.4.9 65 litre mortar silo
Item No. 01815
Load capacity: max. 150 kg [330 lb]
Weight: 23.3 kg [51 lb]
Volume: max.65 litres [17 gallons]
Overall dimensions:
0.74 m × 0.52 m [2.4 ft × 1.7 ft]
Height: 0.55 m [1.8 ft]
∅ Ring: max.0.60 m [2 ft]
Suitable for MAXI 120 S / 150 S
 Open flap with lever (1) for unloading.
3.4.10 Wire mesh cage with wooden palette
Item No. 01816
Load capacity: max. 150 kg [330 lb]
Weight: 21 kg [46 lb]
Internal dimensions:
0.64 m × 0.34 m [2.1 ft × 1.1 ft]
Height: 0.50 m [1.6 ft]
Overall dimensions:
0.70 m × 0.44 m [2.3 ft × 1.4 ft]
Height: 0.67 m [2.2 ft]
Suitable for MAXI 120 S / 150 S
Loading
 Stack the load on the palette (2).
 Raise the safety device (1a), pull the lever (1b) towards the centre of
the cage.
 Raise the wire mesh cage (1) above the load until it rests on the pal-
let (2).
 Turn the lever (1b) so it is vertical and slide the safety device (1a)
down.
Unloading
 Raise the safety device (1a), pull the lever (1b) towards the centre of
the cage.
 Raise the mesh cage (1) above the load and place to the side.
 Unload palette (2).
2
1
1
1b
1a
