GEDA MINI 60 S - Small On-Site Main Cabinet

GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S Technical description
BL068 GB Edition 03/2015 29 / 90 Assembly and Operating Manual

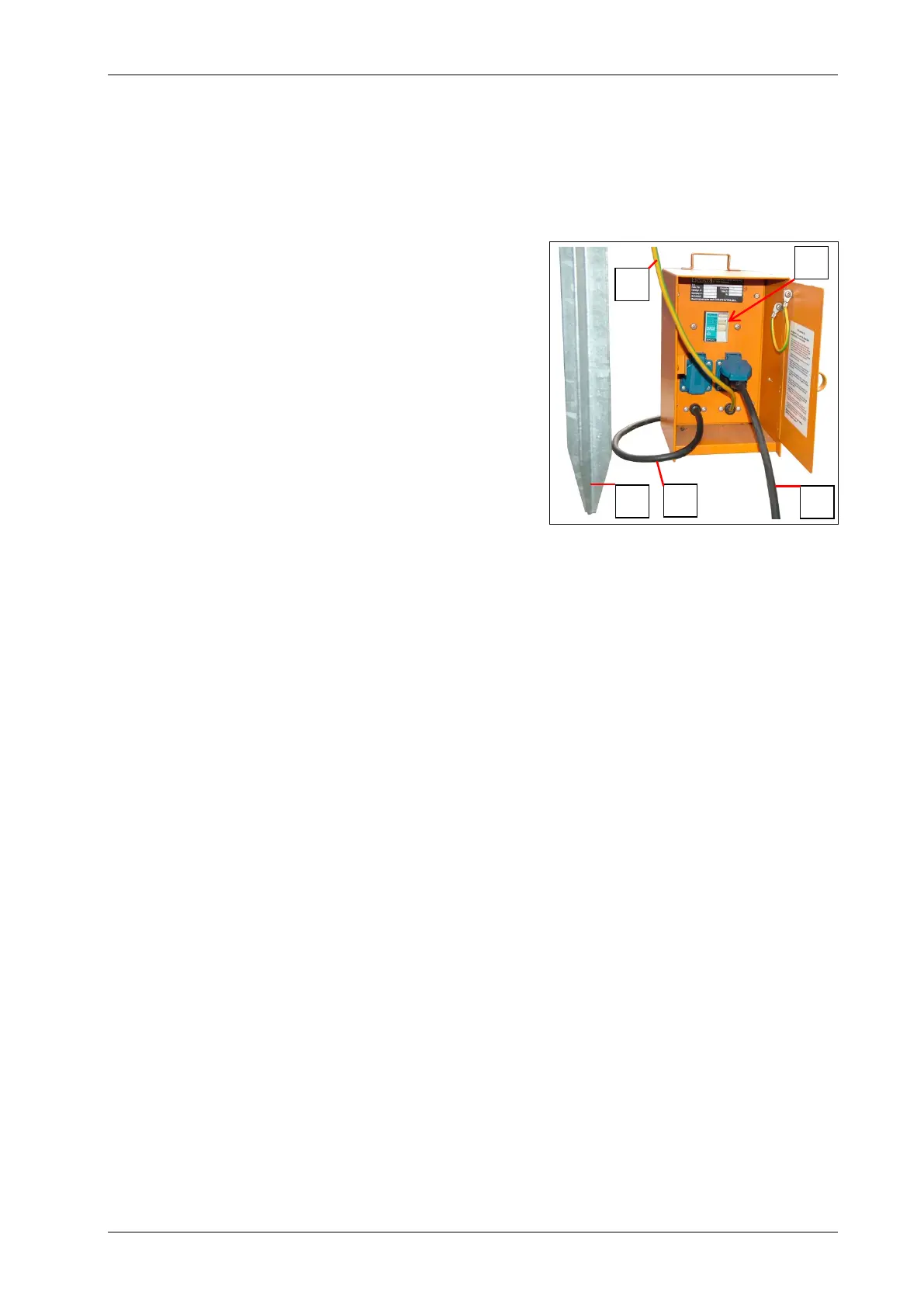

3.3.7 Small on-site main cabinet
Construction lifts must be operated via a building site mains distributor.
(Refer to national provisions)
Assembly
 Drive the earthing rod (5) into the
ground.
 Route the PE conductor (4) of the
small on-site main cabinet to the
earthing rod (5) and connect it
there.
 Connect the mains line (1) of the
small on-site main cabinet to the
mains supply on the construction
site.
Item No. 02823
Weight: 8 kg [18 lb]

Test the trigger ability of the Residual Current Device (RCD) by
pressing the test button (2).
 Connect the mains plug of the scaffolding lift (3) at the small on-site
main cabinet.
3
5
1
4
2
