GEDA MINI 60 S - Installing the pivot arms

GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S Assembly
BL068 GB Edition 03/2015 49 / 90 Assembly and Operating Manual
5.3.2 Installing the pivot arms
The pivot arm for the scaffolding lifts GEDA MINI 60 S and
GEDA MAXI 120 S / 150 S are the same, but have different pivot arm
mountings, which must be used correctly for static purposes.
5.3.2.1 Pivot arm for the MINI 60 S
The pivot arm, without pivot arm mounting, is only intended for installa-
tion on the upper-most scaffolding pipe.

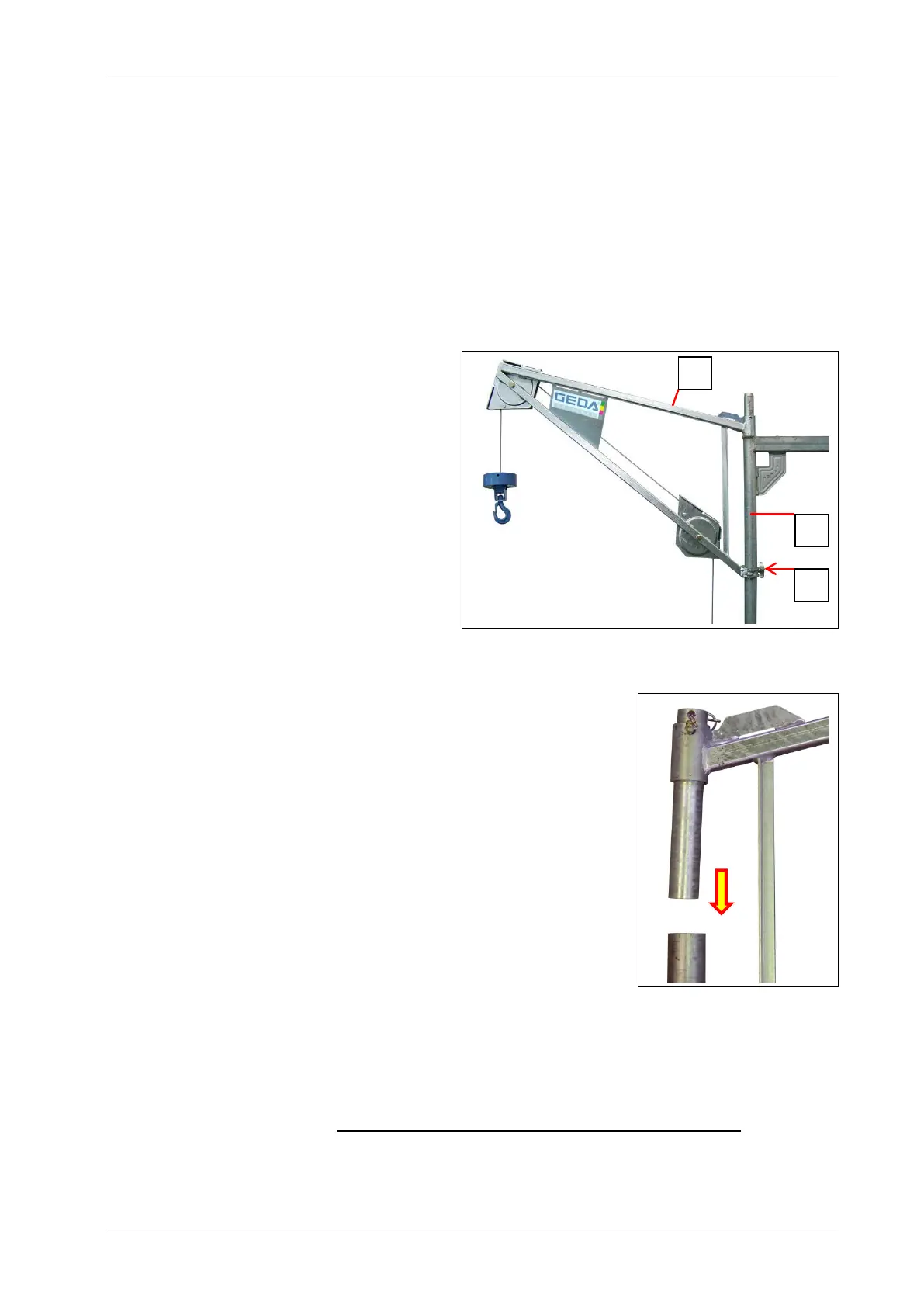

 Put the pivot arm (3)
into the top level of
scaffolding, on the pro-
truding pipe of the ver-
tical frame (4) (above
the winch).
 Rotate the pivot arm (3) towards the scaffolding to thread the wire
rope and secure on the star handle (3a) against rotating.
For scaffolding without protruding crossbar
studs on the vertical pipe, use the adapter Item
No.:1409.
It is connected to the pivot arm (1) and, thus,
protrudes into the pipe of the scaffolding sup-
port.

The vertical frame (3), on which the pivot arm hangs, must be an-
chored above and below to the building (tensile and compression
proof anchor) and additionally secured with cross stays.
Anchoring forces = minimum 1.0 kN [0.22 kip]
3
4
3a
