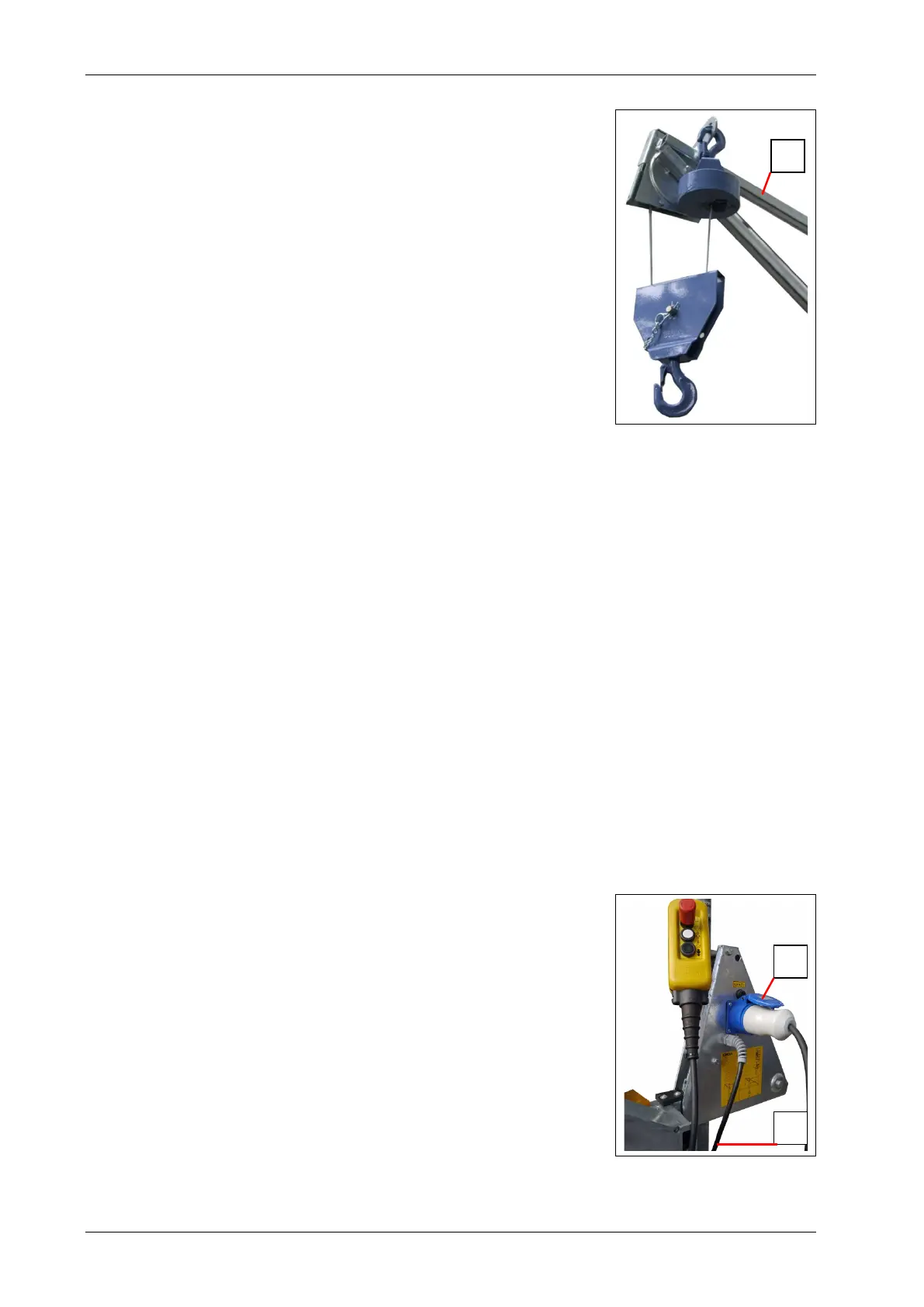

GEDA MINI 60 S - Electrical connection of the winch

Assembly GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S
Assembly and Operating Manual 54 / 90 BL068 GB Edition 03/2015

The pivot arm 300 kg (7) must only be op-
erated when it is in the swung out position!
5.3.3 Electrical connection of the winch
A site distribution cabinet (in accordance with IEC 60439-4:2005) with
fuse protection of the supply point
min. 1 × 16 A slow-blow and a
Residual Current Device (RCD) required.
As an extension to the mains feed line, connect a rubber hose line 3 ×
2,5 mm² directly to the building site main cabinet without any adapters
from other power consumers, in order to avoid a drop in voltage and,
thereby, a loss of motor power.
Note for mains voltage 110 V / 50-60 Hz
Extension: Rubber hose line 3 × 4.0 mm² [AWG No. 11].

Observe national regulations!
 Connect the mains plug to the construction power distribution.
1 = Mains supply line
 Connect the manual control to the socket
(2).
7
2
1
