GEDA MINI 60 S - Hoisting Cage with Wooden Palette; Slab Grab

Technical description GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S
Assembly and Operating Manual 34 / 90 BL068 GB Edition 03/2015

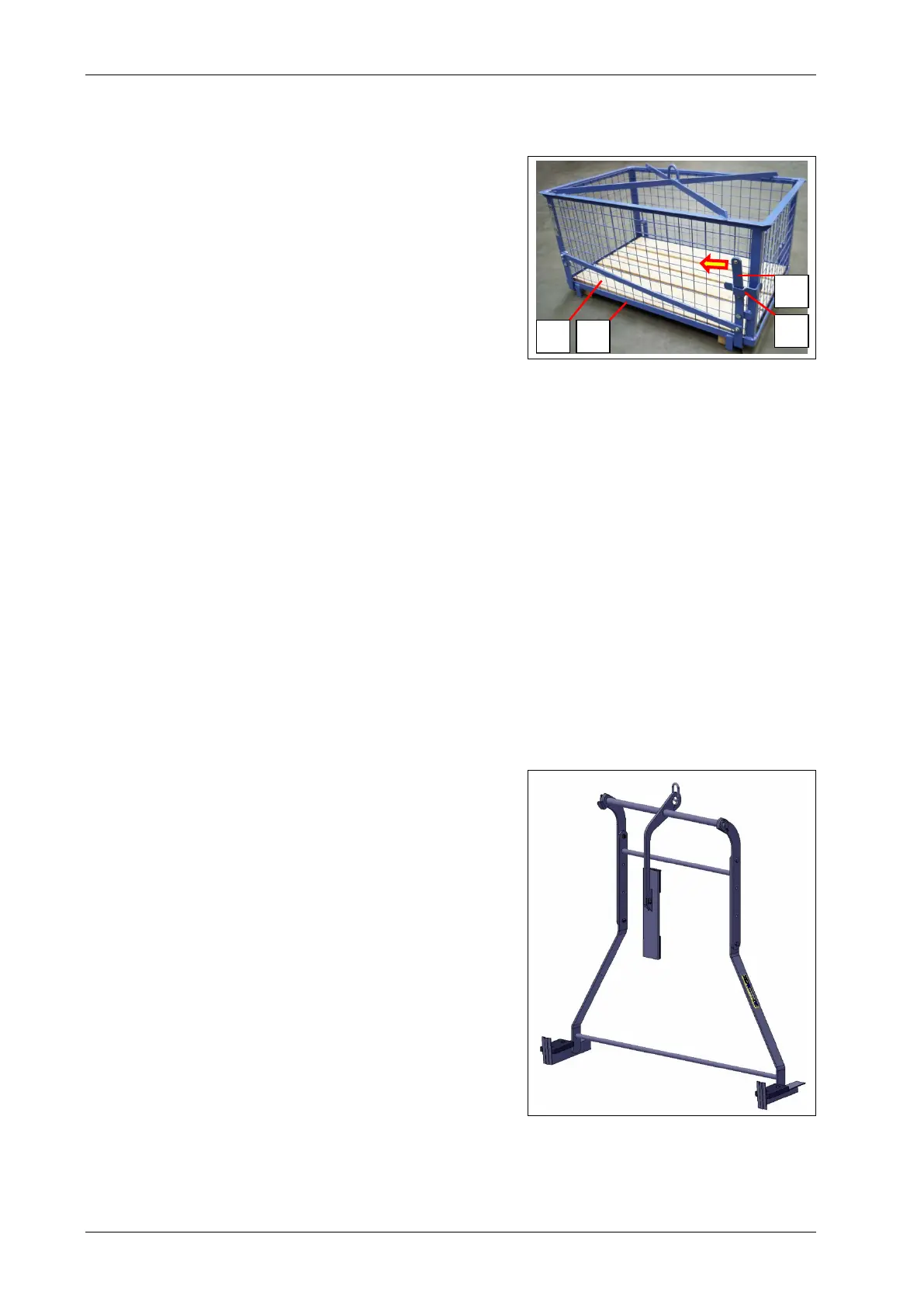

3.4.11 Hoisting cage with wooden palette
Item No. 01820
Load capacity: max. 150 kg [330 lb]
Weight: 38 kg [84 lb]
Internal dimensions:
0.95 m × 0.60 m [3.1 ft × 2 ft]
Height: 0.45 m [1.5 ft]
Overall dimensions:
1.01 m × 0.69 m [3.6 ft × 2.3 ft]
Height: 0,62 m
Suitable for MAXI 120 S / 150 S
Loading
 Stack the load on the palette (2).
 Raise the safety device (1a), pull the lever (1b) towards the centre of
the cage.
 Raise the hoisting cage (1) above the load until it rests on the pallet
(2).
 Turn the lever (1b) so it is vertical and slide the safety device (1a)
down.
Unloading
 Raise the safety device (1a), pull the lever (1b) towards the centre of
the cage.
 Raise the hoisting cage (1) above the load and place to the side.
 Unload palette (2).
3.4.12 Slab grab
Item No. 01819
Load capacity: max. 150 kg [330 lb]
Weight: 24 kg [53 lb]
Loading dimensions:
1.33 m × 0.13 m [4.4 ft × 0.4 ft]
Height: 1.31 m to 1.56 m
(Adjustable) [4.3 ft to 5.1 ft]
Suitable for MAXI 120 S / 150 S
2
1
1a
1b
