GEDA MINI 60 S - Non-Twisting Device with Load Hook

Maintenance - Checking - Cleaning GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S
Assembly and Operating Manual 72 / 90 BL068 GB Edition 03/2015

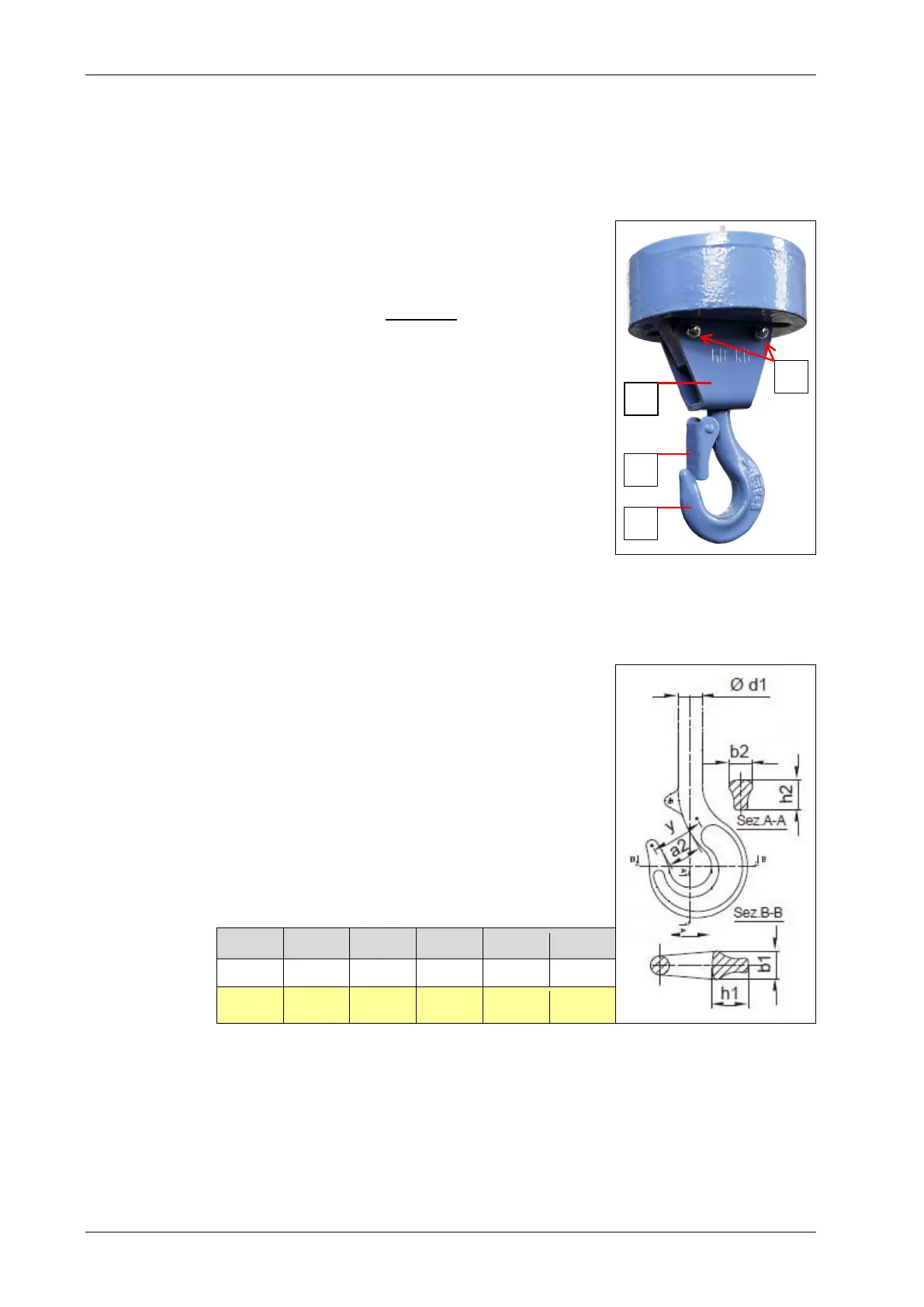

8.3.4 Non-twisting device with load hook
Check the non-twisting device with load hook for completeness, signs of
cracks, deformation and corrosion.
• The load hook (9) must rotate easily.

The non-twisting device must be attached
to the rope weight by bolts (7a).
Replace bolts with spring fastenings (from
earlier designs)!
• The rope wedge must be suitable for the
rope diameter (∅ = 4.5 mm [0.17 in]).
7 = Non-twisting device
• The hook aperture security (9a) must automatically, easily and com-
pletely close.
• Attachment (rivet) of the security must not be damaged.
The load hook must not indicate any serious
deformation in the hook aperture
- max. 10 % expansion.
- max. 5 % wear.
a2
b1
h1
b2
h2
d1
24 mm
19 mm
22 mm
15 mm
19 mm
16 mm
0.94 in
0.74 in
0.86 in
0.59 in
0.74 in
0.62 in
9
9a
7
7a
