GEDA MINI 60 S - Pivot Arm

Technical description GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S
Assembly and Operating Manual 42 / 90 BL068 GB Edition 03/2015

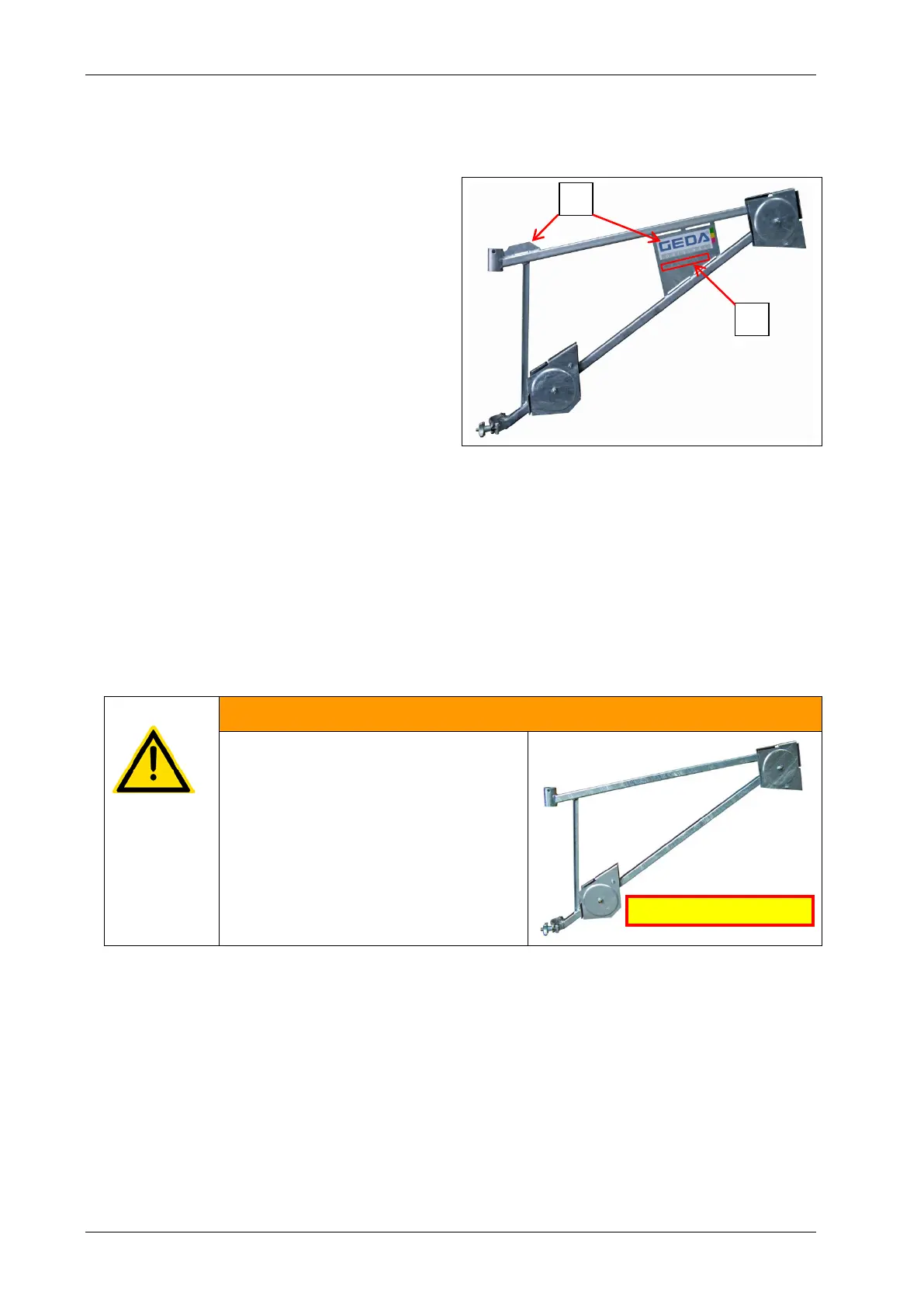

3.5.5 Pivot arm

Only the pivot arm with
reinforcement (1) (welded
gusset plate) is designed
for a bearing capacity of
150 kg (see also imprint
(2) on the pivot arm).
Load capacity
max. 150 kg [330 lb]
Weight
11.7 kg [26 lb]
Turning unit
(Pivot radius)
0.85 m [2.8 ft]
Dimensions
(length × width × height)
1.20 m × 0.70 m × 0.10 m
[3.9 ft × 2.3 ft × 0.3 ft]
WARNING
Danger to life
Pivot arm without reinforcement
Pivot arms of earlier manufactures
are without reinforcement (welded
gusset plate) and may be used
exclusively for the MINI 60 S.
1
2
Load capacity = max. 60 kg
