GEDA MINI 60 S - Securing loading and unloading points

Assembly GEDA
®
MINI 60 S / MAXI 120 S / MAXI 150 S
Assembly and Operating Manual 56 / 90 BL068 GB Edition 03/2015
5.4 Securing loading and unloading points
To prevent persons falling, fall protection must be installed at all loading
and unloading points where there is a risk of falling from a height of
more than 2 m [6.5 ft].
(Refer to national provisions)

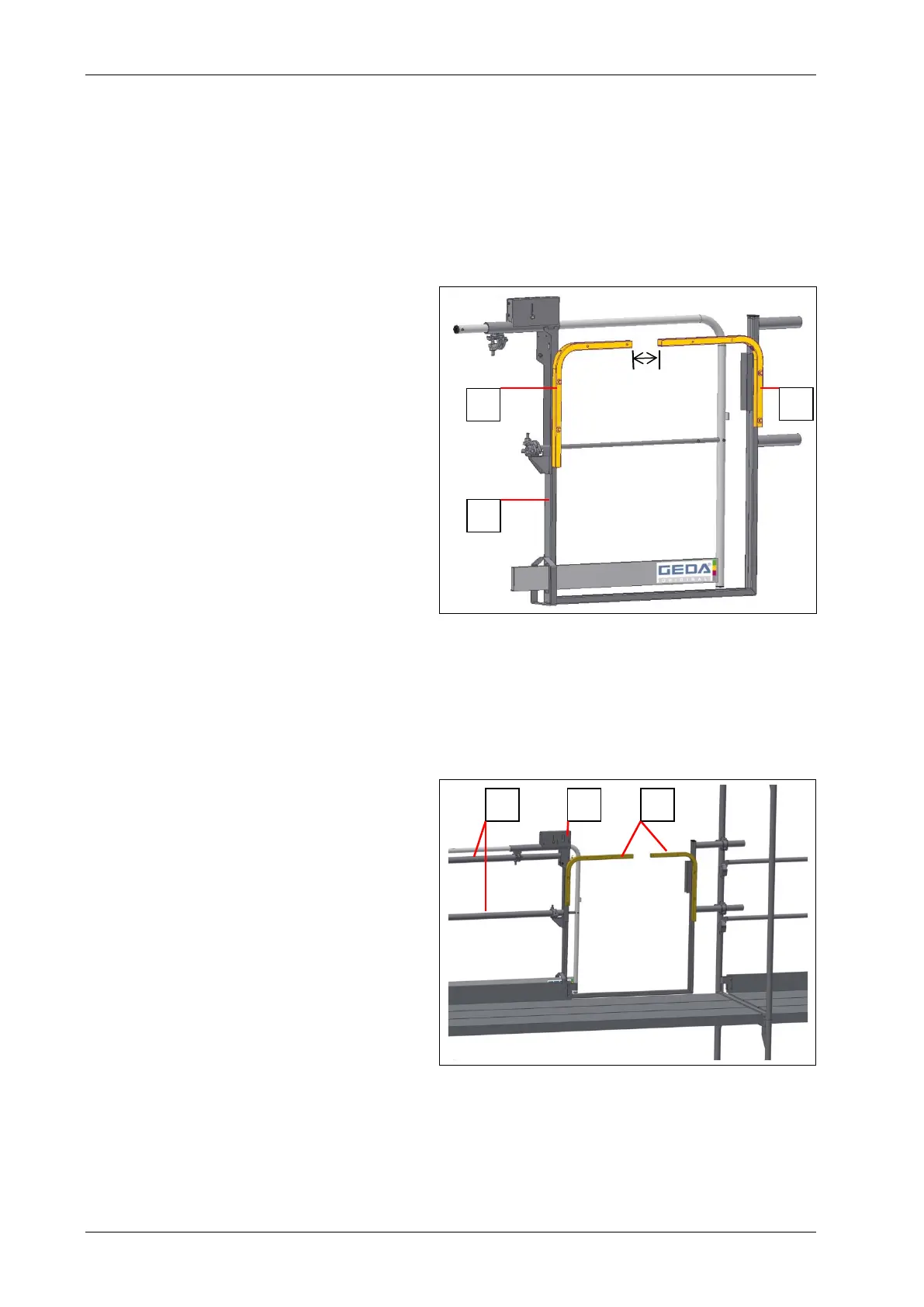

Landing-level safety gate “ECO S”
Item No. 42500
Width: 0.85 m [2.8 ft]
Weight: 22 kg [48 lb]
Aperture for rope: max. 0.15 m
[0.5 ft]
1 = Landing level safety gate
2 = Railing rope hoists

To adapt the aperture to the wire rope swivelled in, the railing of
the rope hoists (2) can be installed in two positions.
Assembly
 Put landing level safety gate (1) on scaffolding.
 Align so that the swivelled in rope is guided through the aperture of
the “railing rope hoists” (2).
 Attach the landing-
level safety gate to the
scaffolding using suit-
able attachment de-
vices (e.g. cross-
couplings / parallel
couplings).
For large scaffold section widths, it may also be necessary to install
a horizontal scaffolding pipe (3) to attach the gate.
1
2
max. 0.15 m
2
1
3
2
