MINI 60 S / MAXI 120 S / MAXI 150 S Assembly
BL068 GB Edition 03/2015 57 / 90 Assembly and Operating Manual
“Simple” loading point protection rails
Item No. 01206
Width: 1.4 m [4.6 ft]
Weight: 29 kg [64 lb]
5 = Safety gate
Assembly

Installation of the safety gate “Simple” to be carried out is de-
scribed in its own instructions supplied.

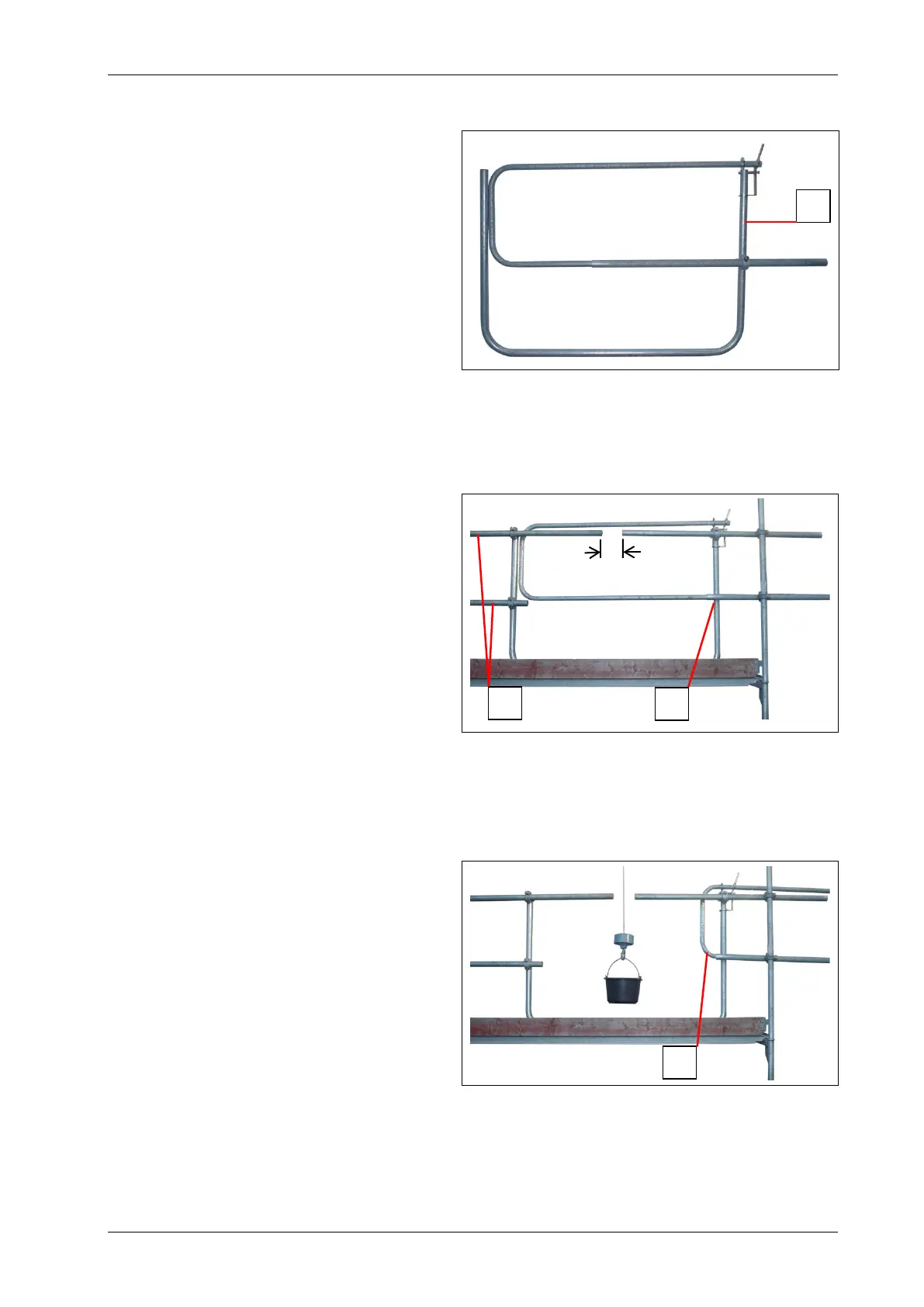

 Attach the landing-
level safety gate to the
scaffolding using suit-
able attachment de-
vices (e.g. cross-
couplings / parallel
couplings).
Aperture for rope: max. 0.15 m
[0.5 ft]
 Align the upper railing pipes so that when the rope is swivelled in, it is
guided through the aperture.
For large scaffold section widths, it may also be necessary to install
a horizontal scaffolding pipe (3) to attach the gate.
Push on the bar (5a)
when operating the scaf-
folding lift.
5
max. 0.15 m [0.5 ft]
5
3
5a
