Gefen EXT-MFP - Rack Tray Installation

page | 240
Appendix

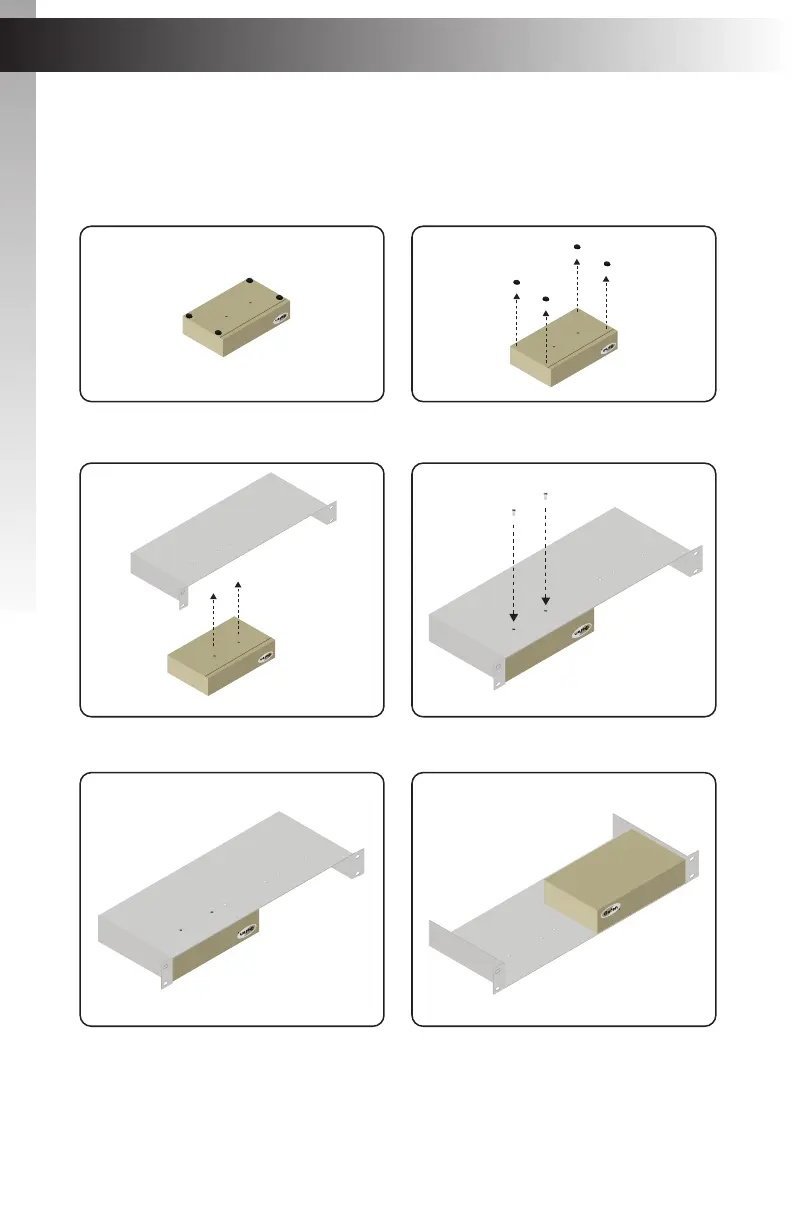

The following illustrations provide instructions for installing the Multi-Format Processor in
the Gefen 1U Rack Tray (Gefen part no. EXT-RACK-1U).
Step 1 Step 2
Step 3 Step 4
Step 5 Step 6
Turn unit upside down. Remove rubber feet.
Line up holes on unit and rack tray. Install countersink screws .
Ensure the unit is installed securely. Unit has been installed into rack tray.
