Basic OperationBasic Operation
Menu System

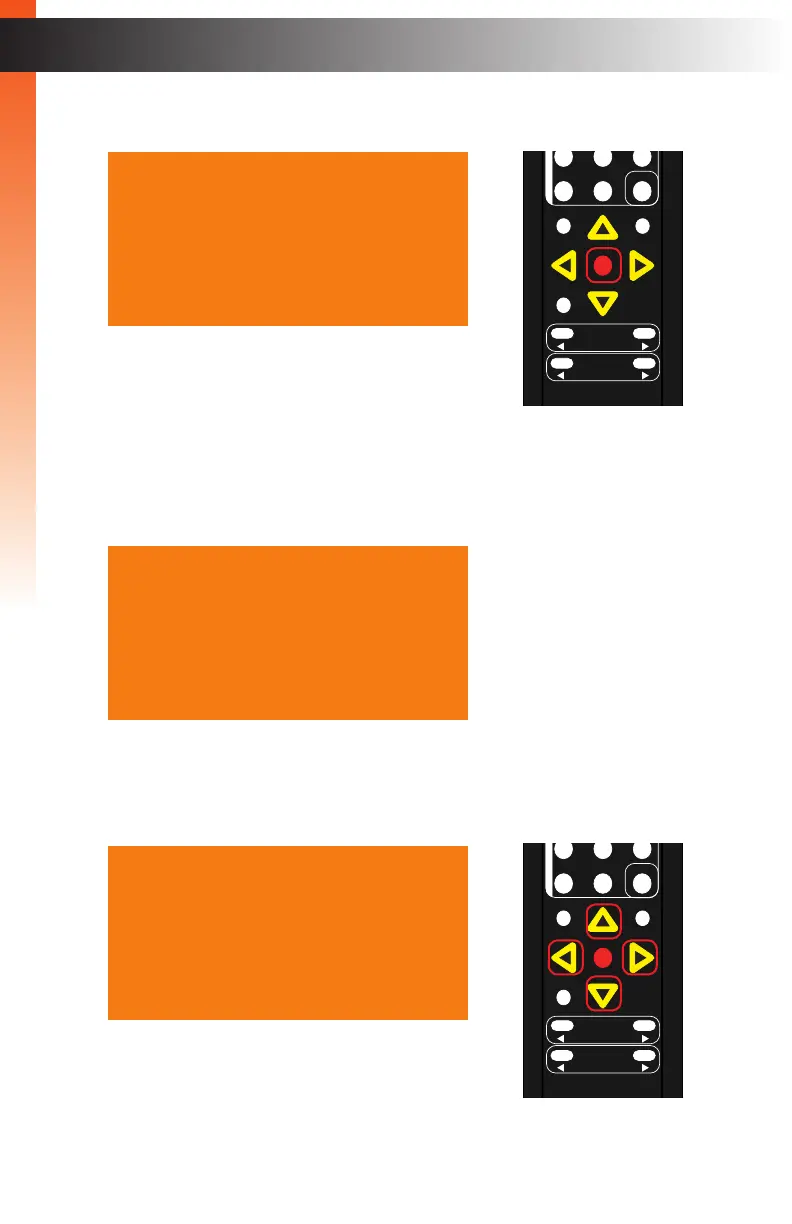

3. Press the OK button. The Auto Size option will be highlighted.
4. Press the ▲ or ▼ buttons to highlight the H Position option.
5. Press the OK button, again, to activate the H Position option.
6. The current horizontal position value will highlighted in red.
7. Press the ▲, ▼, ◄, or ► buttons to set the desired phase setting.
The range is: 0 - 100. Values less than 50 will shift the picture to the left.
Values greater than 50 will shift the picture to the right.
®
