page | 54
Basic OperationBasic Operation
Menu System
4. Press the ▲ or ▼ buttons to highlight the Aspect Ratio option.
5. Press the OK button, again, to activate the Aspect Ratio option.
6. The current value will highlighted in red.

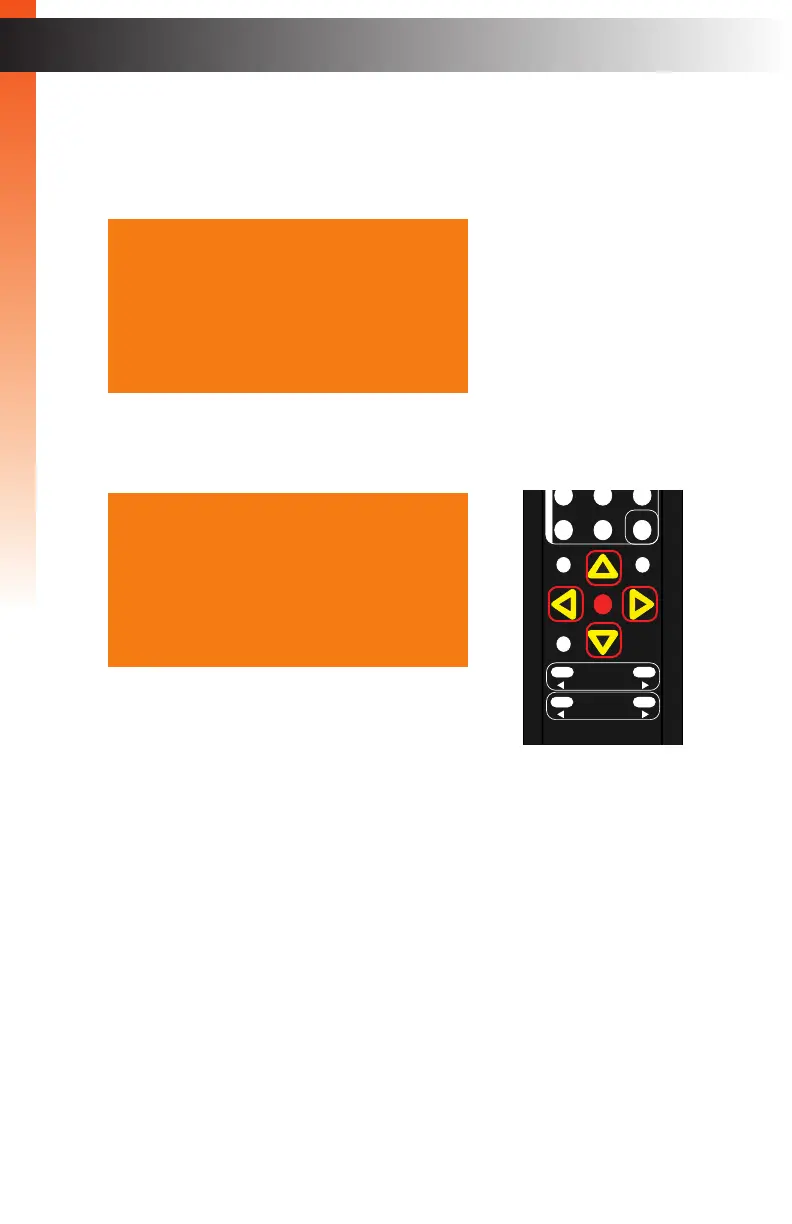

7. Press the ▲, ▼, ◄, or ► buttons to set the desired setting.
► Source
The output signal uses the same aspect ratio as the input signal.
This is the default setting.
► 16:9
Sets the aspect ratio to 16:9 format.
► 4:3
Sets the aspect ratio to 4:3 format. Depending upon the input signal and the
display that is used, applying this aspect ratio may cause a loss of up to 12%
in the output signal.
► Stretch
Pixels on the input signal are stretched to t the screen area of the display.
Auto Size
Phase 040
V Position 005
H Position 054
Under/Over Scan Off
Aspect Ratio Source
HDCP
Send HPD Pulse ---
Back
VGA Settings
Auto Size
Phase 040
V Position 005
H Position 054
Under/Over Scan Over2
Aspect Ratio 16:9
HDCP
Send HPD Pulse ---
Back
VGA Settings
®
RMT-MFP
OK
Resolution
Menu
Exit
L/R 1
Int
VGA
HDMI
Off On
DP DVI
Comp Mask
Optical Coaxial
L/R 2 Mute
Info
Vol -
Vol +
Aspect Ratio
Audio
Video
*Preferred
Basic Operation
