Ultra HD 600 MHz 4x4 Matrix w/HDR and Audio De-Embedder
4K 60 Hz 4:4:4, HDMI 2.0, HDCP 2.2
1 2 3 4 Off 1 2 3 4 Off 1 2 3 4 Off 1 2 3 4 Off
A B C
D
Reset Power
Out DOut COut BOut AIn 4In 3In 2In 1
LRP
Out A
Out B Out C
Out D
RS-232
IP Control
USB Power
EXT-UHD600A-44
IR In/Ext
L/R L/R L/R
L/R
24V DC
DS US DS US
USB
USB

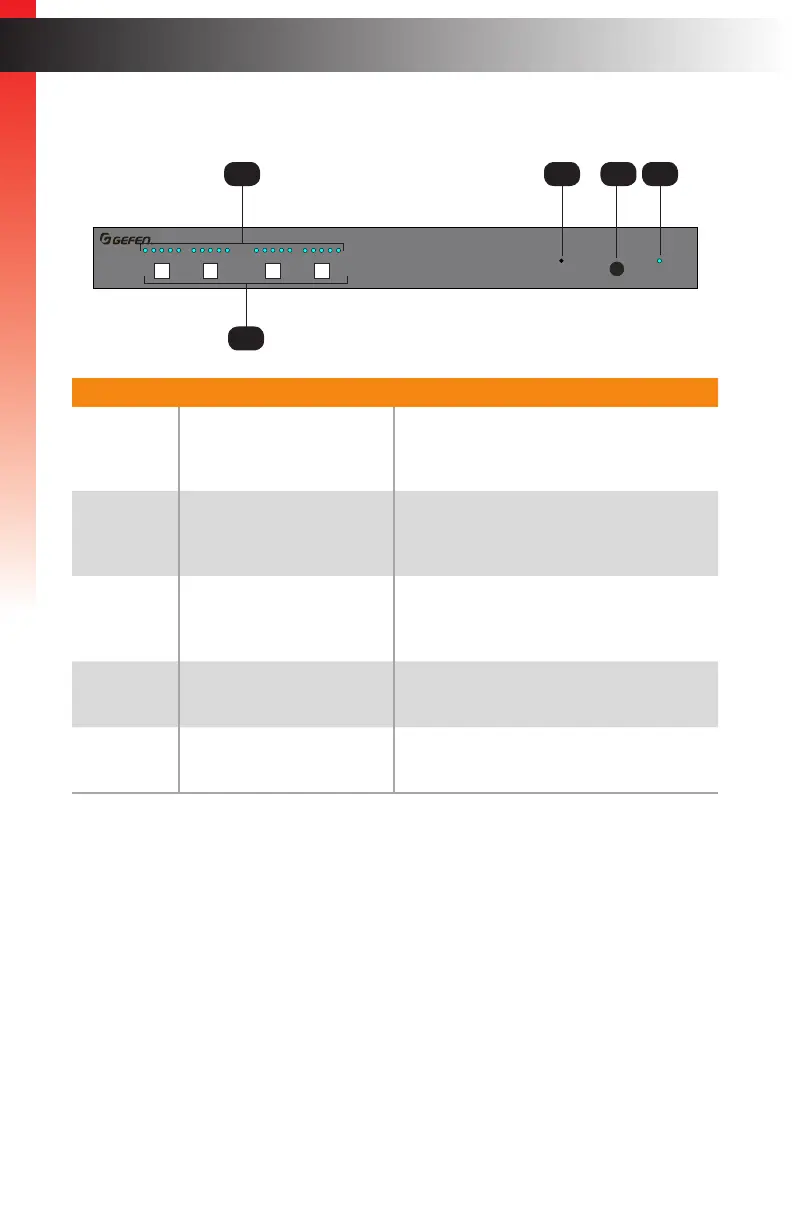

Front Panel
ID Name Description
1 Input indicators These blue LED indicators display the state
of each input. See Routing Inputs to Outputs
(page 16) for more information.
2 Output Selection Buttons
(A - D)
Press these buttons to select the desired
output. See Routing Inputs to Outputs (page
16) for more information.
3 Reset Press and hold this button for 10 seconds
and relaese to reset the matrix to factory-
default settings.
4 IR This IR sensor receives signals from the
included IR remote control unit.
5 Power This LED will glow bright blue when the
matrix is powered.
Introduction
Getting Started
Getting Started
2
51 3 4
