page | 24
Basic OperationBasic Operation
Introduction to the Web Interface
The Ultra HD 600 MHz 4x4 Matrix w/HDR and Audio De-Embedder includes a built-in
web interface. We recommend that the web interface be used to control the matrix as it
provides easy management of all features used by the matrix.

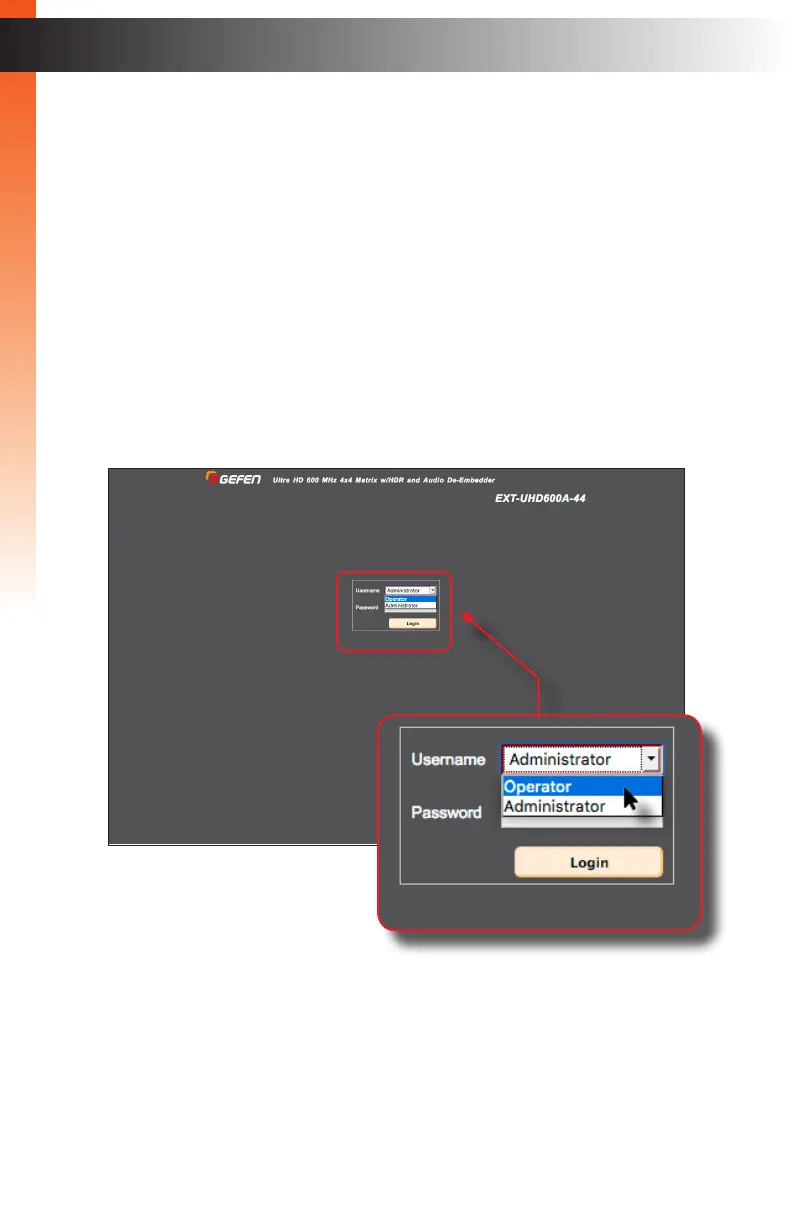

► Logging In
1. Launch your favorite web browser.
2. In the address bar, type the IP address of the matrix.
3. The login page will be displayed.
4. Select the user from the Username drop-down list.
• Operator
The Operator username provides restricted access to the web interface.
This username allows access to both the Routing and Status tabs,
locking / unlocking and powering on / off the matrix.
The default password for the Operator user name is Operator.
All passwords are case-sensitive. For information on changing
the default password, see Conguring Network Settings (page 52).
The Web Interface
Basic OperationBasic Operation
