page | 42
HDCP
This feature allows HDCP content to either be passed-through or rejected on each input.
Outputs can either follow the input status or can be set to always encode HDCP. Note that
using the “Reject” feature, on an input, does not decrypt HDCP content.

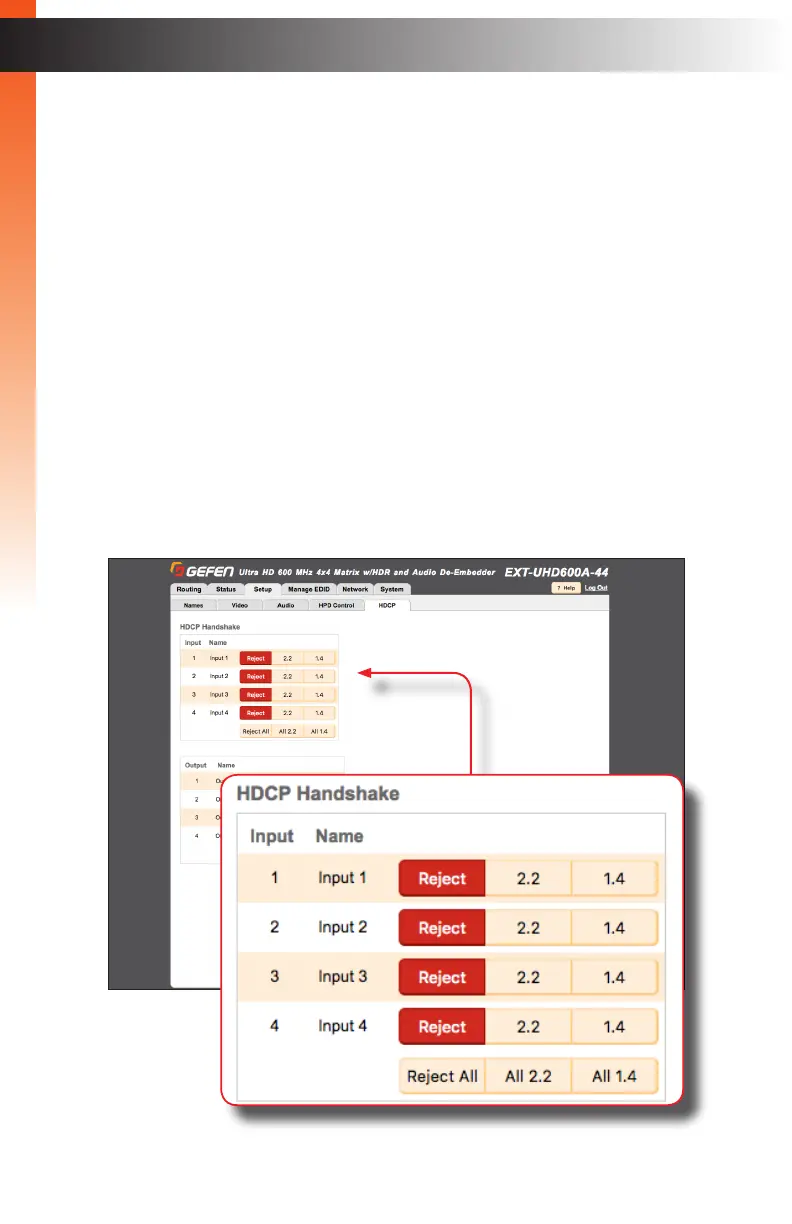

1. Click the Setup tab within the built-in web interface.
2. Click the HDCP sub-tab.
3. For inputs, select the desired button next to the input.
► Reject - Does not allow HDCP content to be passed through. Click the
Reject All button to set all inputs to Reject.
► 2.2 - Click this button if the sink device supports HDCP 2.2. Click the
All 2.2 button to set all inputs to 2.2.
► 1.4 - Click this button if the sink device only supports HDCP 1.4. Click the
All 1.4 button to set all inputs to 1.4.
