When masking outputs through the front panel, the IR remote control must be used.
Outputs can also be masked by using the built-in web interface. See Routing Inputs and
Masking Outputs (page 31) for more information.
When an output is masked, the signal is blocked at the output. For example, if Input 2
is routed to Output A, Output B, and Output C. If Output B is masked, then only the A/V
signal on Output B will be blocked. Output A and Output C will remain unaffected.
1. Press the Mask button on the IR remote. This will cause all the output buttons (A, B,
C, D), on the front panel of the matrix, to start ashing.
2. Press the desired output button on the IR remote to be masked/unmasked.
The associated output button, on the front panel of the matrix, will illuminate for
approximately one second, and then exit mask mode.
The matrix will wait approximately three seconds for a response from the IR remote.
If no mask operation takes place, or if any other button on the IR remote is pressed,
then the matrix will exit mask mode.
3. To unmask a masked output, repeat the above steps.
Basic OperationBasic Operation
Masking / Unmasking Outputs
Output
RMT-44A
Down
Up
OFF1
3
Input
4
2
Preset
Mask
Lock
A B
C D
Mute
Volume

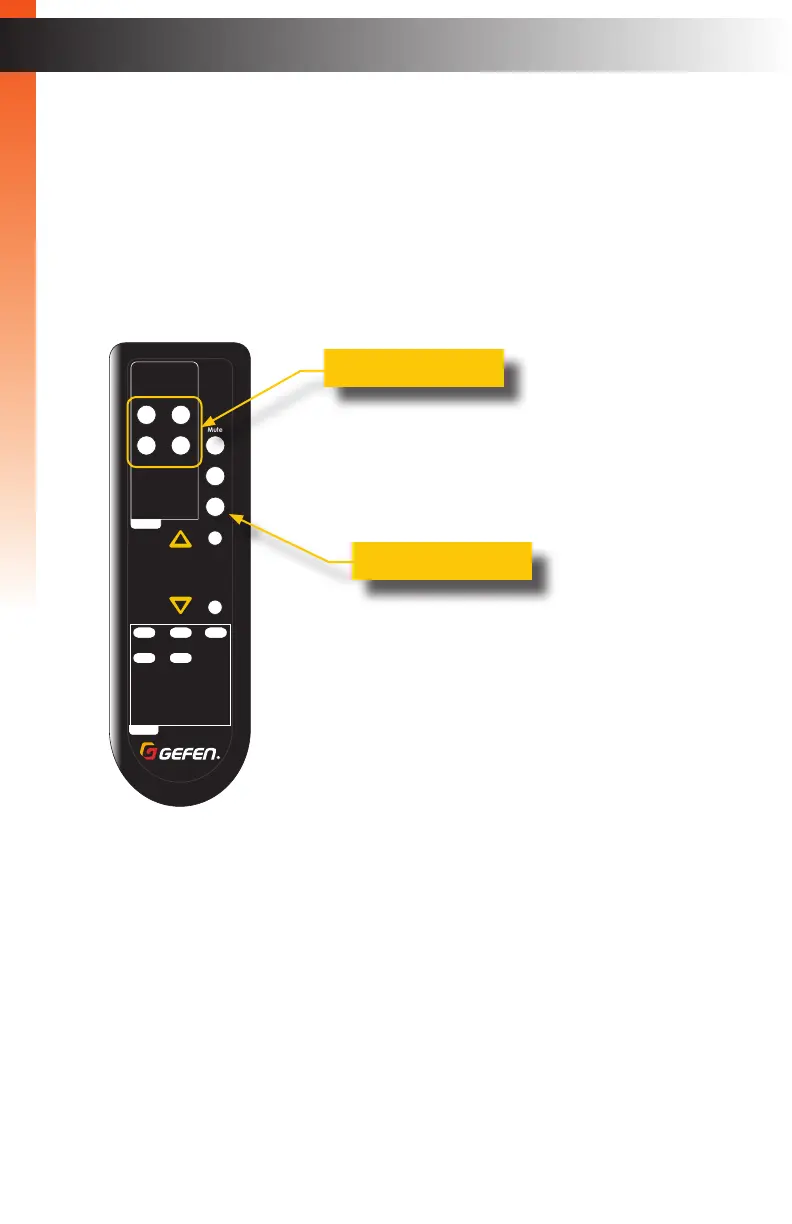

Output buttons
Mask button
