Routing presets can be recalled using the IR remote control. For information on creating
presets, see Routing Presets (page 34).
1. Press the Preset button on the IR remote control. This will cause all the output
buttons (A, B, C, D), on the front panel of the matrix, to start ashing.
2. Use the desired Input button, from the bottom-portion of the IR remote control,
to select the desired preset. Note that only presets 1 through 4 can be recalled using
the IR remote control. To access all 16 presets, use the built-in web interface. See
Routing Presets (page 34) for more information. Once the preset is selected, the
associated output button, on the front panel of the matrix, will illuminate to indicate
which preset was selected.
The matrix will wait approximately three seconds for a response from the IR remote.
If no mask operation takes place, or if any other button on the IR remote is pressed,
then the matrix will exit the preset-selection mode.
3. The preset is now loaded and the routing state, stored in the preset, will be applied to
the matrix.
Basic OperationBasic Operation
Routing Presets
Output
RMT-44A
Down
Up
OFF1
3
Input
4
2
Preset
Mask
Lock
A B
C D
Mute
Volume

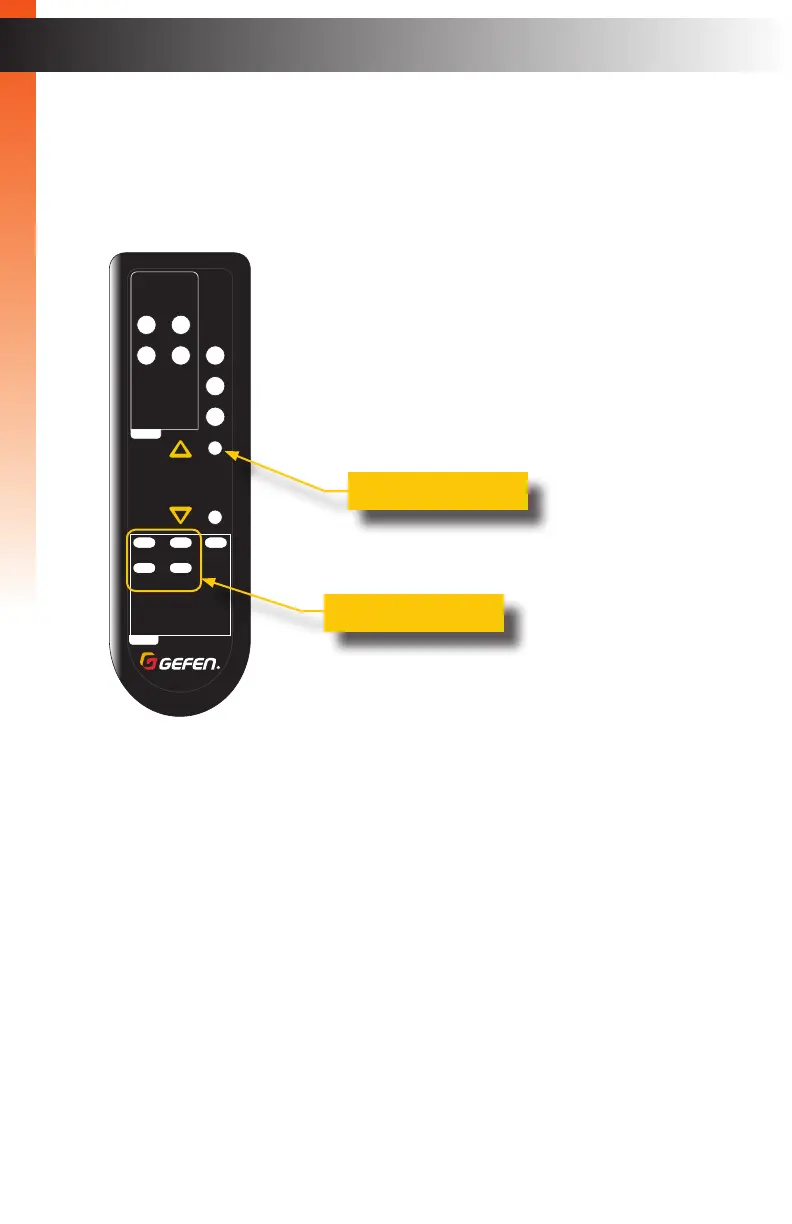

Preset button
