Introduction
Getting Started

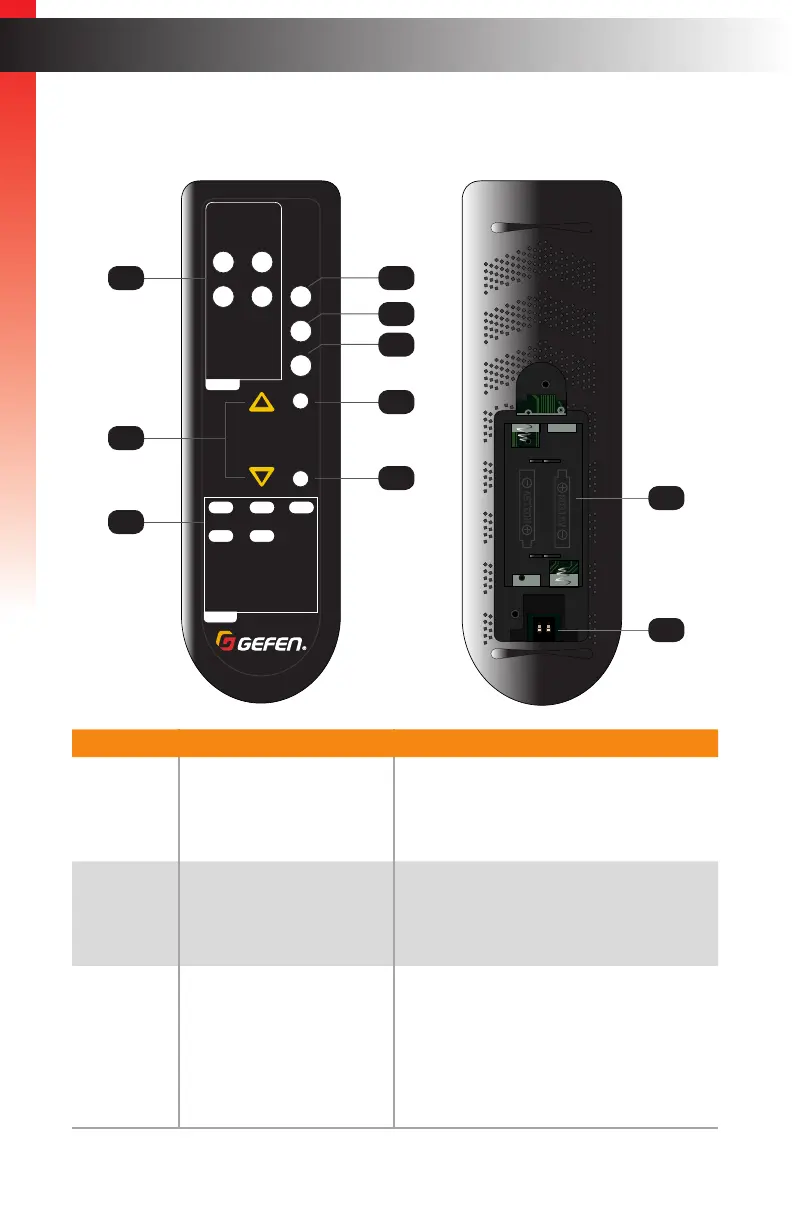

IR Remote Control
ID Name Description
1 Output buttons (A - D) Press these buttons to select the desired
input when performing routing operations.
Each button corresponds to an Out port
(A - D) on the rear panel of the matrix.
2 ▲, ▼ Press these buttons to increase or
decrease the output volume. See
Increasing / Decreasing Volume (page
21) for more information.
3 Input buttons (1 - 4) Press these buttons to select the desired
input when performing routing operations.
Each button corresponds to an In port
(1 - 4) on the rear panel of the matrix.
Press the Off button to set the input to the
Off state, to simulate a source that is not
connected.
Output
RMT-44A
Down
Up
OFF1
3
Input
4
2
Preset
Mask
Lock
A B
C D
Mute
Volume
Output
RMT-44A
Down
Up
OFF1
3
Input
4
2
Preset
Mask
Lock
A B
C D
Mute
Volume
R03,1.5V
R03,1.5V
ON
1 2
6
7
8
4
5
10
9
2
1
3
