page | 51
Basic Operation
The Web Interface
► Uploading an EDID
1. Click the Manage EDID tab within the built-in web interface.
2. Click the Upload/Download tab.
3. Set the input, where the EDID le will be uploaded, to Custom mode.
See Setting the EDID Mode (page 44) for more information.
4. Click the Browse... button under Upload EDID section.
5. The File Upload dialog will be displayed.
6. Select the EDID le from your computer. The EDID le must be in .bin format.
After the le is selected, click the OK button on the dialog box.

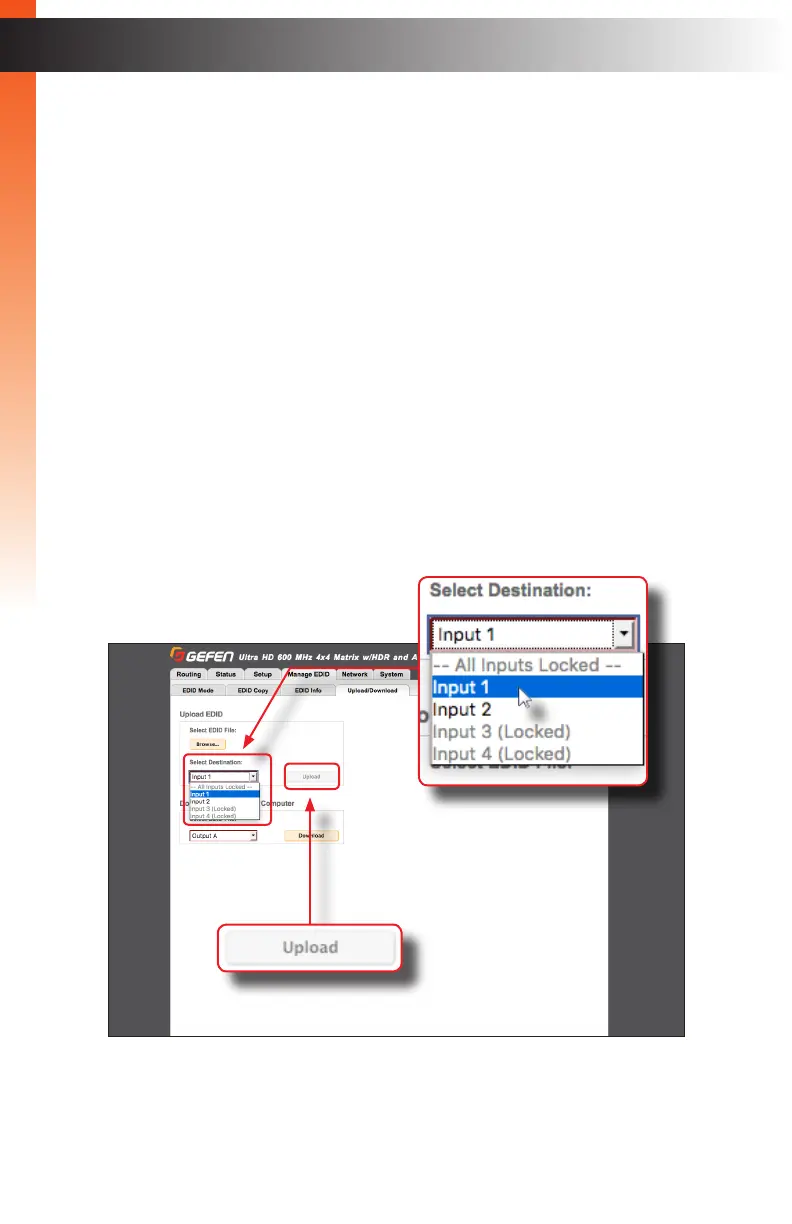

7. Select the input where the EDID will be uploaded using the Select
Destination drop-down list. In order for an input to be selected, it must be
unlocked and set to Custom. Refer to Setting the EDID Mode (page 44) for
more information.
8. Click the Upload button.
