ADV100 • Functions description and parameters list 53

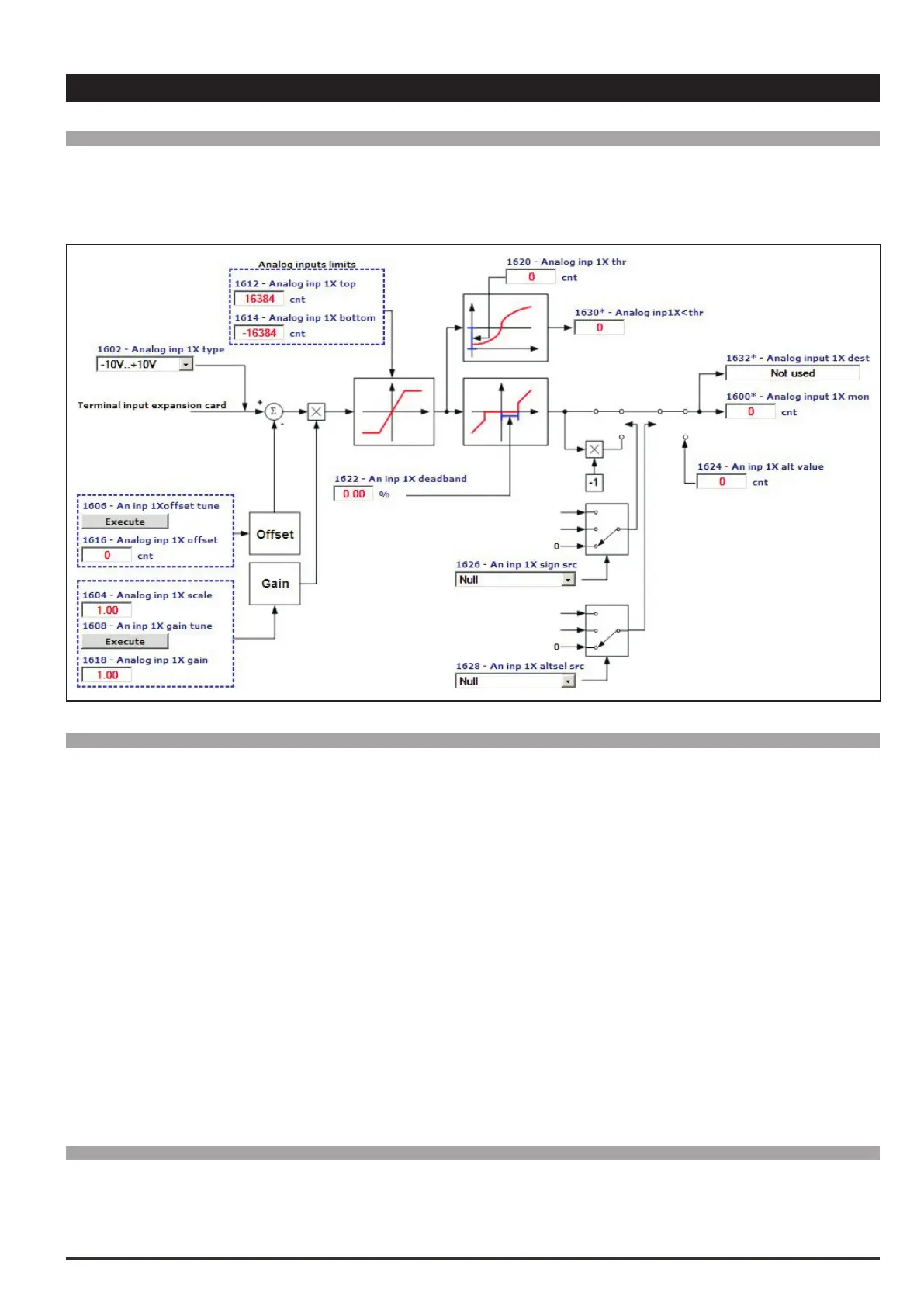

14–ANALOGINPUTS
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.1 1600 Analoginput1Xmon cnt INT16 16/32 0 0 0 R FVS
14.16 1650 Analoginput2Xmon cnt INT16 16/32 0 0 0 R FVS
The value of the voltage output of the function block of the relative analog input is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.2 1602 Analoginp1Xtype ENUM -10V..+10V 0 2 RW FVS
14.17 1652 Analoginp2Xtype ENUM -10V..+10V 0 2 RW FVS
Selection of the type of expansion card input (voltage or current input). Depending on the input signal, move the
switches on the regulation card. Standard inputs are coded for voltage signals.
0 -10V…+10V
1 0,20mA … 10V
2 4..20mA
Select option 0 in order to connect a maximum voltage of ±12.5V (typically ±10V/5mA) to the analog input con-
cerned. If the signal is used as a reference, reverse the direction of rotation of the drive by inverting the voltage
polarity.
Select option 1 to connect a max voltage of 12.5V (typically 10V/5mA) or a signal in current from 0 ... 20 mA to the
analog input concerned. The signal must be positive.
Select option 2 to connect a current signal of 4...20 mA to the analog input concerned. The signal must be positive.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.3 1604 Analoginp1Xscale FLOAT 1.0 -10.0 10.0 RW FVS
14.18 1654 Analoginp2Xscale FLOAT 1.0 -10.0 10.0 RW FVS
Setting of a multiplier factor to apply to the relative analog input of the expansion card.
