ADV100 • Functions description and parameters list 77

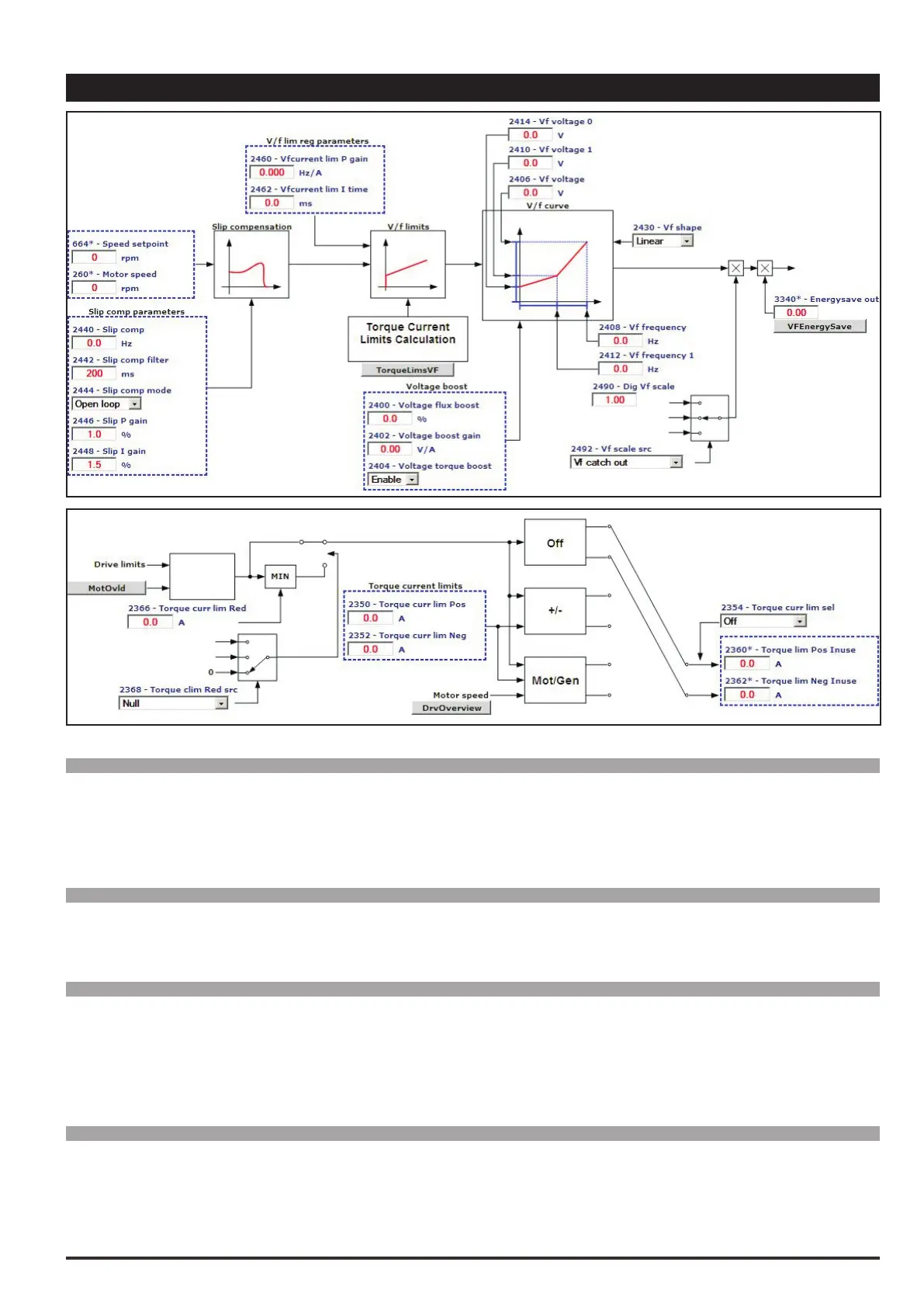

21–FVPARAMETERS
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.1 2400 Voltagefluxboost perc FLOAT 2.0 0.0 15.0 RWS V
Setting of the boost voltage. The resistive impedance of the stator windings causes a voltage drop within the mo-
tor, which results in a reduction in torque in the lower speed range. This effect can be compensated by boosting the
output voltage. If self-tuning is performed, the boost value is calculated automatically.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.2 2402 Voltageboostgain V/A FLOAT CALCF 0.0 0.0 ERWS V
Manual setting of the voltage boost gain to apply to the motor terminals for the set V/f characteristic curve.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.3 2404 Voltagetorqueboost ENUM Enable 0 1 ERWZ V
Enables vector torque compensation. For pure V/f control, disable this parameter.
0 Disable
1 Enable
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.4 2406 Vfvoltage V FLOAT CALCF 10.0 690.0
ERWZS
V
Setting of the maximum voltage value to be applied at the motor terminals (usually set according to the motor data plate).
