20 ADV100 • Functions description and parameters list

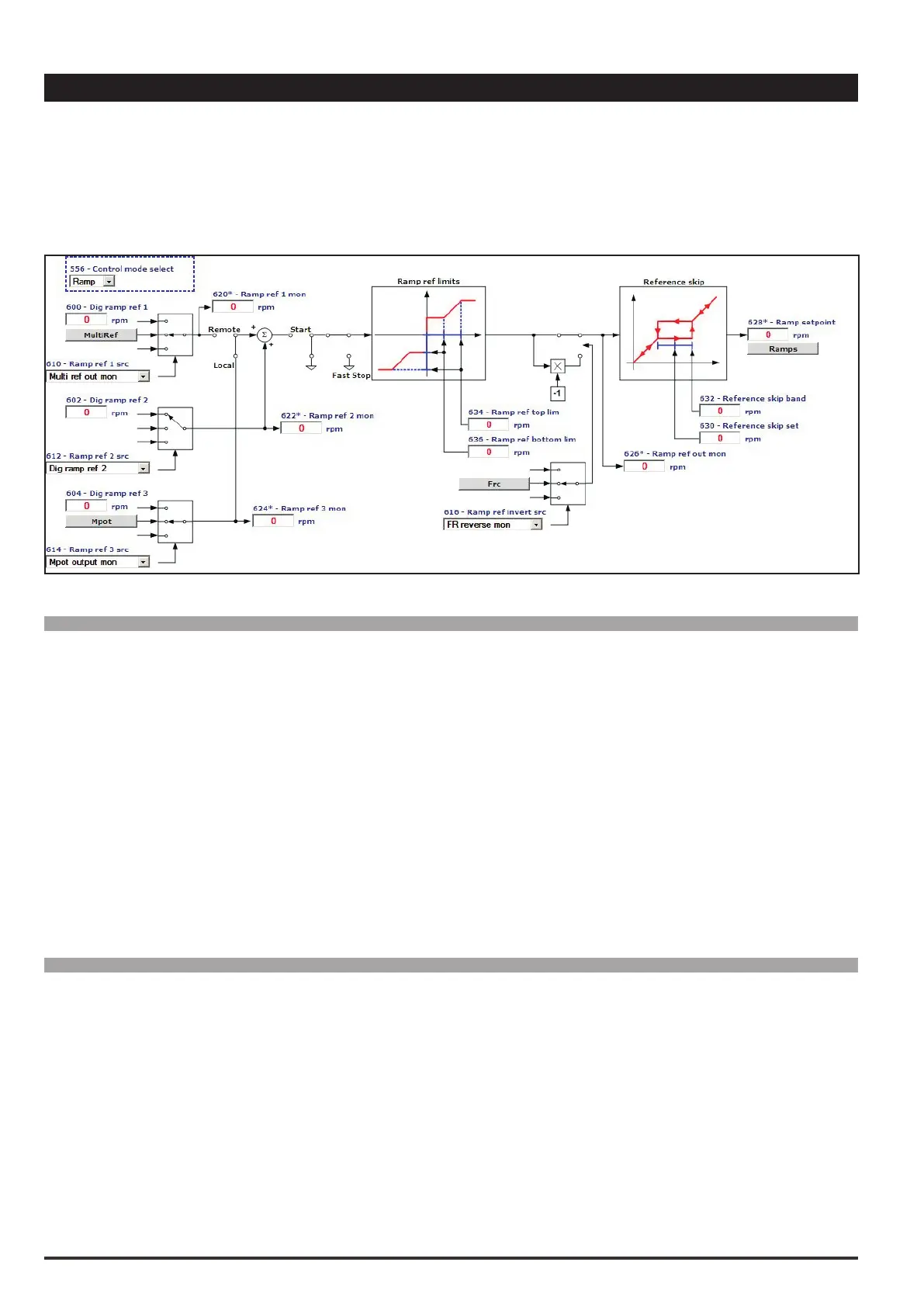

5–REFERENCES
ADV drives are provided with a speed regulation circuit, which can be adapted to suit the various applications. In the
standard version, the regulator has PI behaviour and the regulator parameters are the same for the entire eld of regu-
lation.
Different sources can be used for the speed and torque references, depending on how the 552Controlmodeselect
parameter is set.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.1 600 Digrampref1 rpm INT16 16/32 0 CALCI CALCI RW FVS
Setting of the digital ramp reference. The speed that the drive must reach after completing the acceleration phase
is set with the ramp reference. Variations in the ramp reference are made with the selected ramp times. The size of
the ramp reference determines the motor speed value. The sign determines the direction of rotation. The Rampref
parameter also refers to a minimum speed, if set. When the “Motorpotentiometer” or “Multispeed” functions are
selected the relative references are used. This reference can only be used in the Remote mode.
The overall ramp reference is the result of the sum of the values with the Rampref1 and Rampref2 sign.
Example 1: Rampref1 = + 500 rpm Rampref2= + 300 rpm
Rampref= 500 rpm + 300 rpm = 800 rpm
Example 2: Rampref1 = + 400 rpm Rampref2 = - 600 rpm
Rampref = 400 rpm – 600 rpm = - 200 rpm
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
5.2 602 Digrampref2 rpm INT16 16/32 0 CALCI CALCI ERW FVS
Setting of the digital ramp reference. The speed that the drive must reach after completing the acceleration phase
is set with the ramp reference. Variations in the ramp reference are made with the selected ramp times. The size of
the ramp reference determines the motor speed value. The sign determines the direction of rotation. The Rampref
parameter also refers to a minimum speed, if set. When the “Motorpotentiometer” or “Multispeed” functions are
selected the relative references are used.
In Remote mode the overall ramp reference is the result of the sum of the values with the Ramp ref 1 and Ramp ref
2 sign.
Example 1: Rampref1 = + 500 rpm Rampref2 = + 300 rpm
Rampref = 500 rpm + 300 rpm = 800 rpm
