52 ADV100 • Functions description and parameters list
13–DIGITALOUTPUTS
Note: The numbering and description of the following parameters may change if an MDPLc application is active.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
13.1 1410 Digoutput1Xsrc LINK 16 1062 0 16384 RW FVS
13.2 1412 Digoutput2Xsrc LINK 16 1064 0 16384 RW FVS
13.3 1414 Digoutput3Xsrc LINK 16 946 0 16384 RW FVS
13.4 1416 Digoutput4Xsrc LINK 16 936 0 16384 RW FVS

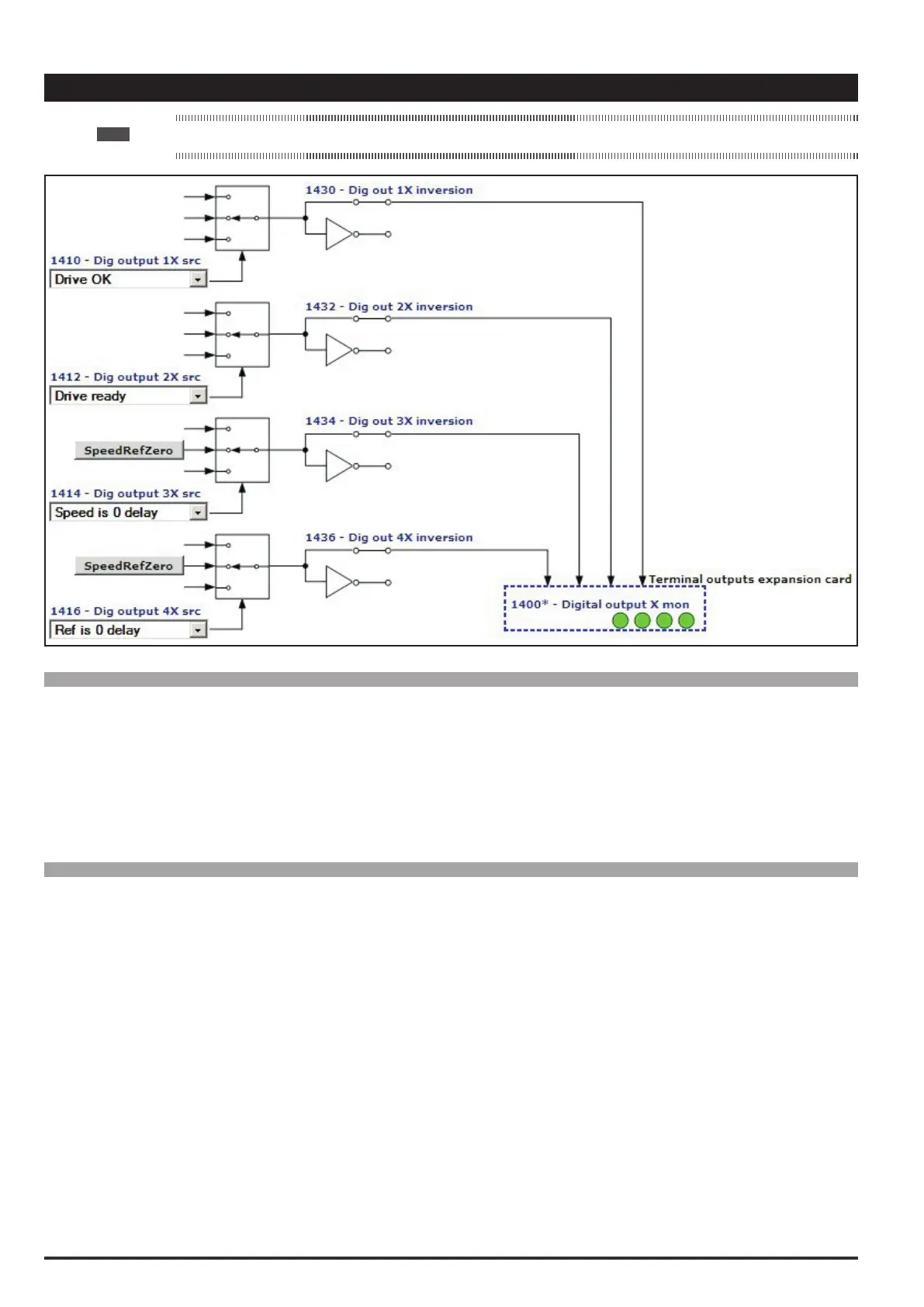

Selection of the origin (source) of the signal to be assigned to the relative digital output of the expansion card. The
functions that can be associated with the digital outputs are listed in the “L_DIGSEL1” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
13.5 1430 Digout1Xinversion BIT 0 0 1 RW FVS
13.6 1432 Digout2Xinversion BIT 0 0 1 RW FVS
13.7 1434 Digout3Xinversion BIT 0 0 1 RW FVS
13.8 1436 Digout4Xinversion BIT 0 0 1 RW FVS
Reversal of the logic status of the function associated with the digital output of the expansion card.
