60 ADV100 • Functions description and parameters list
16–MOTORDATA
From this menu you can enter the motor plate data and “basic” values for the voltage/frequency characteristics. It is
important to enter the correct data in order to optimize drive operation and that of the application as a whole. These
data are required in order to obtain:
a) Computation of the normalization factors necessary for regulation
b) Computation of the estimated values for the motor parameters necessary for regulation
Rated voltage, Rated speed, Rated frequency, Rated current, Cos phi, Basic voltage and Basic frequency must be en-
tered (the Cos phi default value can be used if this value it not present on the plate). After entering these parameters,
send a Take motor par command to calculate (a) and (b) above. The motor cannot be enabled until the Take motor
par command has been set. If some results are inconsistent, or if the motor is much smaller than the inverter, an error
message is displayed indicating a numerical capacity overow and the previous set of parameters is restored in the
“Mot plate data” sub-menu.
P.2006 P.2000 P.2002
P.2012
P.2006 P.2000 P.2002
P.2012
3 kW
Motor: 3 phase
1420 rpm
Motor & Co.
Type: ABCDE
400 V
IP54
Made in ..............
6.7 A
IEC 34-1 / VDE 0530
Iso Kl F
Nr
.
12345-91
S1
50 Hz
Power factor
0.8
I nom
Rated voltage
Rated power
Rated speed (n )
N
2 Hp
Motor: 3 phase
1750 rpm
Motor & Co.
Type: ABCDE
575 V
IP54
Made in ..............
2 A
IEC 34-1 / VDE 0530
Iso Kl F
Nr
.
12345-91
S1
60 Hz
Power factor
0.83
I nom
Rated voltage
Rated power
Rated speed (n )
N
Efficiency
86.5

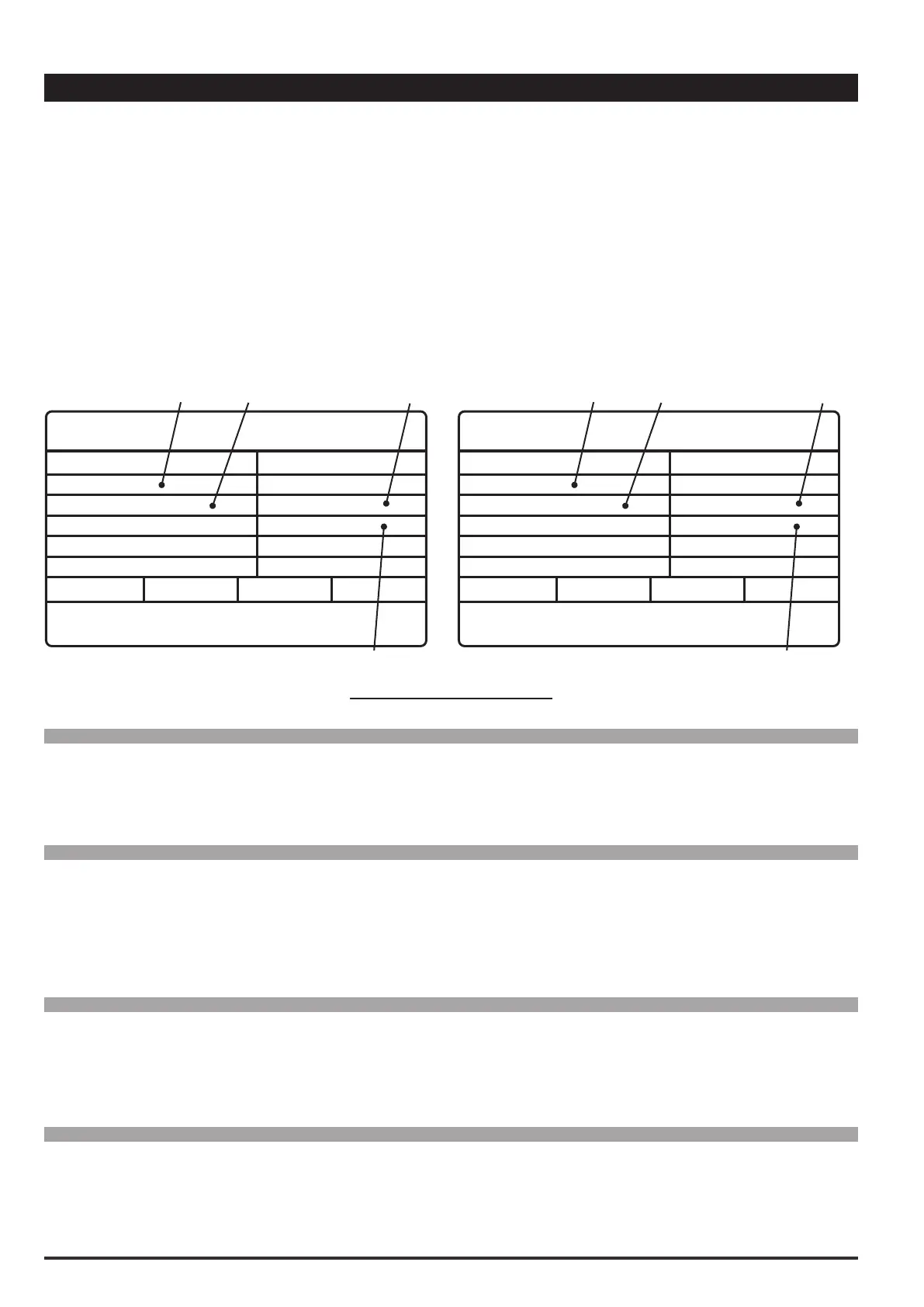

kW and HP motor data plates
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.1 2000 Ratedvoltage V FLOAT SIZE 50.0 690.0 RWZS FVS
Set the motor rated voltage as indicated on the data plate. This is the voltage the drive must supply
at the motor rated frequency.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.2 2002 Ratedcurrent A FLOAT SIZE 1.0 2200.0 RWZS FVS
The motor rated current at its rated power (kW / Hp) and voltage (indicated on the motor data plate).
If using a single drive to control several motors connected in parallel (only possible in the V/f mode), enter a value
that corresponds to the sum of the rated currents of all the motors; in this case do not perform any self-tuning opera-
tions.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.3 2004 Ratedspeed rpm FLOAT SIZE 10.0 32000.0 RWZS FVS
Rated speed of the motor with full load in rpm (rpm = m-1). In some motors the synchronous speed (e.g. 1500 rpm
for a 4-pole motor) and slippage, i.e. the loss of revolutions between the motor idling condition and the rated load
condition (e.g. 80 rpm), is indicated. Enter the following: synchronous speed - slippage.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
16.4 2006 Ratedfrequency Hz FLOAT SIZE 10.0 1000.0 RWZS FVS
Rated frequency of the motor expressed in Hz, at which the ux weakening range starts.
