98 ADV100 • Functions description and parameters list
22.7–FUNCTIONS/PADS

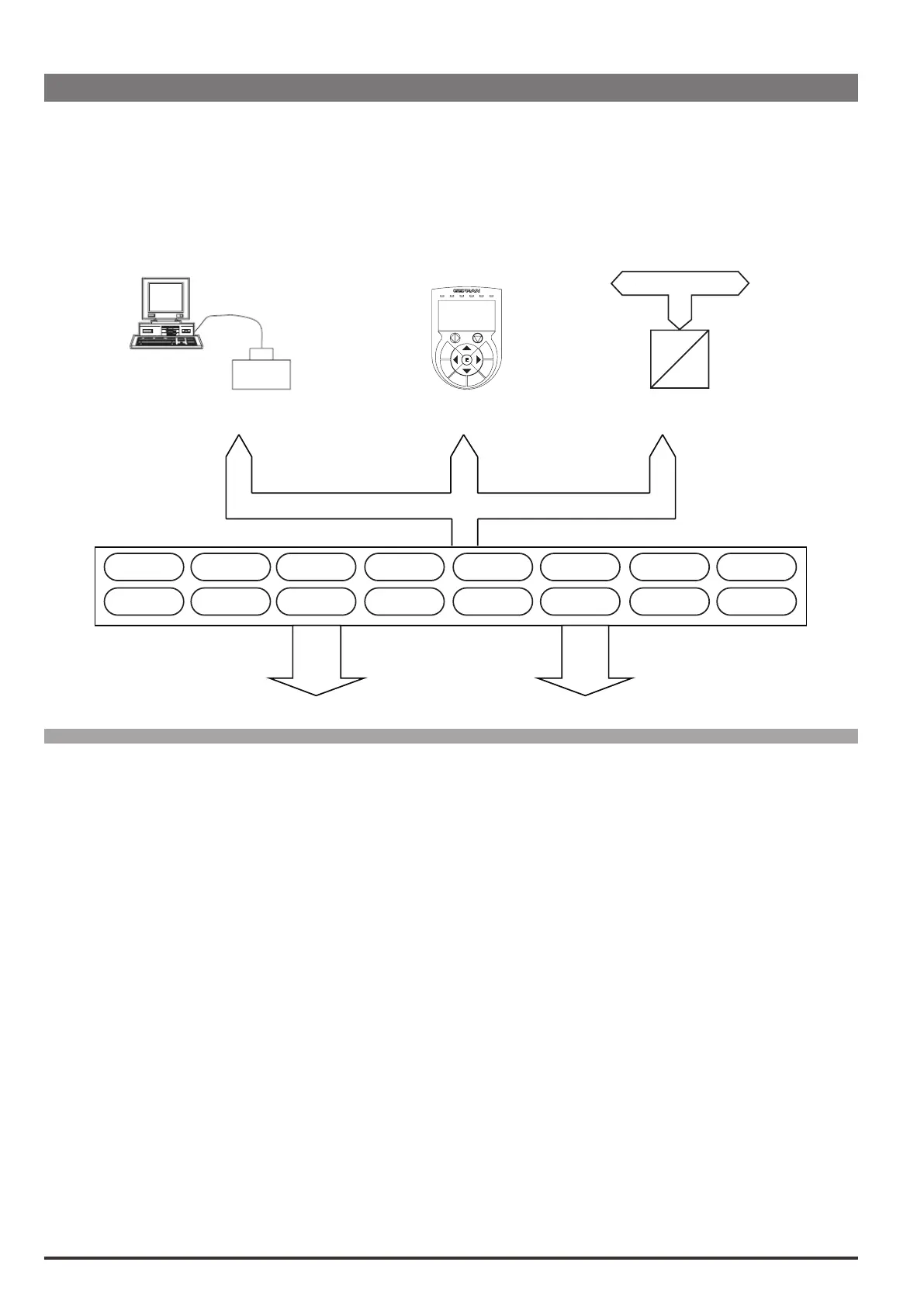

The general variables are used to exchange data between the various components of a Bus system. They are similar
to the variables of a PLC. The basic structure of the system is illustrated below. Pads can be used, for example, to
send information from a eldbus to an optional card. All Pads can be read and written.
The Pads can also be used to exchange data with an MDPlc application installed in the drive. See the MDPlc manual
for more details.
PAD 1
0
PAD 2
0
PAD 3
0
PAD 4
0
PAD 5
0
PAD 6
0
PAD 7
0
PAD 8
0
PAD 9
0
PAD 10
0
PAD 11
0
PAD 12
0
PAD 13
0
PAD 14
0
PAD 15
0
PAD 16
0
ANALOG
OUTPUTS
DIGITAL
OUTPUTS
Options (Bus Interface ...)
CANopen, DEVICENET, etc.
KeypadRS 232
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.7.1 3700 Pad1 INT32 32 0 0 0 ERW FVS
22.7.2 3702 Pad2 INT32 32 0 0 0 ERW FVS
22.7.3 3704 Pad3 INT32 32 0 0 0 ERW FVS
22.7.4 3706 Pad4 INT32 32 0 0 0 ERW FVS
22.7.5 3708 Pad5 INT32 32 0 0 0 ERW FVS
22.7.6 3710 Pad6 INT32 32 0 0 0 ERW FVS
22.7.7 3712 Pad7 INT32 32 0 0 0 ERW FVS
22.7.8 3714 Pad8 INT32 32 0 0 0 ERW FVS
22.7.9 3716 Pad9 INT32 32 0 0 0 ERW FVS
22.7.10 3718 Pad10 INT32 32 0 0 0 ERW FVS
22.7.11 3720 Pad11 INT32 32 0 0 0 ERW FVS
22.7.12 3722 Pad12 INT32 32 0 0 0 ERW FVS
22.7.13 3724 Pad13 INT32 32 0 0 0 ERW FVS
22.7.14 3726 Pad14 INT32 32 0 0 0 ERW FVS
22.7.15 3728 Pad15 INT32 32 0 0 0 ERW FVS
22.7.16 3730 Pad16 INT32 32 0 0 0 ERW FVS
Setting of general, 32 Bit variables. PAD parameters can be used as supporting parameters to send values written
by the eldbus, serial line, etc. to analog or digital outputs.
